Waterway Power Defender 110 In-Ground Pool Pump 1.10HP PD-110 Parts & Diagram

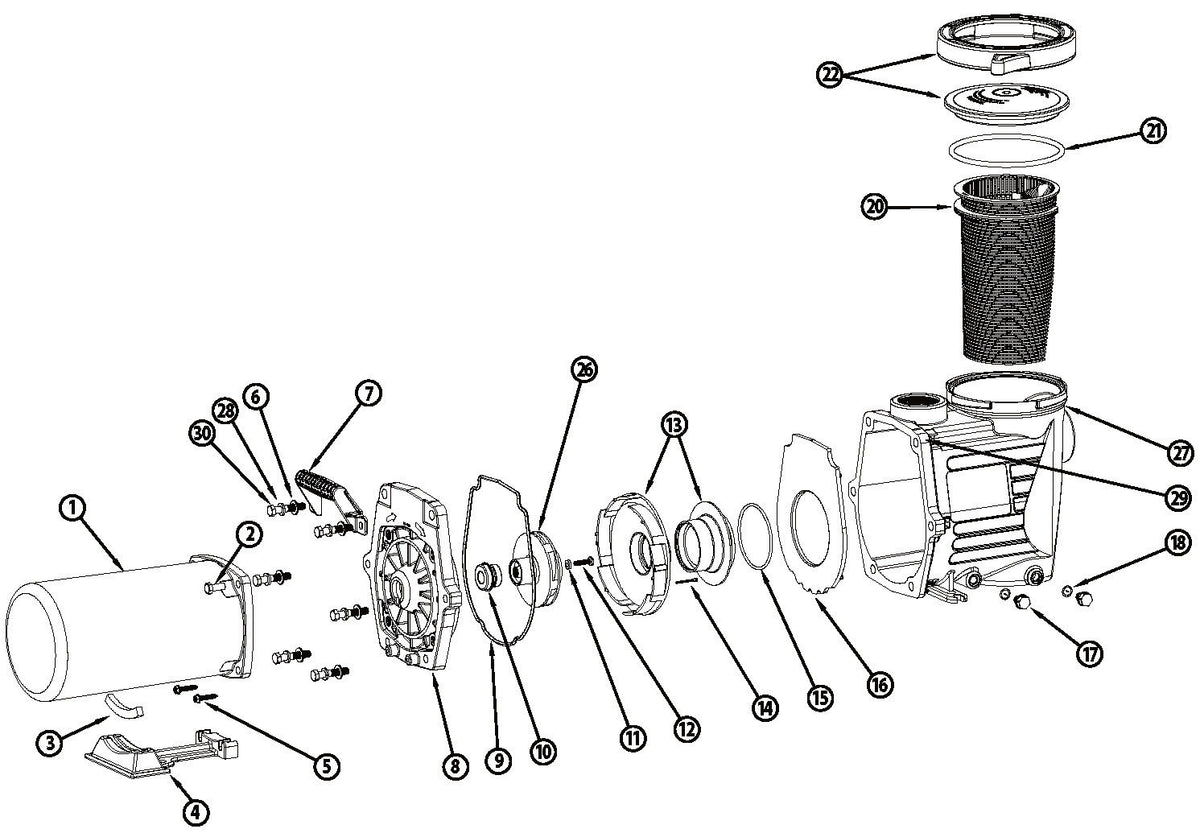

Replacement parts and exploded parts diagram for the Waterway Power Defender 110 In-Ground Pool Pump 1.10HP (model PD-110). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #6 – 820-0017 – 3/8" Flat Washer Type B, Pool Pumps
- #7 – 319-1700 – Handle
- #11 – 711-4300 – Washer, Impeller
- #18 – 805-0112 – O-Ring, -014
- #20 – 319-1430 – Basket Assy
- #21 – 805-0436 – O-Ring, 6" Trap Lid
- #27 – 315-1400 – Pump Housing - 2" X 2" NPT
- #30 – 819-0016 – 3/8"-16 X 2" Lg Hex Head
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-PD-110
Brand: Waterway
Price range
$4.77 - $130.19
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Waterway Power Defender 110 In-Ground Pool Pump 1.10HP (model PD-110)
- 19 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Waterway parts plus compatible alternates
- Add multiple parts to your cart at once
