Waterway 150 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP 520-5167-6S Parts & Diagram

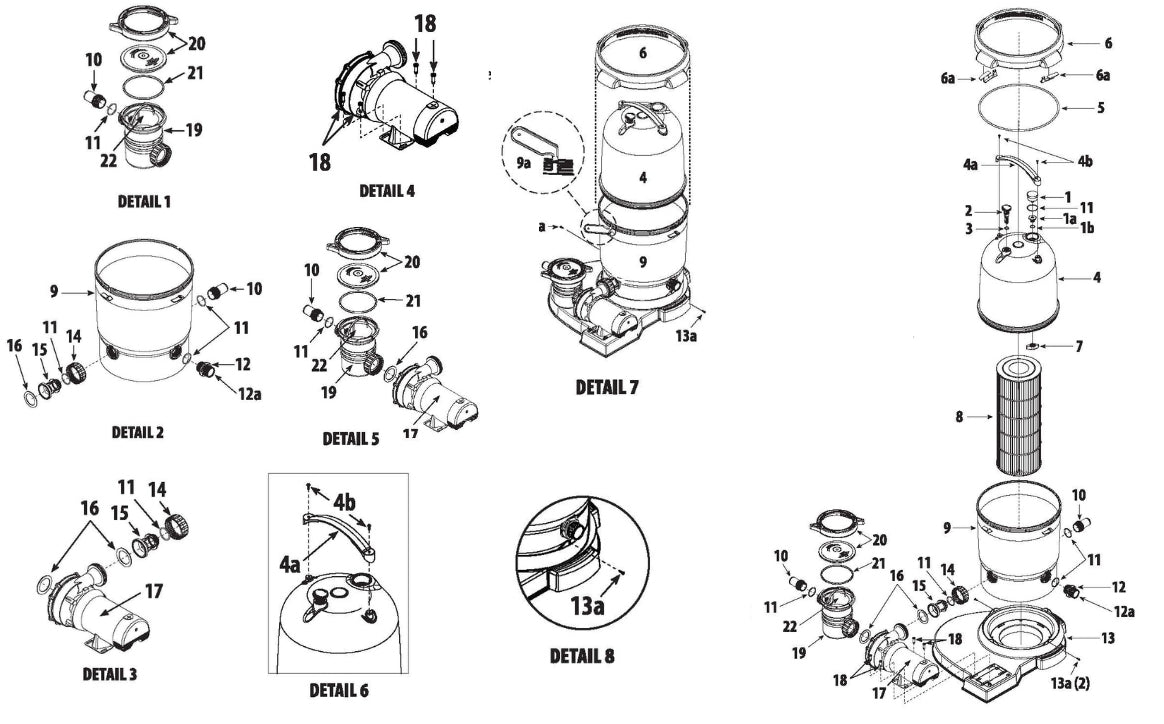

Replacement parts and exploded parts diagram for the Waterway 150 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP (model 520-5167-6S). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 830-4000SS –
- #1b – 805-0117SD –
- #1b – 711-1930 –
- #5 – 805-0460 – Lid O-Ring
- #6 – 718-7251 – Filter Nut (sold With Lid Assembly only)
- #11 – 805-0224 –
- #12 – 500-5300 – Drain Assembly
- #12a – 505-2030 – Drain Cap
- #12a – 400-6621 – Crystal Water 1.5" Drain Assembly for Cartridge & D.E. Filter
- #16 – 711-4010 – 2" Union Gasket
- #20 – 319-3260 – 6" Trap Lid
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-520-5167-6S
Brand: Waterway
Price range
$12.36 - $69.90
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Waterway 150 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP (model 520-5167-6S)
- 17 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Waterway parts plus compatible alternates
- Add multiple parts to your cart at once
