Sta-Rite IntelliPro3 VSF Pump 3 THP 208-230V 013075 Parts & Diagram

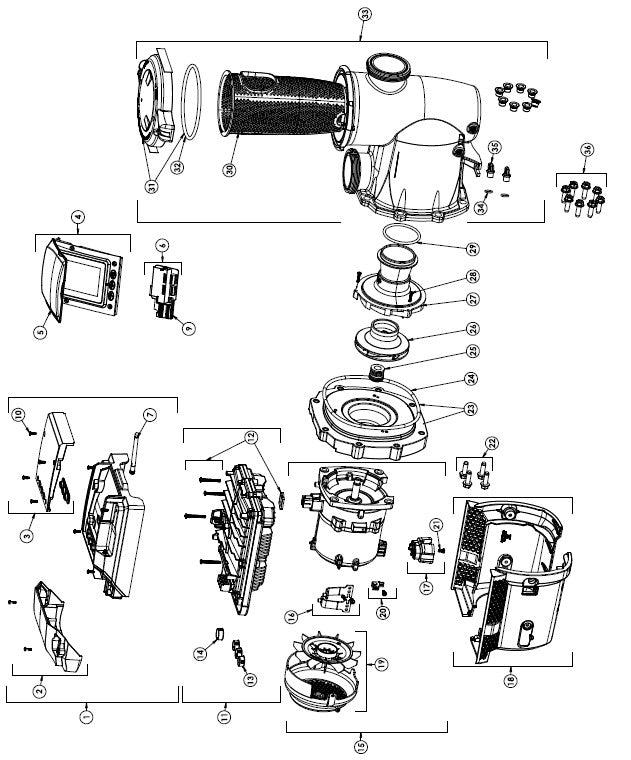

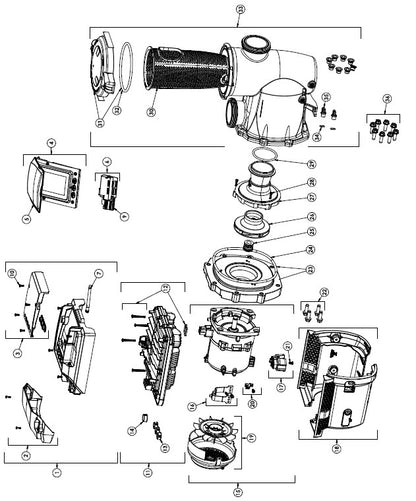

Replacement parts and exploded parts diagram for the Sta-Rite IntelliPro3 VSF Pump 3 THP 208-230V (model 013075). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – 24900-0504Z – Adapter Bushing
- #5 – 35505-1423Z – O-Ring
- #9 – 25021-0003Z – Air Bleed Tube
- #10 – 25021-0101Z – Baffle and Bulkhead Fitting
- #13 – 25021-0100Z – Elbow and Bulkhead Assembly
- #14 – 35505-1425Z – O-Ring
- #15 – 35505-1424Z – O-Ring
- #16 – 24900-0509Z – Adapter Fitting
- #17 – 27001-0022 – 1-1/2 in. NPT Plug
- #18 – 24900-0503Z – Drain Plug
- #20 – 24850-0200Z – Clamp Assembly 1
- #21 – 24850-0010Z – Clamp Bolt 1
- #23 – 24850-0008Z – Cord Ring, 21 in. Filter
- #23 – 24850-0009Z – Cord Ring, 25 in. Filter
- #24 – 24851-9000 – Upper Tank Half Kit, 21 in. Filter 2 (Includes all decals and labels)
- #24 – 24851-9001 – Upper Tank Half Kit, 25 in. Filter 2 (Includes all decals and labels)
- #25 – 24850-0105 – Valve & Gauge Assembly (Includes #1, 2, 3, 4, 5)
- Not Shown – U212-252DS – Brass Deluxe Air Bleed (Optional)
- Not Shown – U9-362Z – O-Ring
Please confirm your model number matches your existing equipment before ordering.
