Sta-Rite 48 SqFt PLD Series System: 2 Modular D.E. Filter PLDE48 Parts & Diagram

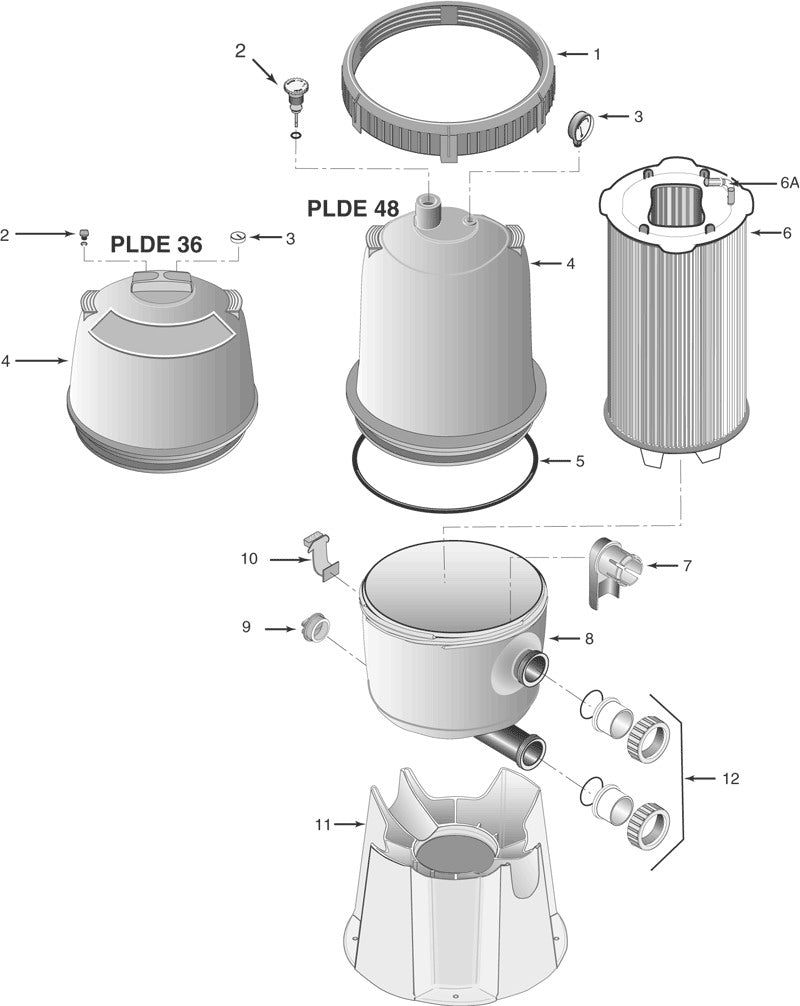

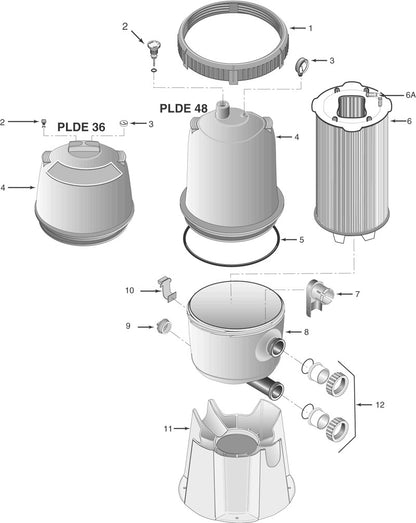

Replacement parts and exploded parts diagram for the Sta-Rite 48 SqFt PLD Series System: 2 Modular D.E. Filter (model PLDE48). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 25010-0200 – Pld/Ptm AIR Relief Valve Assy
- #2 – 072555 – #2-112 Nitrile O-Ring Cover
- #2 – 24206-0103S – AIR Relief Valve Vent Stem
- #4 – 27001-0020S – Plm/Pld Tank Lid
- #4 – 27001-0030S – PLM300 Tank Lid
- #6A – 24800-0120 – SYSTEM:3 Internal AIR Bleed Assy
- #7 – 27001-0015S – SYS2 Diverter
- #9 – 27001-0022Z – 1.5" MPT Plug W/ Oring
- #10 – 27001-0051Z – Plm/Pld Safety Latch
- #11 – 27001-0018S – SYS2 Tank Support Base
Please confirm your model number matches your existing equipment before ordering.
