Sta-Rite 150 SqFt System:2 Mod Media Modular Media Filter PLM150 Parts & Diagram

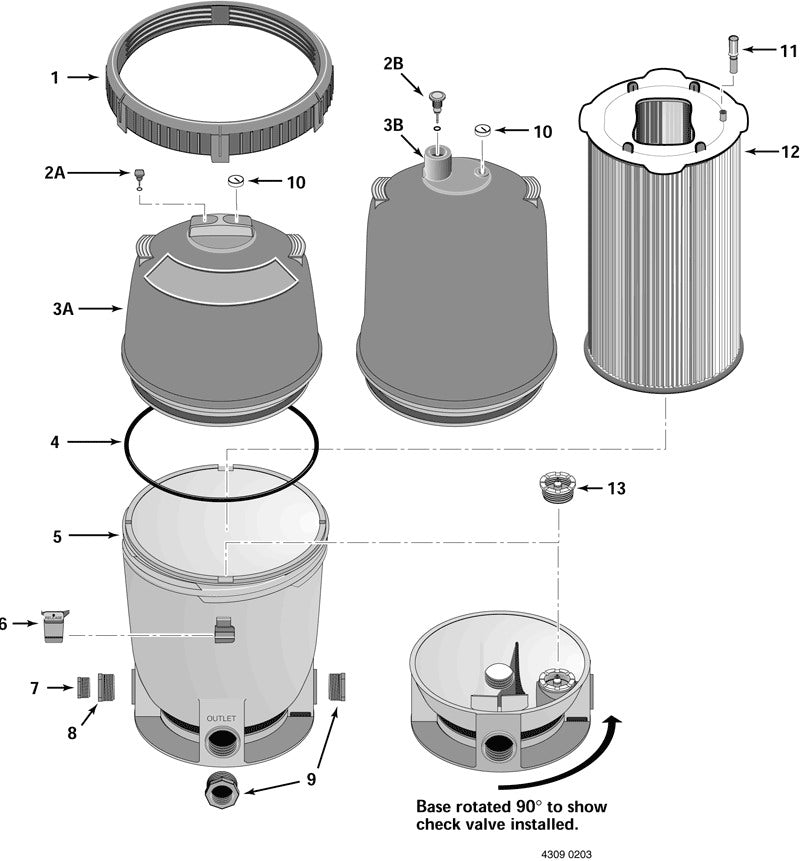

Replacement parts and exploded parts diagram for the Sta-Rite 150 SqFt System:2 Mod Media Modular Media Filter (model PLM150). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 25010-0200 – Pld/Ptm AIR Relief Valve Assy
- #2 – 072555 – #2-112 Nitrile O-Ring Cover
- #3A – 27001-0020S – Plm/Pld Tank Lid (Includes all decals and labels. )
- #3B – 27001-0030S – PLM300 Tank Lid (Includes all decals and labels. )
- #4 – 27001-0060S – Cord Ring
- #6 – 27001-0051Z – Plm/Pld Safety Latch
- #7A – 27001-0022Z – 1.5" MPT Plug W/ Oring
- #8 – 35505-1424Z – SYSTEM:3 Drain Plug Oring
- #8 – U9-156 – 3/8" Pool Pump Header HUB Oring
- #9 – U78-820PZ – Reducer 2 X 1.5" NPT (Optional Equipment. )
- NOT SHOWN – 33455-1050 – 0.0009 Spring Check Valve Gasket
Please confirm your model number matches your existing equipment before ordering.
