Raypak Titanium Natural Gas Heater 1505K 017005 Parts & Diagram

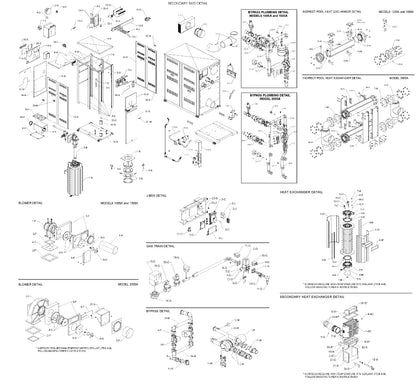

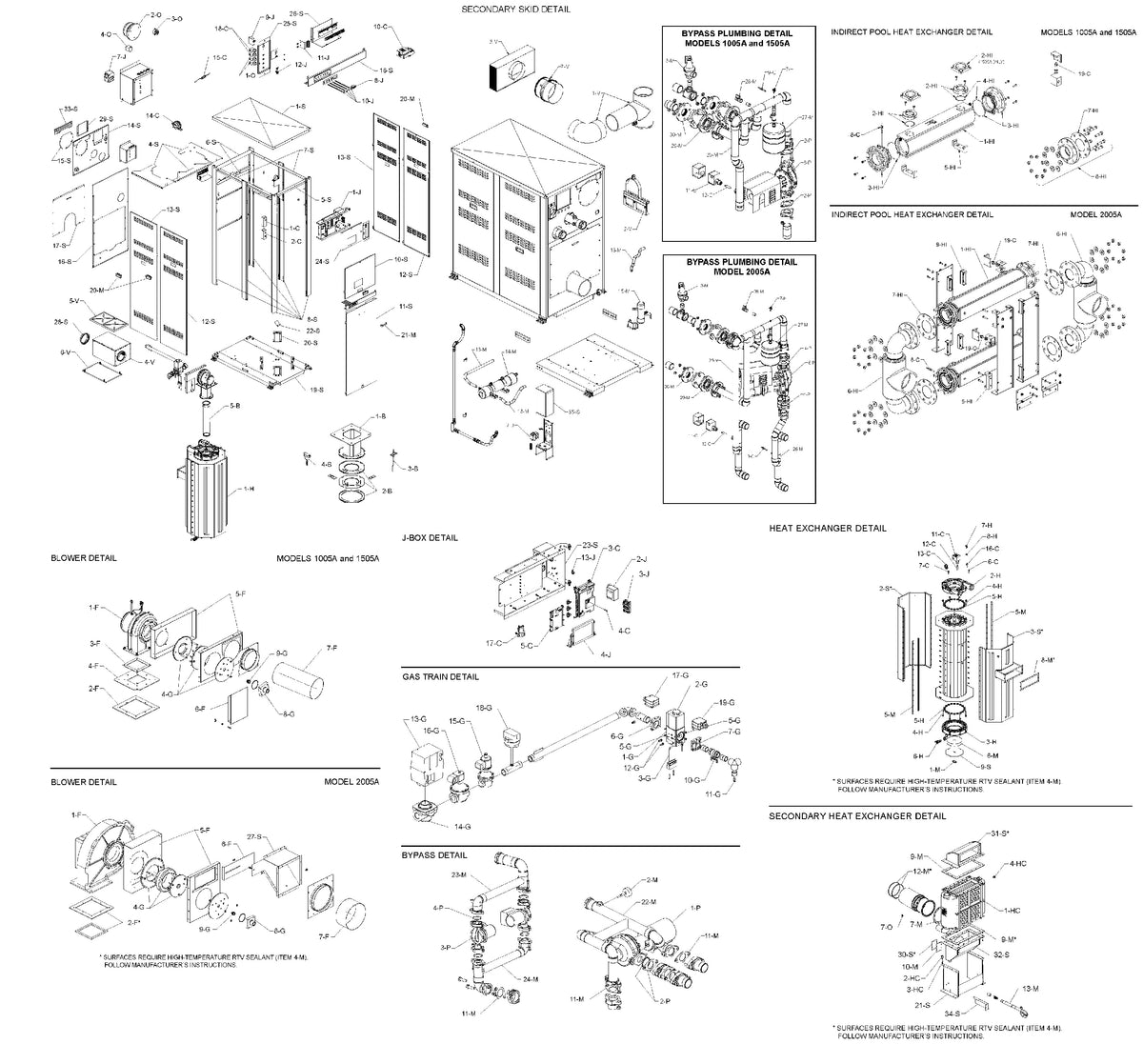

Replacement parts and exploded parts diagram for the Raypak Titanium Natural Gas Heater 1505K (model 017005). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4-J – 015878F – MVB/ Xtherm Touchscreen Display
- #6-H – 006536F – 3 4"NPT Drain Valve
- #8-J – 009493F – Spst Rocker Switch
- #11-M – 012596F – Flange Gasket
- #13-J – 007155F – 14/6 Wire Bonding Connector
- #14-C – 011760F – 1003 1503-4005 AIR Pressure Vent Switch Kit
- #16-M – 750125 – 12.75OZ Forest Green Aerosol Touch-Up Paint (Not shown; Green )
- #16-M – 750256 – Cool Dark GRY Touch-Up Paint (Not shown; Cool Dark Gray )
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-017005
Brand: Raypak
Price range
$53.54 - $275.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Raypak Titanium Natural Gas Heater 1505K (model 017005)
- 9 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Raypak parts plus compatible alternates
- Add multiple parts to your cart at once
