Raypak Natural Gas Electric Heater 332K BTU 009218 Parts & Diagram

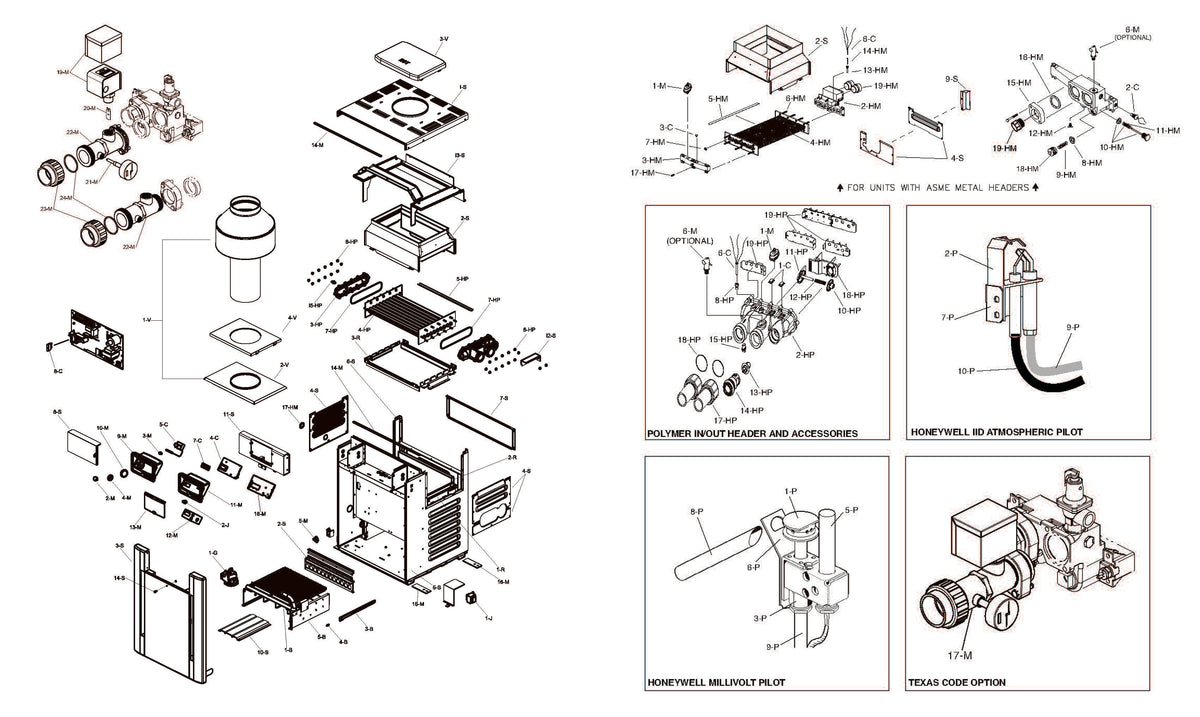

Replacement parts and exploded parts diagram for the Raypak Natural Gas Electric Heater 332K BTU (model 009218). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-B – 010393F – 336A Burner Tray W/ Burners
- #1-B – 010397F – 336A Burner Tray W/O Burners
- #1-B – 010401F – 336A MV Burner Tray W/Natural GAS VLV
- #1-B – 010409F – 336A IID Burner Tray W/Natural GAS VLV
- #1-C – 006725F – 135^F R185A- R405A Surface MTG Auto Reset Tstat
- #1-HP – 010045F – 336A/ 337A Copper Polymer Heat Exchanger Assy
- #1-HP – 017996F – Polymer Kit Heat Exchanger for Digital Pool and Spa Heater Models 336/337
- #1-HP – 010358F – 366A/ 337A Cu-Ni Polymer Heat Exchanger Assy
- #1-HP – 018000F – Polymer Cu-Ni Kit Heat Exchanger for Digital Pool and Spa Heater Models 336/337
- #1-HP – 014928F – 336A Heat Exchanger Assy
- #1-HM – 010053F – 336A/ 337A Copper Asme Heat Exchanger Assy
- #1-HM – 010362F – 336A/ 337A Cu-Ni Asme Heat Exchanger Assy
- #1-J – 006736F – 120/240V Transformer
- #1-M – 006737F – 1.75PSI Pressure Switch
- #1-P – 600525B – 185B/ C- 405B / C MV NG Standing Pilot W/ Generator
- #1-S – 010049F – 336A 337A Jacket Top
- #1-V – 009836 – 336A 337A High Wind Top
- #2-B – 010417F – 336A Burner Spacer Hold Down Kit
- #2-C – 600892B – .25"-18MPT 135^F Auto Reset High Limit Kit
- #2-HM – 006730F – Cast Iron Inlet/ Outlet Header
- #2-HM – 012319F – 185-405 206-407 CI Inlet/Outlet Header
- #2-J – 009493F – Spst Rocker Switch
- #2-M – 009499F – R185B- R405B Thermostat Knob
- #2-S – 010073F – 336A Flue Collector
- #2-S – 010077F – 336A Asme Flue Collector
- #2-V – 010332F – 336A 337A Stack Adapter
- #3-C – 600893B – .25"-18MPT 140^F Auto Reset High Limit Kit
- #3-HM – 006731F – R185A - R405A Asme Cast Iron Return Header
- #3-M – 800307 – Thermostat Shaft MV
- #3-P – 003901F – NG MV Pilot Orifice
- #3-R – 010389F – 336A Refractory Retainer Kit
- #3-S – 010380F – Raypak 336A Green Door Assy
- #3-S – 013865F – RHM 206A Cool DK & Warm DK GRY Door Assy
- #3-S – 010384F – Rheem Ruud 336A Green Door Assy
- #3-S – 013869F – RUD 336A Warm DK GRY Door Assy - (BEFORE 9/2012)
- #3-S – 013861F – Ray/Rud 336A Cool DK & Warm DK GRY Door Assy
- #3-V – 010336 – 336A 337A Green Pagoda Top
- #3-V – 013885F – 336A 337A Cooldark GRY Pagoda Top
- #4-B – 350347F – #53 30A/ 66A Hi-Alt NG Burner Orifice (FOR INSTALLATION AT OVER 2,000 FEET ABOVE SEA LEVEL, DERATE 4% PER I,000 FEET ABOVE SEA LEVEL)
- #4-B – 350347F – #53 NG Burner Orifice (FOR INSTALLATION AT OVER 2,000 FEET ABOVE SEA LEVEL, DERATE 4% PER I,000 FEET ABOVE SEA LEVEL)
- #4-HP – 010061F – 336/ 337 Copper Tube Bundle F/ Polymer Headers
- #4-HP – 010366F – 335A/ 336A/ 337A Cu-Ni Plastic Header Tube Bundle
- #4-HM – 010057F – 336A/ 337A Asme Copper Tube Bundle
- #4-HM – 010370F – 336A/ 337A Cu-Ni Metal Header Tube Bundle
- #4-M – 006886F – R185- R405 Knob Stop
- #4-P – 003903F – NG IID Pilot Orifice
- #4-S – 010312F – 206-406 207-407 Metal Access Panel SET
- #4-V – 011463F – 336A 337A Outer Stack Adapter
- #5-C – 003346F – ELS 552-2/ 1102-2 Mech Thermostat Temp Control
- #5-HP – 010040F – 336A 337A Baffle Kit
- #5-HP – 014936F – 336A Baffle Kit
- #5-M – 005899F – Thermal Fuse
- #5-P – 600019B – 35" 750MV 206A- 406A Thermocouple Pilot Generator
- #6-C – 009577F – 3-WIRE IID Temperature Sensor
- #6-HP – 008259F – .25-20 Flange Nut Kit
- #6-HM – 007870F – 206A 266A 336A 406A Stud Bolt Kit
- #6-M – 007224F – 125PSI Pressure Relief Valve
- #6-P – 010352F – 206 406 MV Pilot Mounting Bracket
- #6-S – 010377F – 206A 406A Jacket Left Side Panel
- #7-C – 013640F – LCD Display Module
- #7-HP – 006713F – 2/PK Polymer Header Oring Gasket
- #7-HM – 800014B – .75" 185A- 405A Flat Header Gasket
- #7-P – 306692 – 185B- 405B IID Pilot Mounting Bracket
- #7-S – 010374F – 336A Jacket Rear Panel
- #8-HP – 006714F – Sensor Adapter
- #8-HP – 006805F – 11/16" 206A- 406A SS Sensor Well
- #8-HM – 062234B – 155B-408 Unitherm Governor Kit
- #8-M – 010386F – 206A- 406A MV Wire Harness
- #8-M – 009490F – R185B- R405B IID Wire Harness
- #8-M – 013817F – Wire/Harness IID Kit for Atmospheric Models 268A-408A
- #8-P – 062996 – 206A- 406A MV Lighter Tube
- #9-HP – 006715F – R185A- R405A Capron Bypass Kit
- #9-HM – 013792F – 155B- 405/ 206/ 408A Unitherm GOV Retainer Spring
- #9-M – 009489F – R185B- R405B MV Control Bezel
- #9-P – 004078F – 34" Pilot Tube Kit
- #9-S – 010319F – 206 408 207 407 High Limit Cover
- #10-HP – 006716F – R185A- R405A Capron Bypass Valve
- #10-M – 009858F – 185B-405B 206-406 MV Dial Decal
- #10-S – 010320F – 206A- 406A/ 207A- 407A Base Heat Shield
- #11-HP – 006717F – R185A- R405A Capron Bypass Dam/Shaft
- #11-S – 010323F – 336A 337A Green UP Front Control Panel
- #11-S – 013889F – 336A 337A Cool DK GRY UP Front Control Panel
- #11-S – 013893F – 336A 337A Warm DK GRY UP Front Control Panel
- #12-HP – 006718F – R185A- R405A Capron Bypass Spring
- #12-HM – 013793F – 1/8"NPT 206A- 406A Drain Valve
- #12-M – 009492F – Switch/Decal-membrane
- #12-S – 010342F – 206 407 High Limit Shield
- #13-HP – 006719F – 185-407 Unitherm Governor
- #13-HM – 003765F – 105A-408 Sensor Well
- #13-M – 009487F – 206- 407/ R185B- R405B Control Bezel Cover
- #13-S – 010327F – 336A 337A Weather Shield
- #14-HP – 006720F – 185-407 Capron Unitherm Governor Plug
- #14-HM – 300203 – 206A- 406A Bulb Retainer Clip
- #14-M – 010350F – 206 408 Insulation Gasket
- #15-HP – 006721F – R185A- R405A Capron Drain Plug
- #15-HM – 003766F – 1.5"/2" CI Inlet/Outlet Flange Kit
- #15-M – 750125 – 12.75OZ Forest Green Aerosol Touch-Up Paint
- #15-M – 750126 – 12.75OZ Charcoal GRY Aerosol Touch-Up Paint
- #15-M – 750256 – Cool Dark GRY Touch-Up Paint
- #15-M – 750258 – Warm Dark GRY Touch-Up Paint
- #16-HM – 062236B – 2/PK 1.5" Flange Gasket
- #16-HM – 800080B – 2/PK 2" Flange Gasket
- #17-HM – 005264F – 206A- 406A/ 207A- 407A Rear Drain Plug & Cover
- #18-HP – 006724F – 2" Connector Oring Kit
- #19-HP – 006826F – R185A- R405A Plastic Inlet/ Outlet Header Baffle
- #19-HM – 005393F – 2" Cpvc Inlet Adapter
- #22-M – 013795F – 2" Cpvc Outlet Connector W/ Flange Gasket
- - – 004692B – 331-405/ 333A-403A MV NG TO LP Conversion Kit (Gas conversions are to be done only by a qualified agency. )
- - – 010420F – 336A/ 406A LP TO NG Conversion Kit (Gas conversions are to be done only by a qualified agency. )
Please confirm your model number matches your existing equipment before ordering.
