Raypak MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H 014384 Parts & Diagram
Replacement parts and exploded parts diagram for the Raypak MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H (model 014384). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.

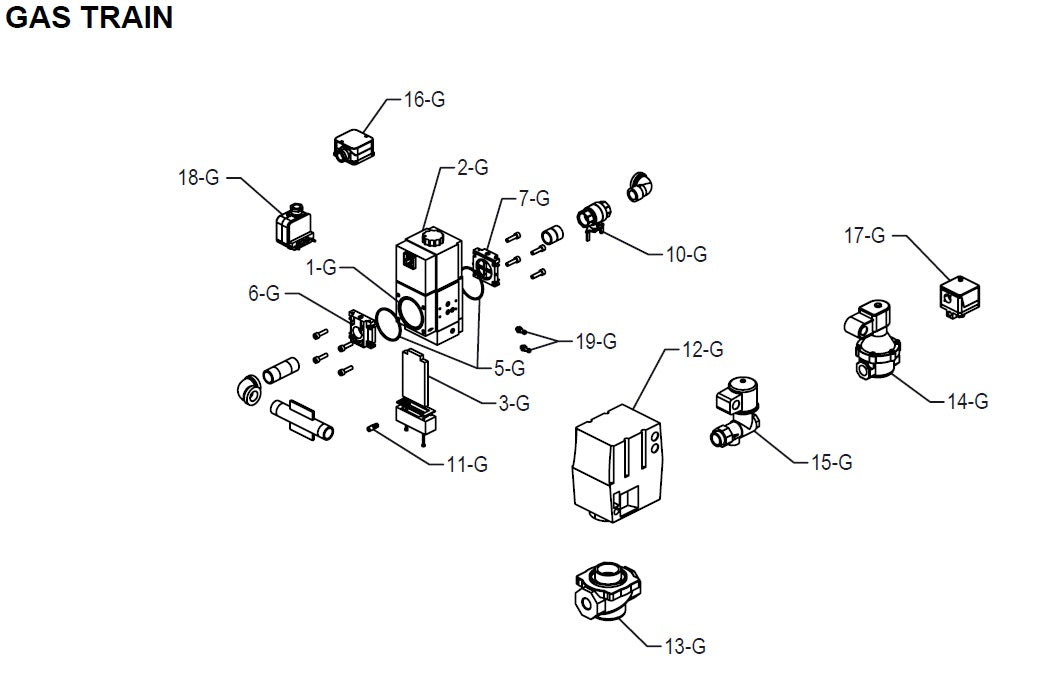

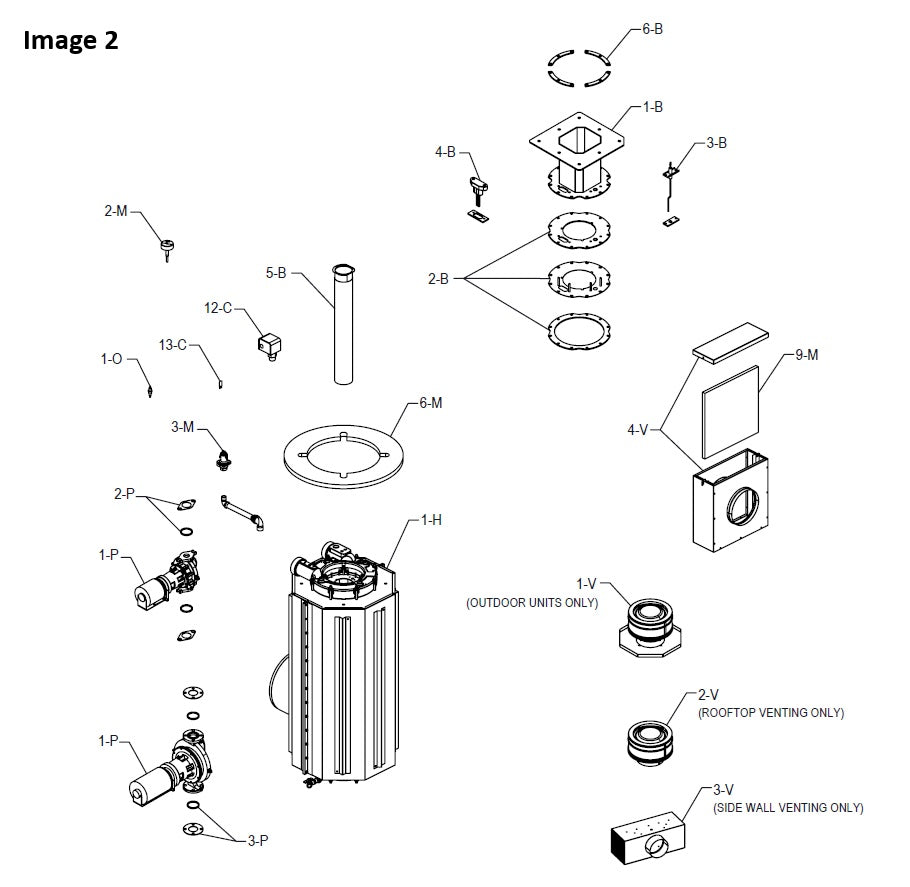

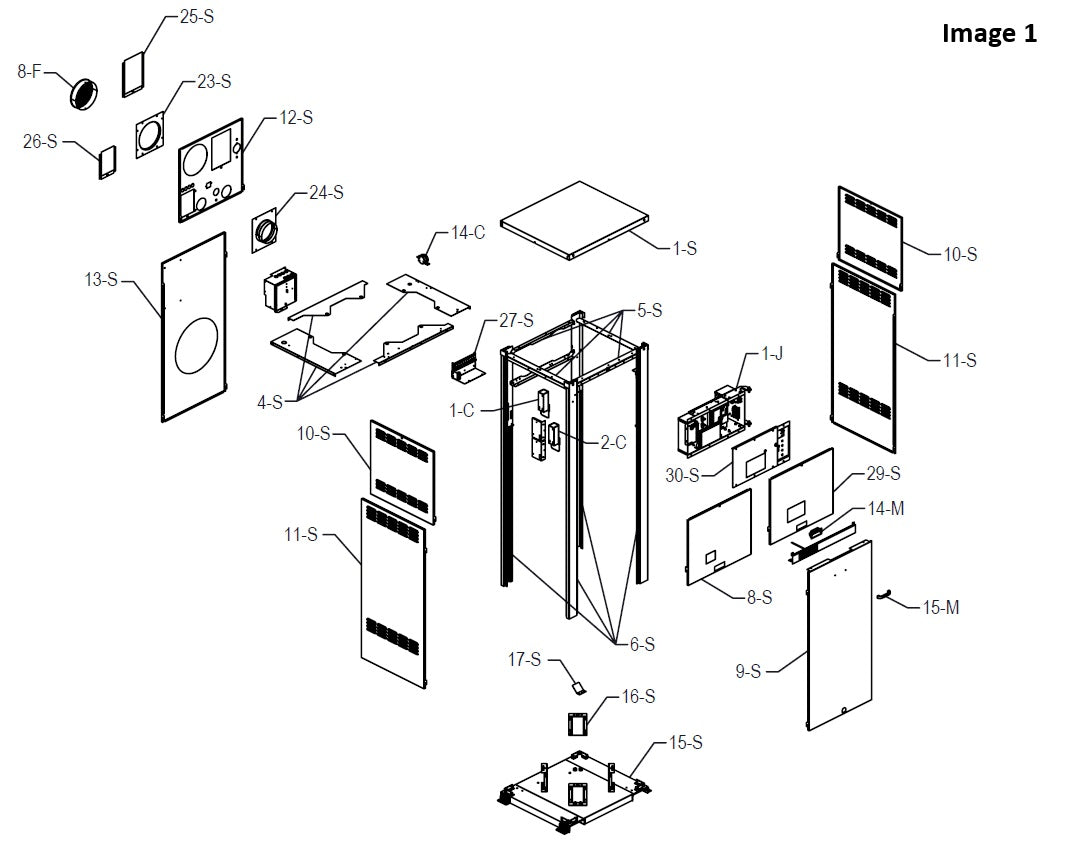

- #2-C – 009554F – Manual-Reset Adjustable High Limit 180F (Image 1)

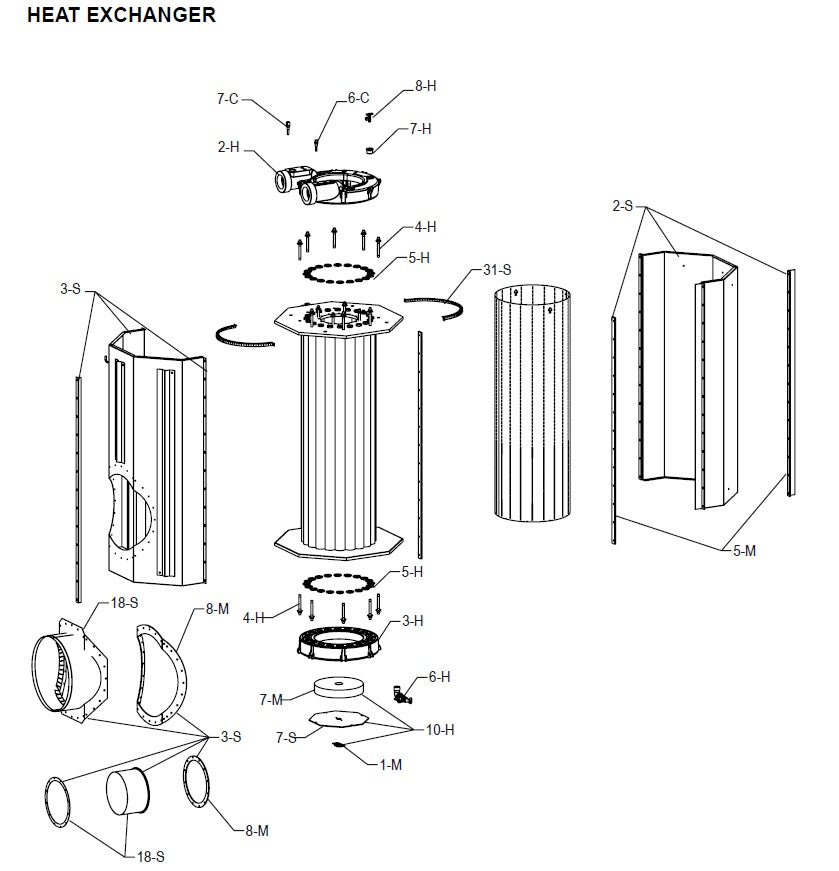

- #2-P – 013423F – Pump Flange Gasket (2 Bolt) (Image 2)
- #2-H – 014619F – Inlet/Outlet Header Bronze (Heat Exchanger)

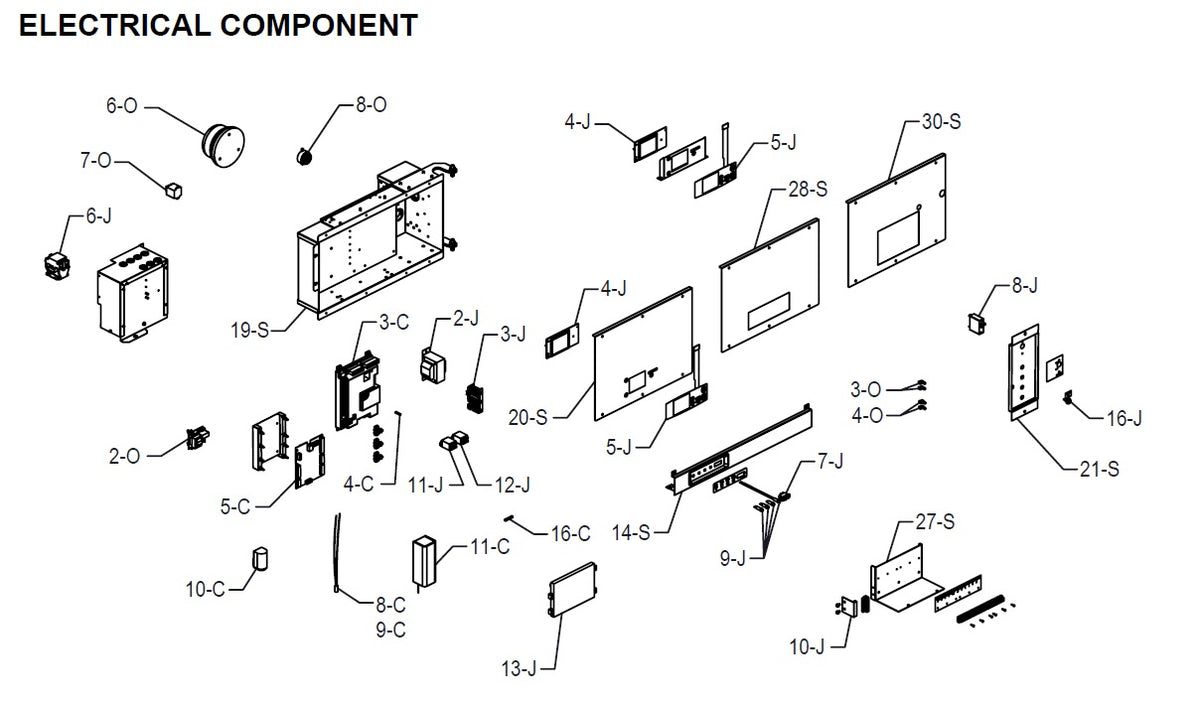

- #2-J – 007494F – Transformer 120/24 100 VA (Electrical Component)

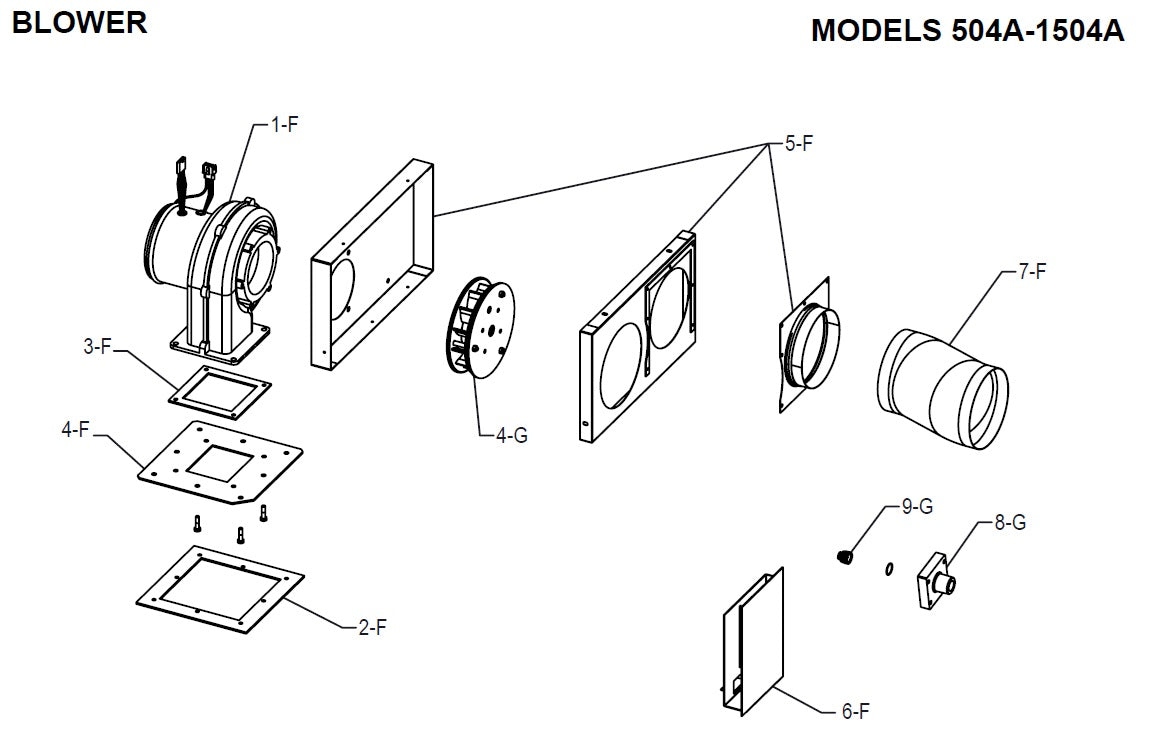

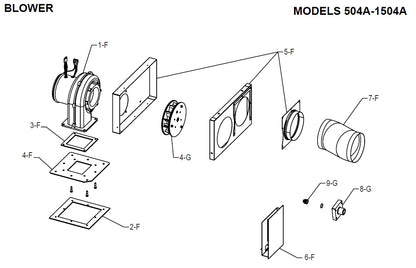

- #2-F – 011885F – Blower Gasket (Blower)
- #3-M – 007224F – PRV 125 PSI (Image 2)
- #3-C – 014324F – PIM (Platform Ignition Module) Multi-Try (Electrical Component)
- #6-H – 006536F – Drain Valve (Heat Exchanger)
- #7-C – 013932F – Outlet/Limit Sensor (4 Wire) (Heat Exchanger)
- #7-J – 009493F – Rocker Switch (Electrical Component)
- #9-M – 012552F – Inline Intake Air Filter Premium Pleated (Image 2)
- #14-C – 011862F – Vent Pressure Switch (Image 1)
Please confirm your model number matches your existing equipment before ordering.
