Raypak MVB Modulating Vertical Pool & Spa Natural Gas Heater 1900K BTU w/ CAL CODE 100-10006505 Parts & Diagram

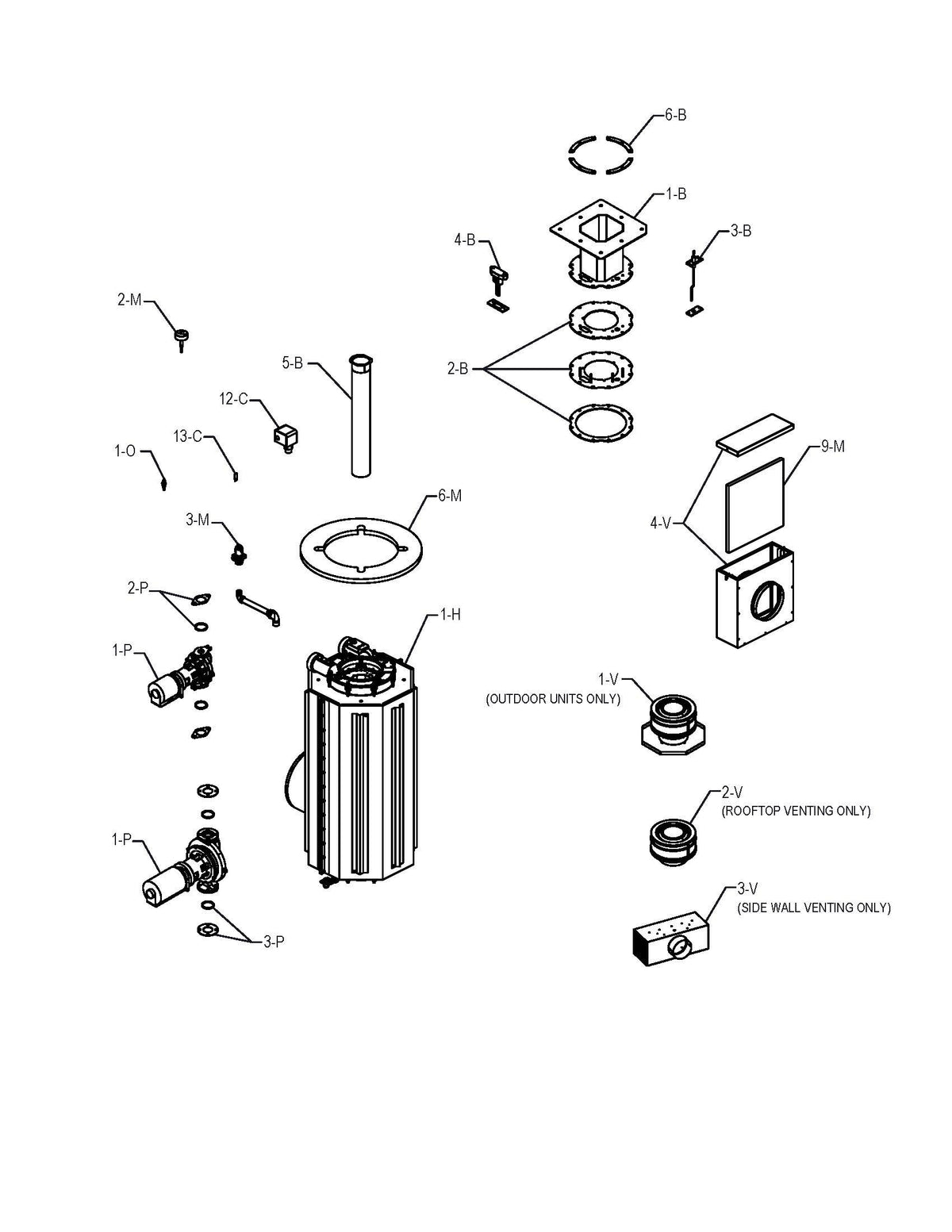

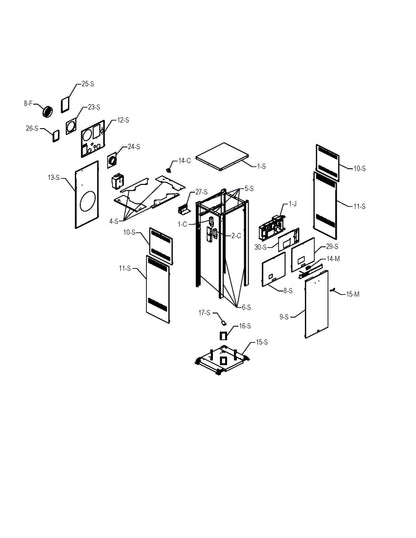

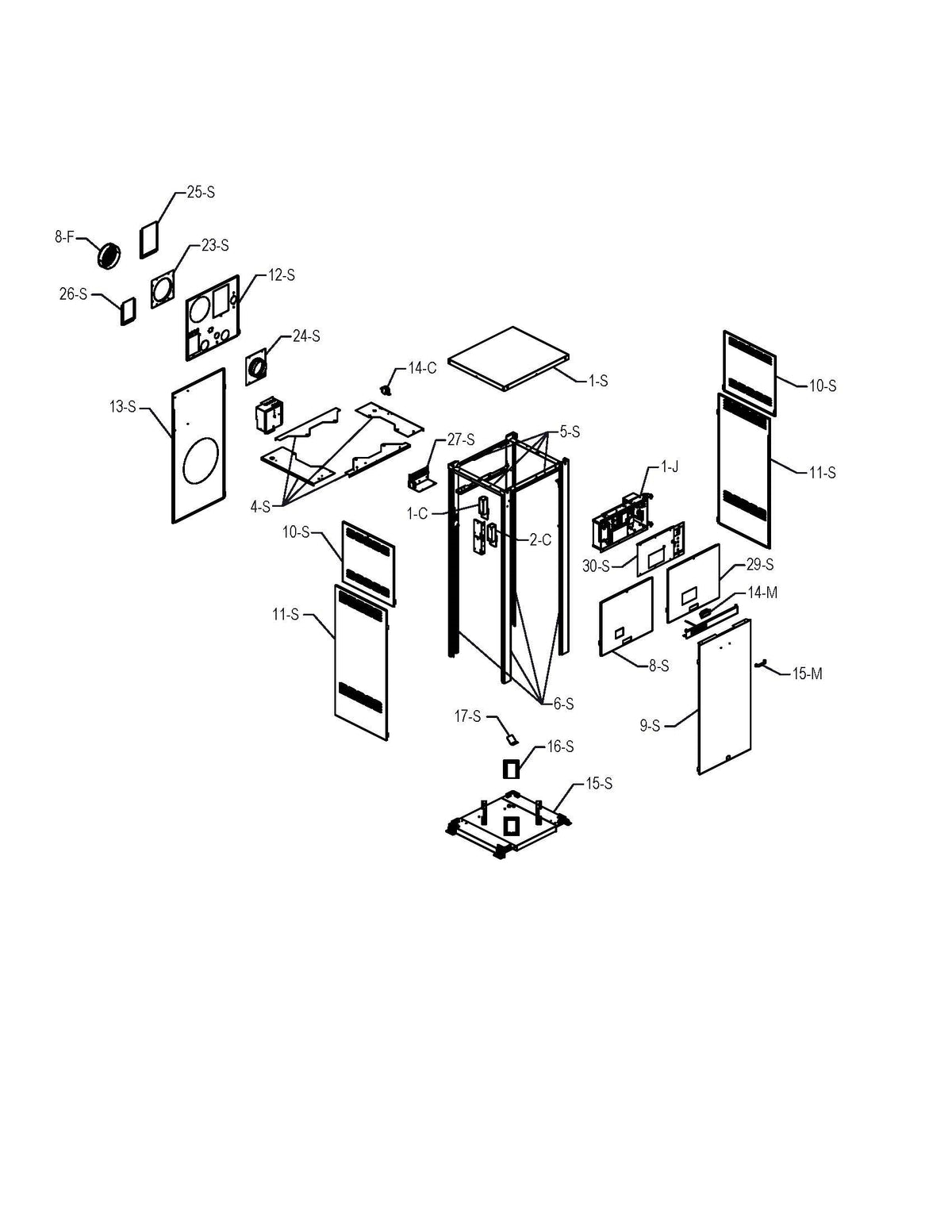

Replacement parts and exploded parts diagram for the Raypak MVB Modulating Vertical Pool & Spa Natural Gas Heater 1900K BTU w/ CAL CODE (model 100-10006505). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.

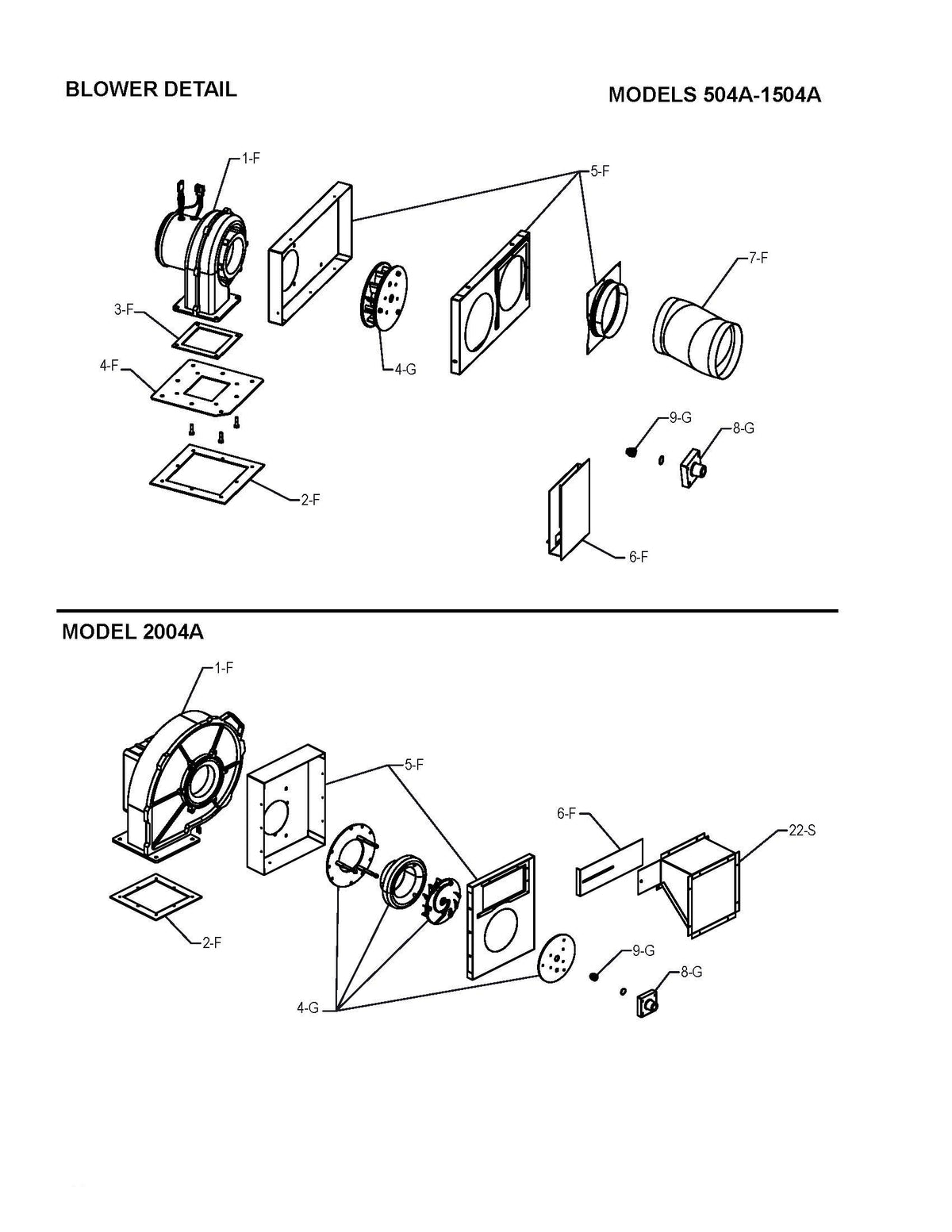

- #1-F – 011765F – Blower Combustion Air
- #2-C – 009554F – Manual-Reset Adjustable High Limit 180F

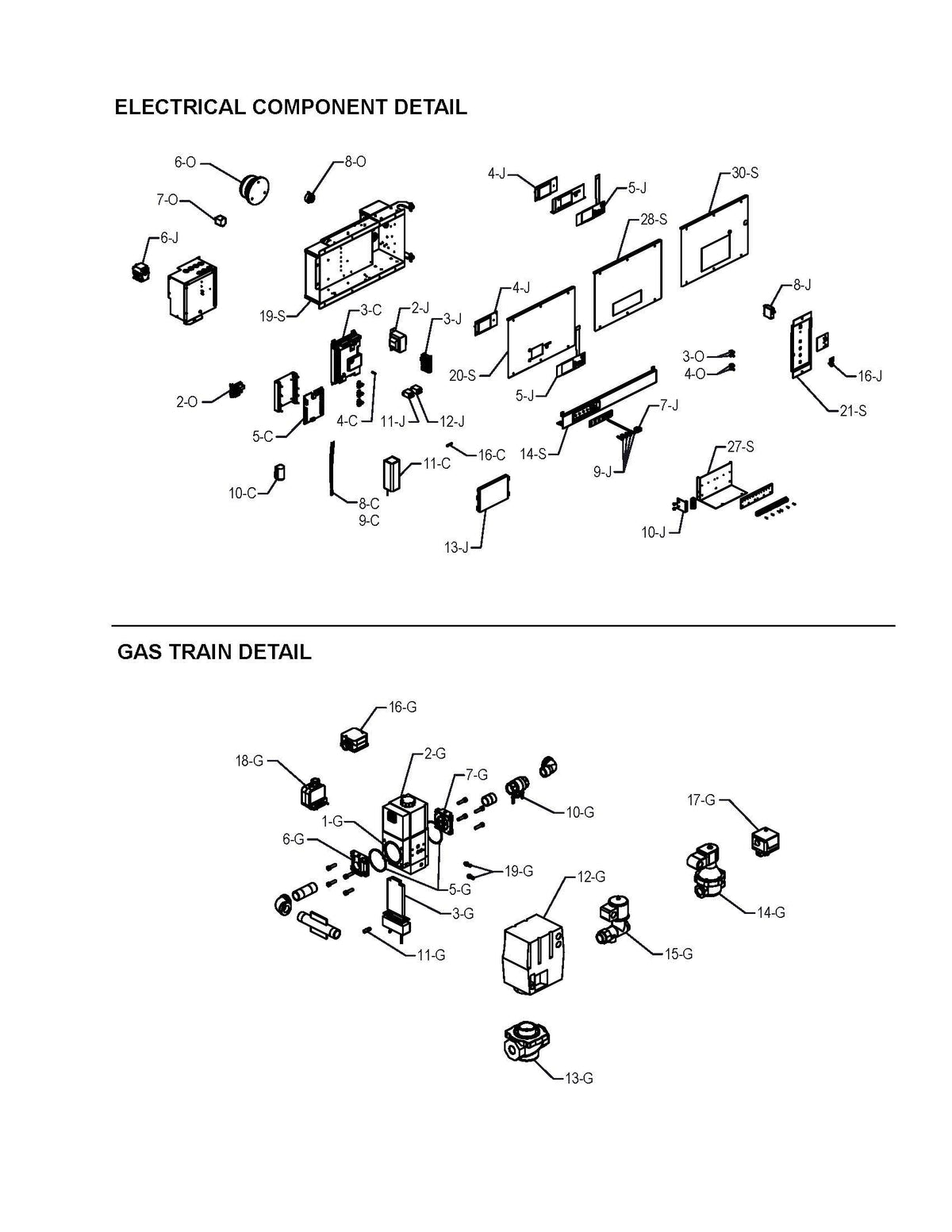

- #2-J – 007494F – Transformer 120/24 100 VA
- #2-F – 011885F – Blower Gasket

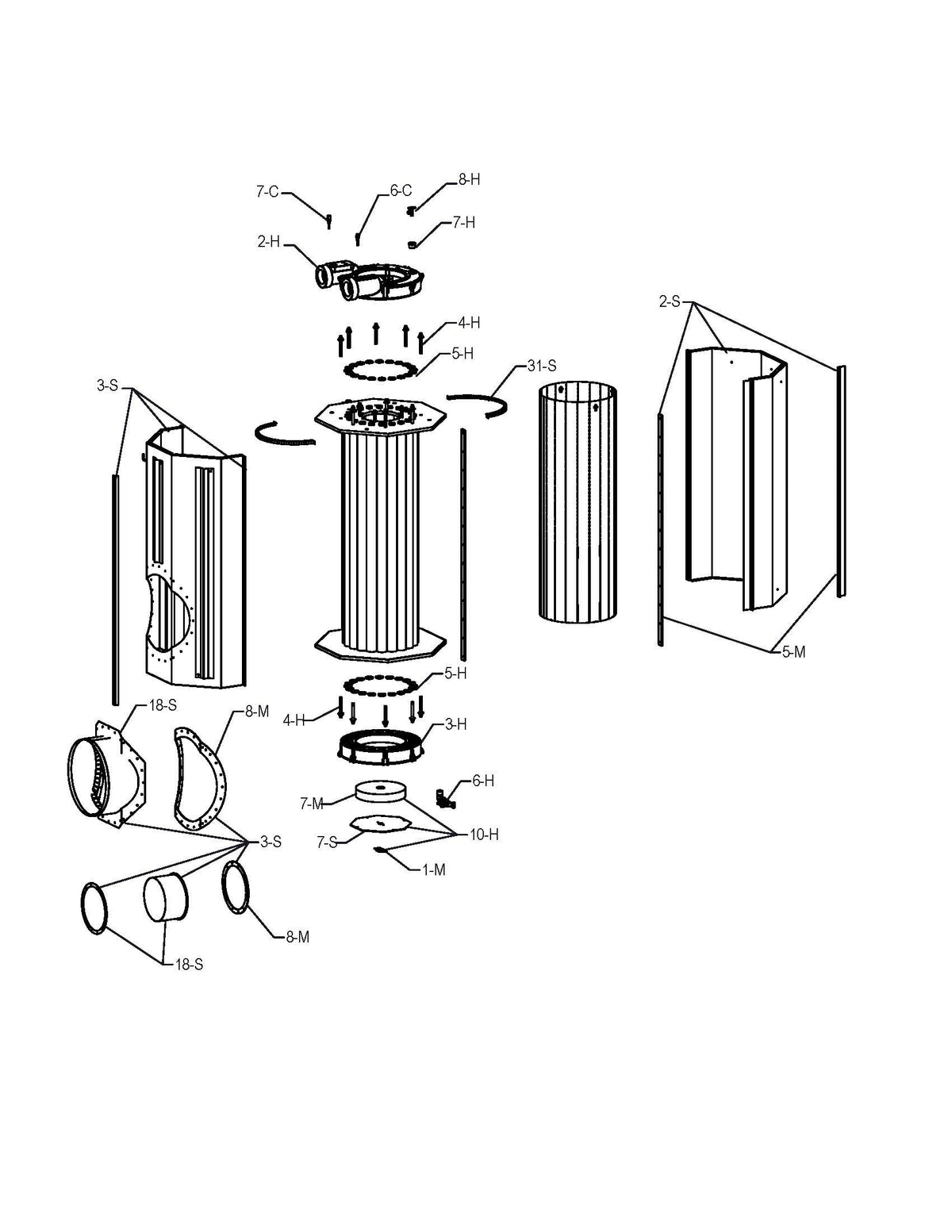

- #2-H – 014619F – Inlet/Outlet Header Bronze
- #2-P – 013423F – Pump Flange Gasket (2 Bolt)
- #3-C – 014324F – PIM (Platform Ignition Module) Multi-Try
- #4-V – 012461 – Inline Air Filter Premium (Complete)
- #6-H – 006536F – Drain Valve
- #7-C – 013932F – Outlet/Limit Sensor (4 Wire)
- #7-J – 009493F – Rocker Switch
- #9-M – 012552F – Inline Intake Air Filter Premium Pleated
- #10-M – 750125 – Touch-Up Paint Green
- #10-M – 750256 – Touch-Up Paint Cool Dark Gray
- #14-C – 011760F – Vent Pressure Switch
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-100-10006505
Brand: Raypak
Price range
$53.54 - $275.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Raypak MVB Modulating Vertical Pool & Spa Natural Gas Heater 1900K BTU w/ CAL CODE (model 100-10006505)
- 12 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Raypak replacement parts
- Add multiple parts to your cart at once
