Raypak Hi Delta P-1262C Natural Gas Pool Heater 1260K BTU 016066 Parts & Diagram

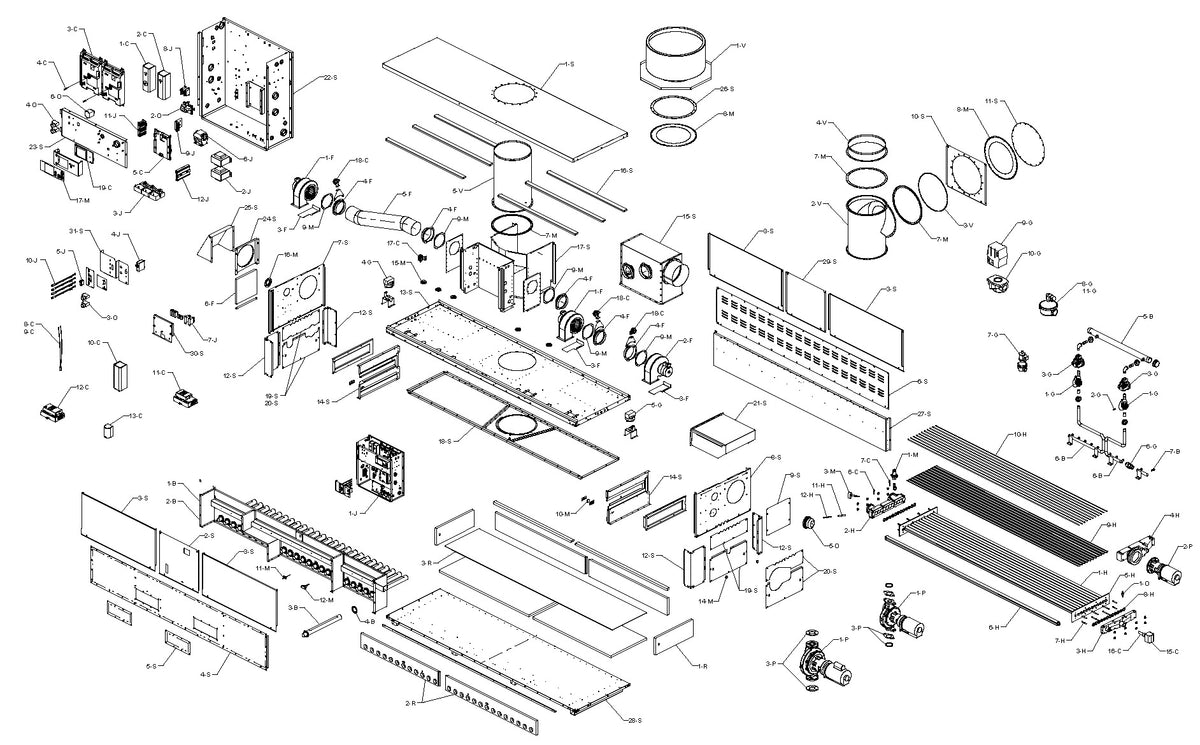

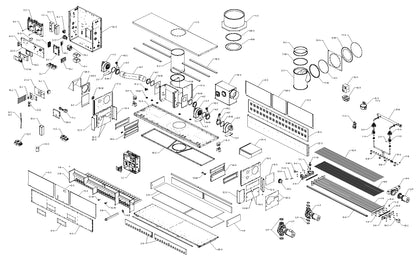

Replacement parts and exploded parts diagram for the Raypak Hi Delta P-1262C Natural Gas Pool Heater 1260K BTU (model 016066). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 009554F – 40-180^F P926 - P1826 ADJ High Limit W/ Manual Reset
- #1-G – 007189F – 1" 500/ 750 Manual A1 GAS Valve
- #2-M – 052870F – 7/8" Tube Deliming Kit
- #5-J – 006872F – Spst Rocker Switch Kit
- #8-H – 007834F – Heat Exchanger Gasket Kit
- #11-H – 007211F – 181- 401/ 183A- 403A SS Sensor Well
- #12-H – 300203 – 206A- 406A Bulb Retainer Clip
- #13-M – 750125 – 12.75OZ Forest Green Aerosol Touch-Up Paint
- #13-M – 750256 – Cool Dark GRY Touch-Up Paint
Please confirm your model number matches your existing equipment before ordering.
