Raypak Hi Delta P-1262C 1260K NG IID Cold Run Heater 016089 Parts & Diagram

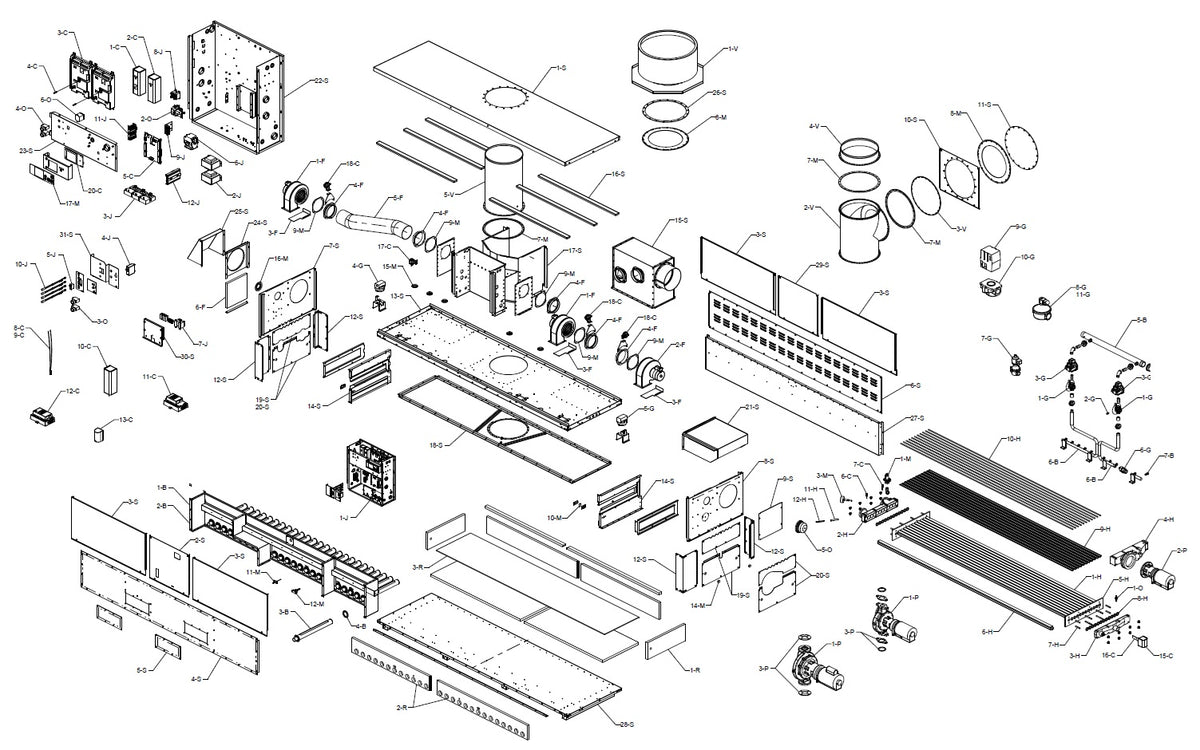

Replacement parts and exploded parts diagram for the Raypak Hi Delta P-1262C 1260K NG IID Cold Run Heater (model 016089). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 009554F – Manual-Reset Adjustable High Limit 180"F Max
- #1-G – 007189F – Valve Gas Manual A 1" (Low Gas Press.)
- #1-M – 007224F – PRV 125 PSI
- #1-P – 007348F – Inline Pumps (H & WH) Bronze (Medium Water)
- #2-J – 007494F – Transformer 100 VA
- #2-M – 052870F – Deliming Kit
- #3-C – 014324F – PIM (Platform Ignition Module) Multi-Try
- #3-P – 013423F – Pump Flange Gasket Taco 1600 Series Gasket Flat (2-Bolt)
- #5-J – 006872F – On/Off Switch Rocker
- #7-C – 013932F – Outlet/Limit Sensor (4-Wire)
- #8-H – 007834F – Header Gasket
- #11-H – 007211F – Sensor Well
- #12-H – 300203 – Well Retaining Clip
- #13-M – 750125 – Touch-Up Paint Green
- #13-M – 750256 – Touch-Up Paint Cool Dark Gray
- #18-C – 008171F – Switch Air Pressure Differential (Blower)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-016089
Brand: Raypak
Price range
$23.75 - $275.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Raypak Hi Delta P-1262C 1260K NG IID Cold Run Heater (model 016089)
- 14 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Raypak replacement parts
- Add multiple parts to your cart at once
