Raypak Hi Delta Natural Gas Heater 1530K BTU with CAL CODE 100-10006501 Parts & Diagram

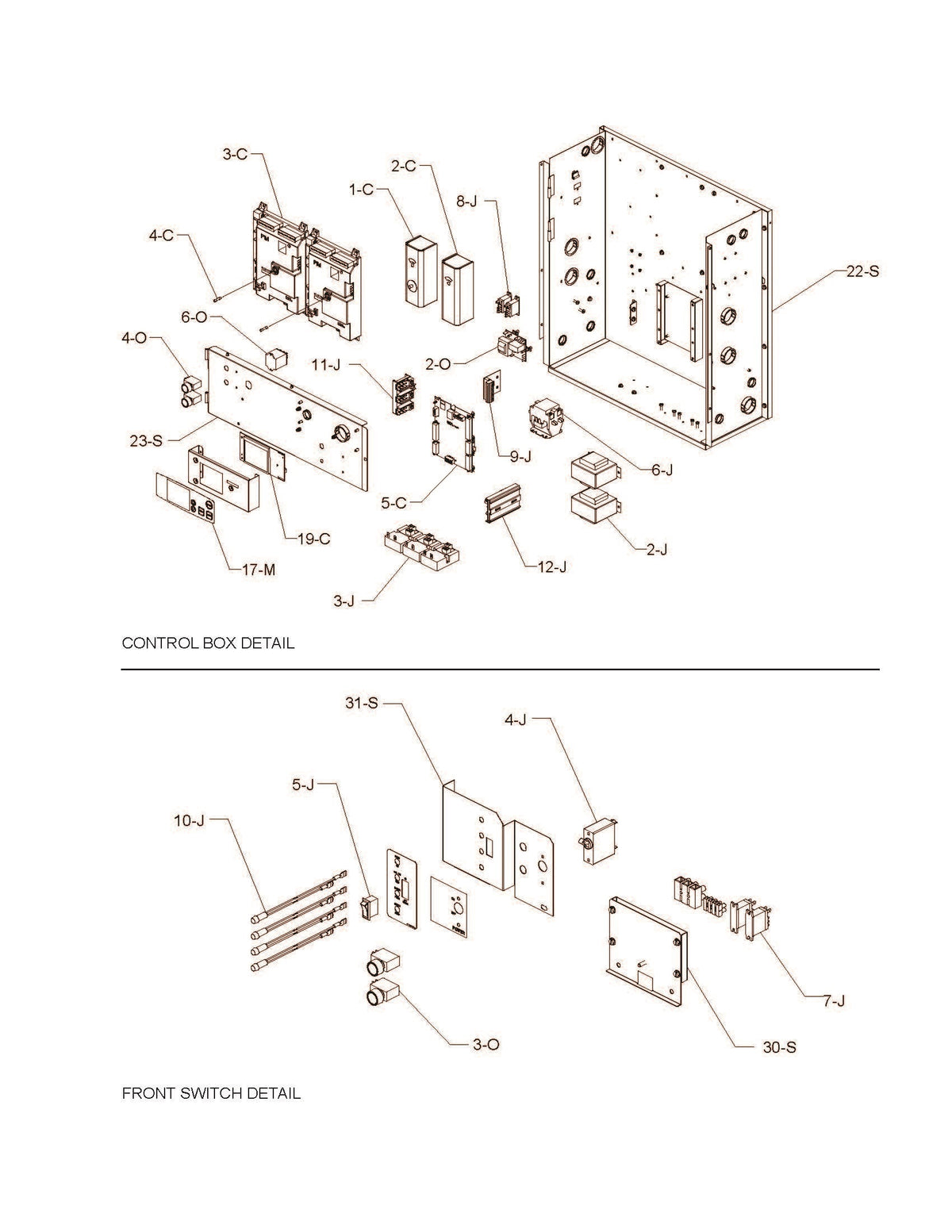

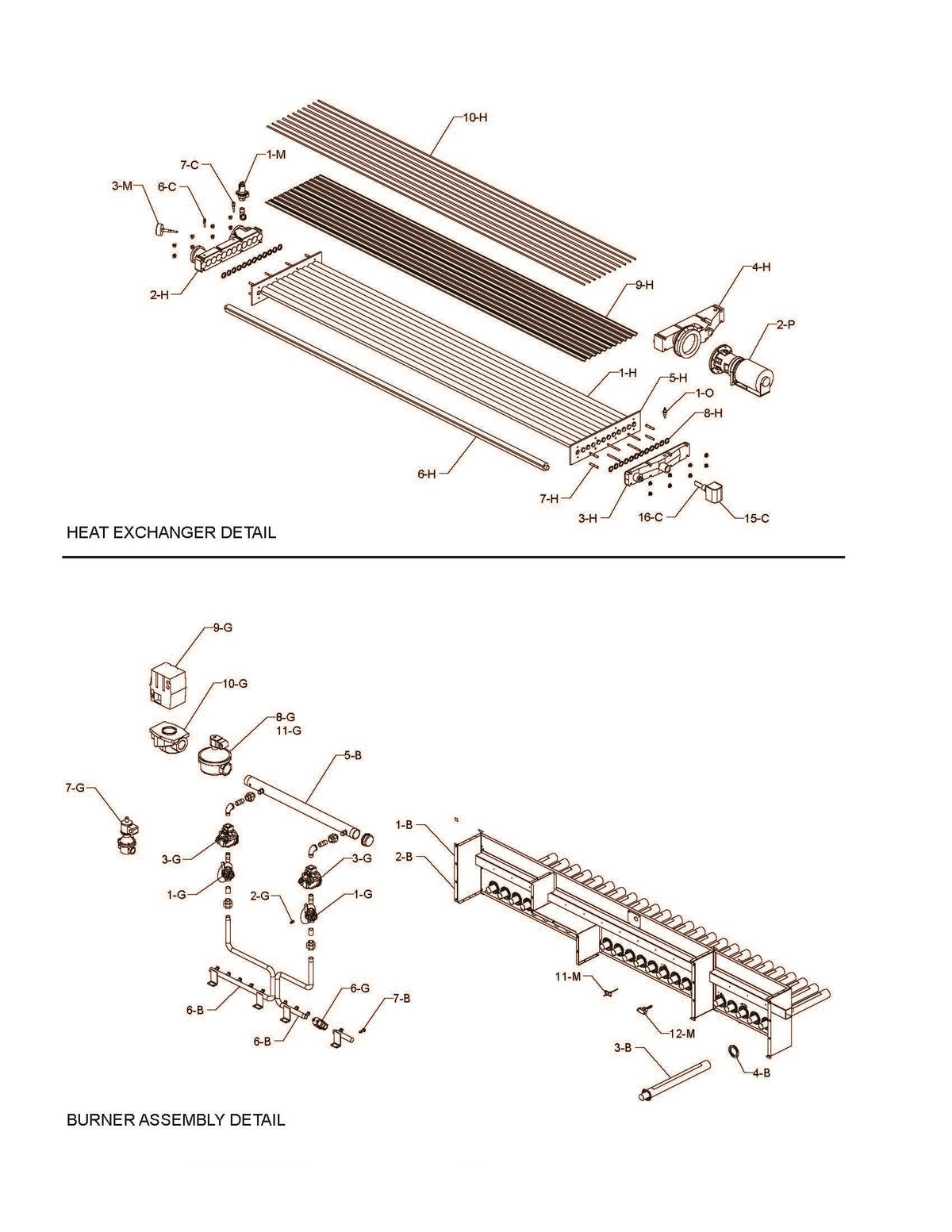

Replacement parts and exploded parts diagram for the Raypak Hi Delta Natural Gas Heater 1530K BTU with CAL CODE (model 100-10006501). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 009554F – Manual-Reset Adjustable High-Limit 180"F Max
- #1-G – 007189F – Valve Gas Manual A 1" (Low Gas Press.)
- #1-M – 007224F – PRV 125 PSI
- #2-J – 007494F – Transformer 100 VA
- #2-M – 052870F – Deliming Kit
- #2-P – 007348F – Inline Pumps
- #3-P – 013423F – Gasket Flat (2-Bolt)
- #5-J – 006872F – On/Off Switch Rocker
- #7-C – 013932F – Outlet/Limit Sensor (4-Wire)
- #8-H – 007834F – Header Gasket
- #11-H – 007211F – Sensor Well
- #12-H – 300203 – Well Retaining Clip
- #13-M – 750125 – Touch-Up Paint - Green
- #13-M – 750256 – Touch-Up Paint - Cool Dark Gray
- #18-C – 008171F – Switch Air Pressure Differential (Blower)
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-100-10006501
Brand: Raypak
Price range
$23.75 - $275.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Raypak Hi Delta Natural Gas Heater 1530K BTU with CAL CODE (model 100-10006501)
- 13 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Raypak replacement parts
- Add multiple parts to your cart at once
