Raypak Digital Electronic Cupro Nickel Heater Natural Gas Heater #51 180K BTU 014938 Parts & Diagram

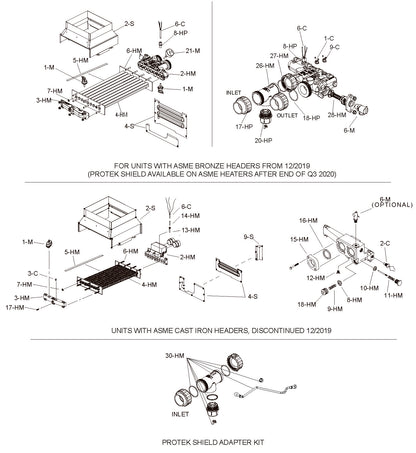

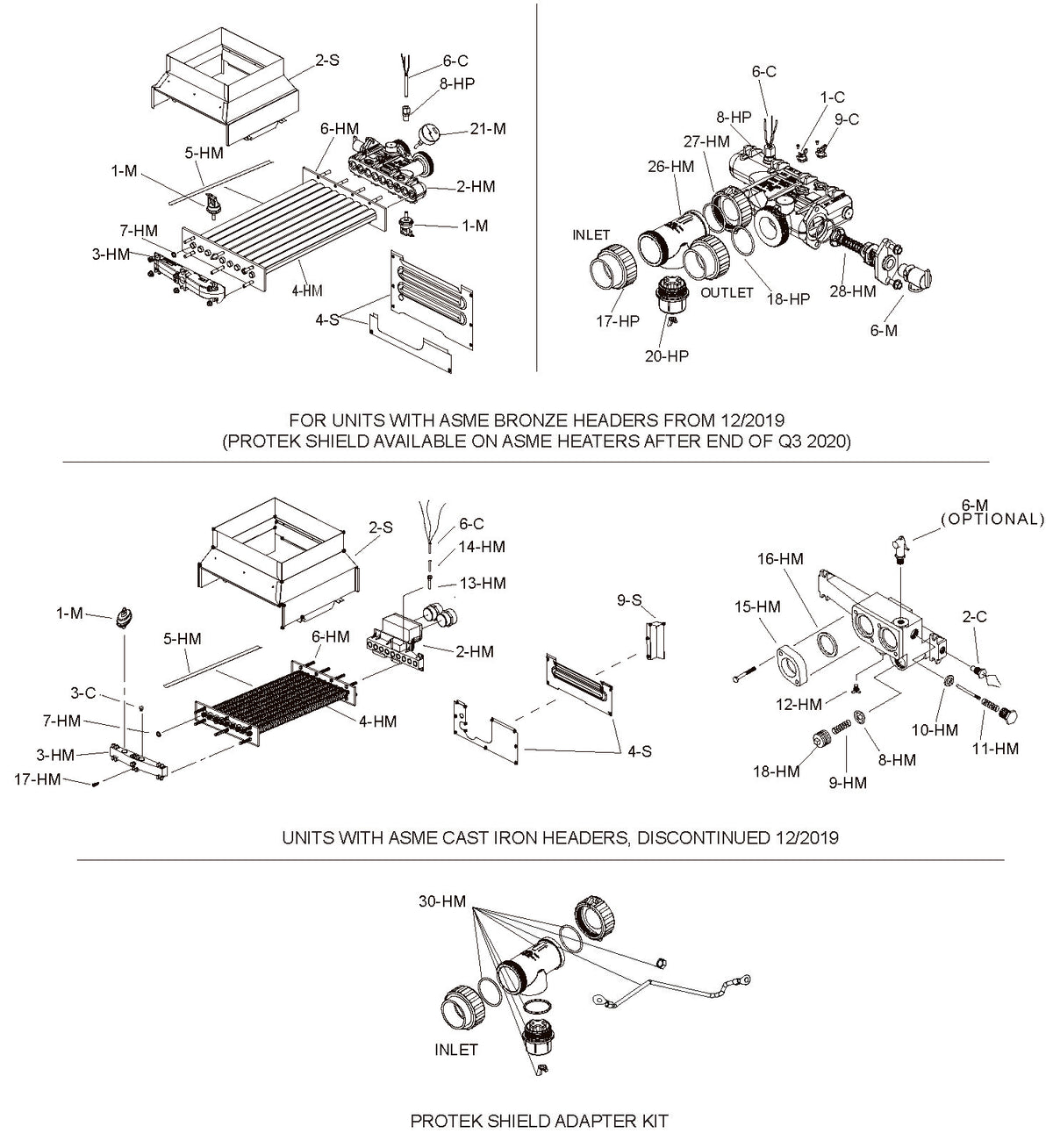

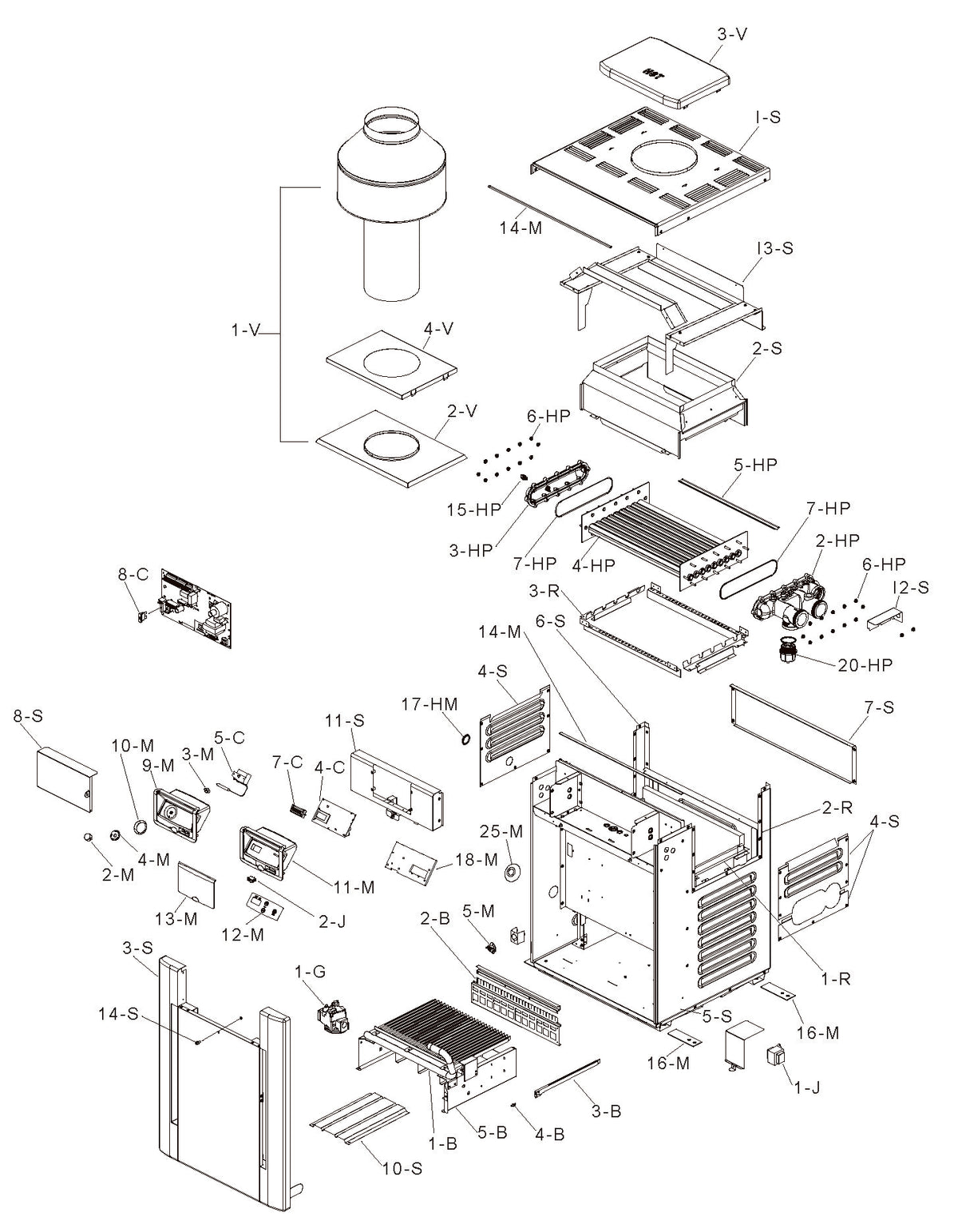

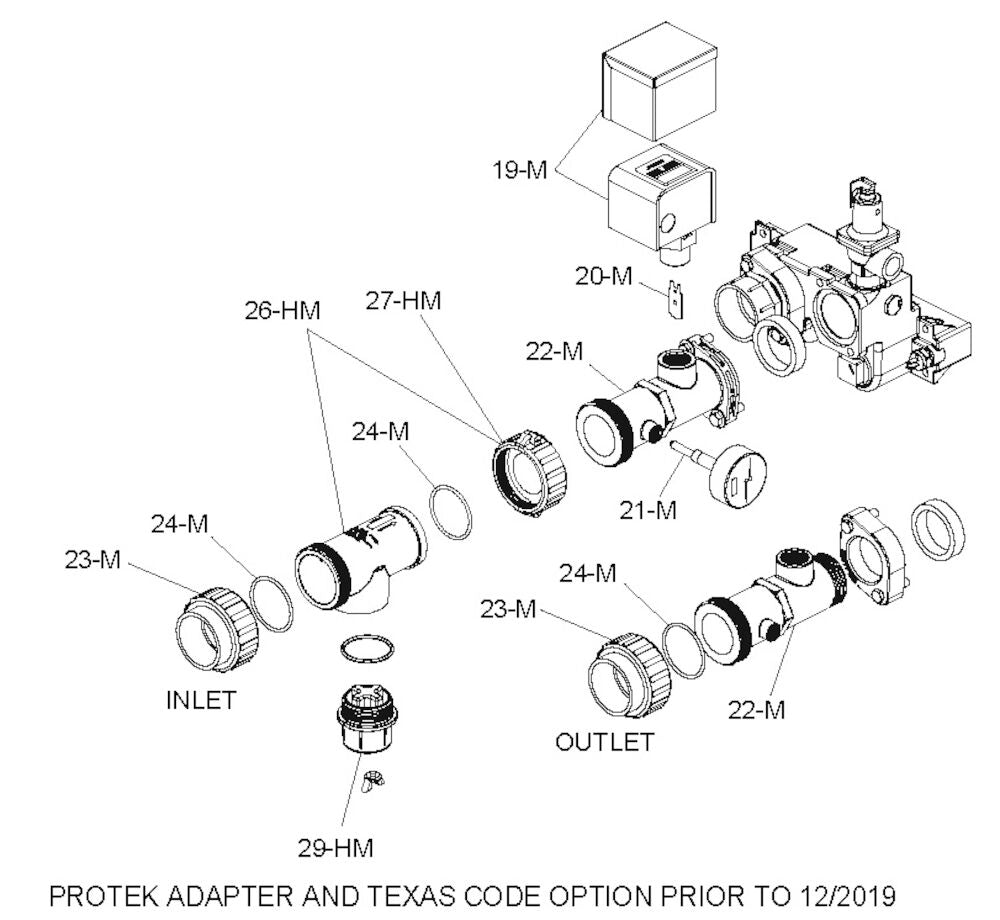

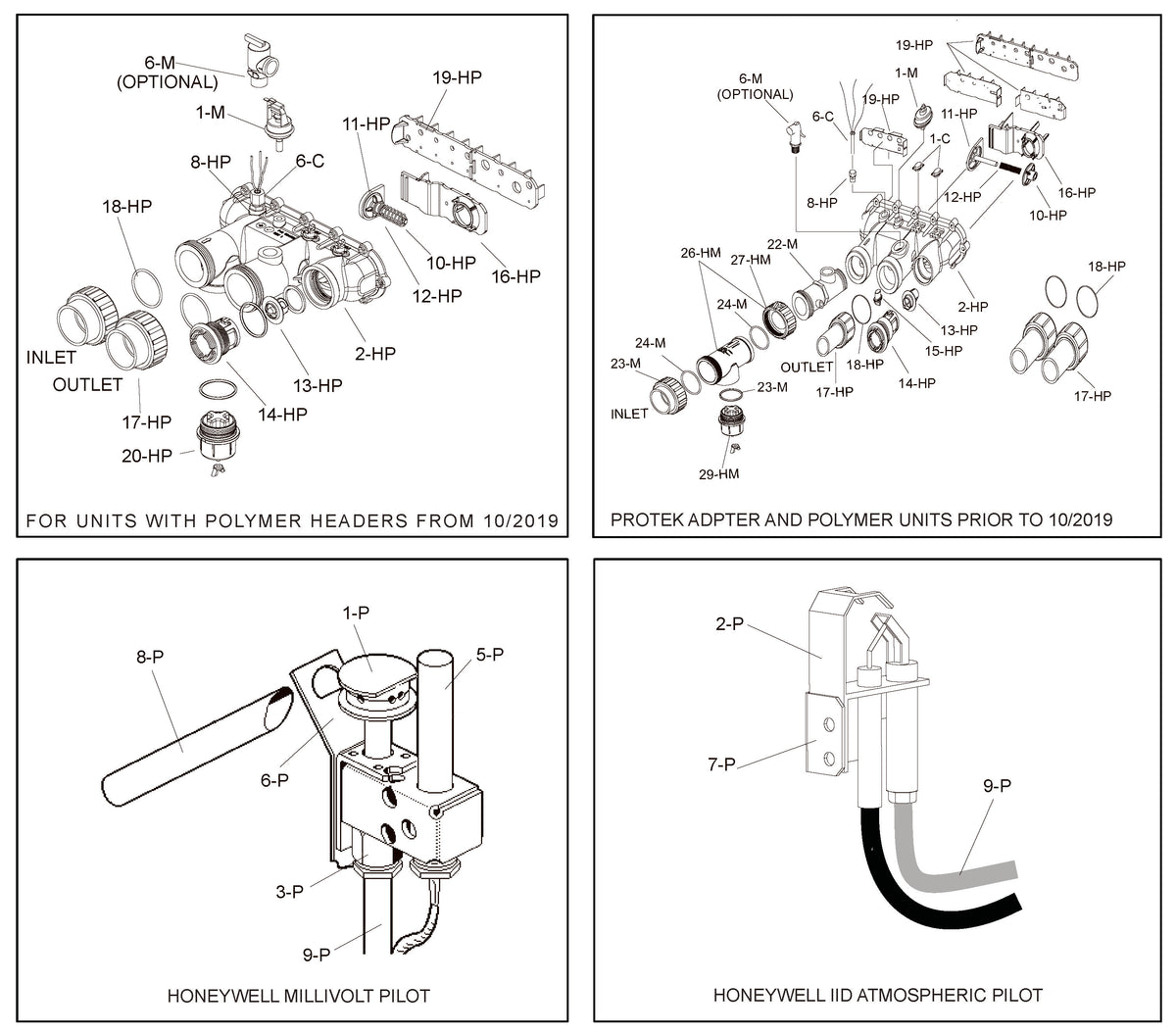

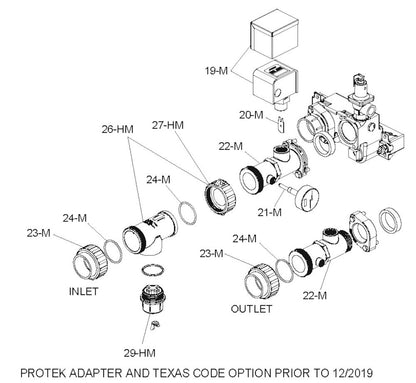

Replacement parts and exploded parts diagram for the Raypak Digital Electronic Cupro Nickel Heater Natural Gas Heater #51 180K BTU (model 014938). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-B – 010391F – Polymer Cu HX Burner Tray W/Burners Nat (sea level)
- #1-B – 010399F – Asme HX (Cu or Cupro)Burner Tray W/Gas Valve Nat Millivolt (sea level)
- #1-B – 010407F – NAT #50 Orifice Burner Tray W/Gas Valve Nat IID (sea level)
- #1-B – 010403F – Asme HX (Cu or Cupro) Burner Tray W/Gas Valve Pro Millivolt (sea level)
- #1-B – 010411F – PRO #57 Orifice Burner Tray W/Gas Valve Pro IID (sea level)
- #1-C – 006725F – High Limit Auto Reset 135°F Deg Surface
- #1-G – 003899F – Combination Valve - Pro. MV
- #1-G – 004306F – Combination Valve - Pro. IID
- #1-HP – 010043F – Heat Exchanger Assy Copper - Units Manufactured Prior to 10/2019
- #1-HP – 017994F – Polymer Kit Heat Exchanger for Digital Pool and Spa Heater Models 206/207
- #1-HP – 014926F – Heat Exchanger Assy Cupronickel - Units Manufactured From 7/2013 Thru 9/2019
- #1-HP – 010356F – Heat Exchanger Assy Cupronickel - Units Manufactured Prior to 7/2013
- #1-HP – 017998F – Polymer Cu-Ni Kit Heat Exchanger for Digital Pool and Spa Heater Models 206/207
- #1-HM – 010051F – Heat Exchanger Assy.Copper Asme - Units Manufactured Prior to 12/2019 (Cast Iron)
- #1-HM – 010360F – Heat Exchanger Assy.Cupronickel Asme - Units Manufactured Prior to 12/2019 (Cast Iron)
- #1-J – 006736F – Transformer 120/240/24V
- #1-M – 006737F – Pressure Switch 1.75 PSI
- #1-P – 600525B – Pilot Nat. MV
- #1-P – 600575B – Pilot Pro. MV
- #1-S – 010047F – Jacket Top (Louvered)
- #2-B – 010415F – Burner Spacer/Hold Down Kit
- #2-C – 600892B – AGS 135°F (Auto Gas Shut-Off) - Red Epoxy - Prior to 12/2019
- #2-HM – 006730F – Inlet/Outlet Header Asme Complete - Units Manufactured Prior to 12/2019 (Cast Iron)
- #2-HM – 017966F – Inlet/Outlet Header Asme (Header Only) - Units Manufactured From 12/2019 (Bronze)
- #2-HM – 012319F – Inlet/Outlet Header Asme (Header Only) - Units Manufactured Prior to 12/2019 (Cast Iron)
- #2-HM – 003766F – Inlet & Outlet Flange - Prior to 12/2019
- #2-HM – 062236B – Flange Gasket 1 1/2" Connections - Prior to 12/2019
- #2-J – 009493F – Rocker Switch
- #2-M – 009499F – Thermostat Knob
- #2-S – 010071F – Flue Collector (Units With Polymer Header)
- #2-S – 010075F – Flue Collector (Units With Metal Header) Door Assy
- #2-V – 010330F – Stack Adapter
- #3-C – 600893B – High Limit 140°F - Black Epoxy - Prior to 12/2019
- #3-HM – 006731F – Return Header Asme - Units Manufactured Prior to 12/2019 (Cast Iron)
- #3-M – 800307 – Thermostat Shaft MV
- #3-P – 003901F – Pilot Orifice Nat. MV
- #3-P – 003902F – Pilot Orifice Pro. MV
- #3-R – 010387F – Refractory Retainer Kit
- #3-S – 013859F – Door Assy for Ruud - Cool Dark & Warm Dark Gray (Units mfd After 9/2012)
- #3-S – 010378F – Door Assy for Raypak - Green
- #3-S – 013863F – Door Assy for Rheem - Cool Dark & Warm Dark Gray
- #3-S – 010382F – Door Assy for Ruud - Green
- #3-S – 013867F – Door Assy for Ruud - Warm Dark Gray (Units Manufactured Prior to 9/2012)
- #3-V – 013883F – Pagoda" Top - Cool Dark Gray3-V|10334|"Pagoda" Top - Greengas Conversion - Nat. to Pro. MV Pilot|004690B|Gas Conversion - Pro. to Nat. MV Pilot|010419F|Gas Conversion - Nat. to Pro. IID Pilot||Gas Conversion - Pro. to Nat. IID Pilot||
- #4-HP – 010059F – Tube Bundle Copper
- #4-HP – 010364F – Tube Bundle Cupronickel - Units Manufactured Prior to 7/2013
- #4-HM – 010055F – Tube Bundle Copper Asme - Units Manufactured Prior to 12/2019
- #4-HM – 010368F – Tube Bundle Cupronickel Asme - Units Manufactured Prior to 12/2019
- #4-M – 006886F – Knobstop
- #4-P – 003903F – Pilot Orifice Nat. IID .020
- #4-P – 004308F – Pilot Orifice Pro. IID .012
- #4-S – 010312F – Access Panel Set - Asme (3 Pcs. for CI Header) - Prior to 12/2019
- #4-V – 011461F – Outer Stack Adapter
- #5-C – 003346F – Thermostat Control MV Units Mechanical
- #5-HM – 010038F – Baffle
- #5-HP – 014934F – Baffle (Cupronickel Heat Exchanger) - Units Manufactured From 6/2013
- #5-M – 005899F – Thermal Fuse
- #5-P – 600019B – Pilot Generator MV
- #6-C – 009577F – Temperature Sensor IID Units
- #6-HP – 008259F – Flange Nut Kit
- #6-HM – 017982F – Stud Bolt Kit - Units Manufactured From 12/2019
- #6-HM – 007870F – Stud Bolt Kit - Units Manufactured Prior to 12/2019
- #6-P – 010352F – Pilot MTG Bracket MV
- #6-S – 010377F – Jacket Side Panel Left
- #7-C – 013640F – LCD Display - Units Manufactured From 5/2011
- #7-HP – 006713F – O Ring Gasket (2)
- #7-HM – 800014B – Header Gasket (9)
- #7-P – 306692 – Pilot Mounting Bracket IID
- #8-HP – 006714F – Sensor Adapter Digital Electronic
- #8-HP – 006805F – Sensor Well Millivolt
- #8-HM – 062234B – Unitherm Governor
- #8-M – 010386F – Wire/Harness Millivolt
- #8-M – 009490F – Wire/Harness IID
- #8-M – 013817F – Wire/Harness IID Kit for Atmospheric Models 268A-408A
- #9-HP – 006715F – Bypass Kit
- #9-HM – 013792F – U.G. Retainer Spring
- #9-M – 009489F – Control Bezel MV (Includes Dial Decal)
- #9-P – 004078F – Pilot Tube
- #9-S – 010319F – High Limit Cover - Prior to 12/2019
- #10-HP – 006716F – Bypass Valve
- #10-M – 009858F – Dial Decal MV
- #10-S – 010320F – Base Heat Shield - Prior to 10/2019
- #11-HP – 006717F – Bypass Dam / Shaft
- #11-HM – 016196F – Bypass Spring - Units With Plastic Bypass Valve (Units Manufactured From 3/5/17 to 12/19)
- #11-HM – 013793F – Drain Valve
- #11-S – 010321F – Up Front Control Panel - Green
- #11-S – 013887F – Up Front Control Panel - Cool Dark Gray
- #11-S – 013891F – Up Front Control Panel - Warm Dark Gray
- #12-HP – 006718F – Bypass Spring (All Sizes Included)
- #12-HM – 003765F – Sensor Well
- #12-M – 009492F – Switch/Decal-membrane - Units Manufactured Prior to 5/2011
- #12-S – 010342F – High Limit Shield
- #13-HP – 006719F – Unitherm Governor
- #13-HM – 300203 – Well Retaining Clip
- #13-M – 009487F – Control Bezel Cover
- #13-S – 010325F – Weather Shield
- #14-HP – 006720F – Unitherm Governor Plug
- #14-HM – 005264F – Rear Drain Plug & Cover
- #14-M – 010350F – Gasket Insulation (Swaybrace & Jacket Top)
- #15-HP – 006721F – Drain Plug
- #15-HM – 800080B – Flange Gasket 2" Connections - Prior to 12/2019
- #15-HM – 018738F – Return Header Asme - Units Manufactured From 7/2020 (Bronze)
- #15-M – 750125 – Touch-Up Paint - Green
- #15-M – 750126 – Touch-Up Paint - Dark Gray
- #15-M – 750256 – Touch-Up Paint - Cool Dark Gray
- #15-M – 750258 – Touch-Up Paint - Warm Dark Gray
- #16-HM – 017973F – Return Header Asme - Units Manufactured From 12/2019 (Bronze)
- #17-HM – 005393F – Adapter Cpvc 2"
- #17-M – 015889F – Texas Code Option (ASME Only) - Units Manufactured Prior to 12/2019 - Flanged Connection (Not Shown)
- #19-HP – 006826F – Inlet/Outlet Header Baffle W/Header Dam
- #22-M – 013795F – 2" Cpvc Connector (Outlet Plumbing) - NPT Connection
- #24-M – 006724F – O Ring (2)
- #27-HM – 017958F – U.G./Bypass Assembly (Units Manufactured From 12/2019)
