Raypak Digital 266A 266 BTU Natural Gas Heater 009217 Parts & Diagram

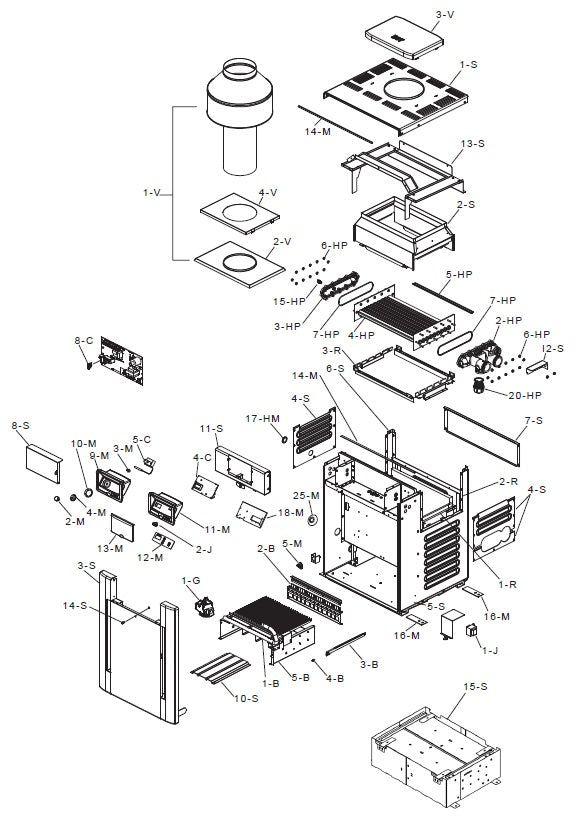

Replacement parts and exploded parts diagram for the Raypak Digital 266A 266 BTU Natural Gas Heater (model 009217). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-B – 010400F – Asme HX (Cu or Cupro)
- #1-J – 006736F – Transformer 120/240/24V
- #1-S – 010048F – Jacket Top (Louvered)
- #2-B – 010416F – Burner Spacer/Hold Down Kit
- #2-J – 009493F – Rocker Switch
- #2-M – 009499F – Thermostat Knob
- #2-S – 010072F – Flue Collector (Units with Polymer Header)
- #2-S – 010076F – Flue Collector (Units with Metal Header)
- #2-V – 010331F – Stack Adapter
- #3-M – 800307 – Thermostat Shaft MV
- #3-R – 010388F – Refractory Retainer Kit
- #3-S – 013860F – Door Assy - Cool Dark & Warm Dark Gray
- #3-S – 010379F – Door Assy - Green
- #3-V – 013884F – Pagoda" Top - Cool Dark Gray|3-V|010335|"Pagoda" Top - Green|4-V|011462F|Outer Stack Adapter|
- #3-V – 010335 – Pagoda Top - Green
- #4-HP – 010060F – Tube Bundle Copper (WARNING: The Hydraulic conditions or water chemistry that caused the tube bundle to fail have very likely also damaged the bypass valve and Unitherm Governor. Raypak recommends you replace the Unitherm Governor and inspect the bypass assembly. Failure to do so could cause premature failure of this replacement part. WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.)
- #4-M – 006886F – Knobstop
- #4-S – 010312F – Access Panel Set (3 Pcs. for CI Header) - Prior to 12/2019
- #4-V – 011462F – Outer Stack Adapter
- #5-C – 003346F – Thermostat Control MV Units Mechanical
- #5-HP – 005261F – Baffle (Copper Heat Exchanger)
- #5-M – 005899F – Thermal Fuse
- #6-HP – 008259F – Flange Nut Kit
- #6-S – 010377F – Jacket Side Panel Left
- #7-HP – 006713F – O-Ring Gasket (2 Pieces)
- #7-S – 010373F – Jacket Rear Panel (2 Pieces)
- #9-M – 009489F – Control Bezel MV (Includes Dial Decal)
- #10-M – 009858F – Dial Decal MV
- #10-S – 010320F – Base Heat Shield - Prior to 10/2019
- #11-S – 010322F – Up Front Control Panel - Green
- #11-S – 013888F – Up Front Control Panel - Cool Dark Gray
- #11-S – 013892F – Up Front Control Panel - Warm Dark Gray
- #12-M – 009492F – Switch/Decal-membrane - Units Manufactured Prior 5/2011
- #12-S – 010342F – High Limit Shield
- #13-M – 009487F – Control Bezel Cover
- #13-S – 010326F – Weather Shield
- #14-M – 010350F – Gasket Insulation (Swaybrace & Jacket Top)
- #15-HP – 006721F – Drain Plug
- #17-HM – 005264F – Rear Drain Plug & Cover
Please confirm your model number matches your existing equipment before ordering.
