Raypak Crosswind V Standard Pool & Spa Heat Pump 95K BTU 208-230V TWPH-5550EHT08 Parts & Diagram

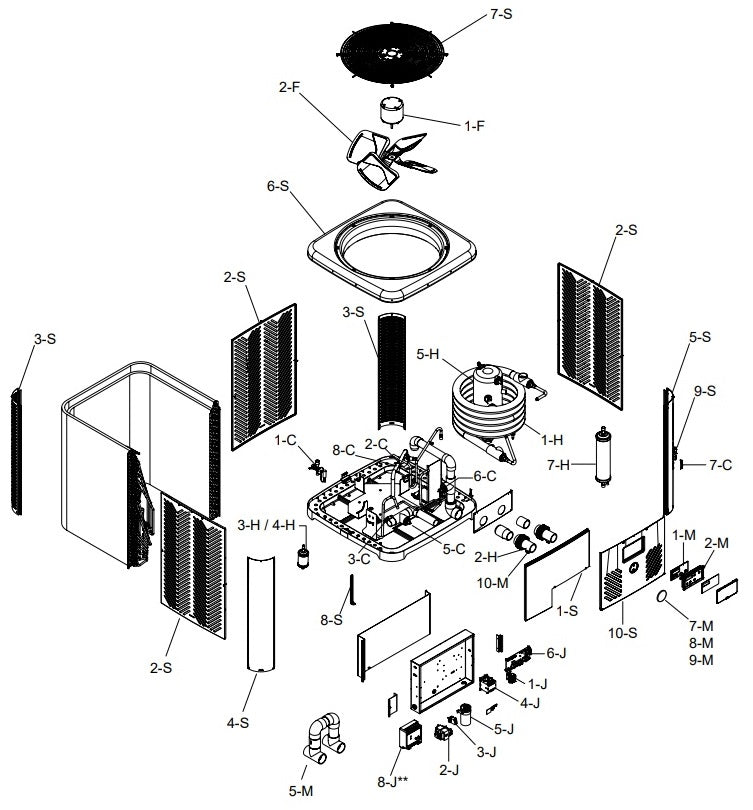

Replacement parts and exploded parts diagram for the Raypak Crosswind V Standard Pool & Spa Heat Pump 95K BTU 208-230V (model TWPH-5550EHT08). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 100-10000386 – TX Valve
- #1-F – 100-10000638 – Fan Motor
- #1-M – 100-10000390 – PC Board Display
- #1-S – 100-10000402 – Access Panel
- #2-C – 100-10000633 – Low Pressure Switch
- #2-F – 100-10000639 – Fan Blade
- #2-J – 100-10000640 – Transformer
- #2-M – 100-10000391 – Bezel Gasket
- #2-S – 100-10000403 – Side Panel
- #3-C – 100-10000634 – High Pressure Switch
- #3-H – H000011 – Liquid Line Drier
- #3-M – 100-10000393 – UI Harness (Not shown)
- #3-S – 100-10000404 – Corner Louver Panel
- #4-M – 100-10000401 – Touch-Up Paint (Not Shown)
- #4-S – 100-10000405 – Corner Solid Panel
- #5-C – 100-10000635 – Inlet Temp Sensor 100K
- #5-S – 100-10000406 – Corner Plug Holes Panel
- #6-C – 100-10000636 – Outlet Temp Sensor 10K
- #6-H – H000271 – Compressor Power Plug (Not Shown)
- #6-J – 100-10000389 – Control Board Digital
- #6-M – H000166 – Water Flow Switch (Not Shown)
- #6-S – 100-10000407 – Jacket Top
- #7-C – 100-10000637 – Ambient Temp Sensor
- #7-S – 100-10000641 – Grille Fan Guard
- #8-C – 100-10000643 – Coil Defrost Sensor
- #8-J – H000291 – Monitor (8-J Monitor is optional on voltage monitor models)
- #9-C – 100-10000394 – Harness Assy J-Box
- #10-C – 100-10000396 – Harness Assy/Fan
- #10-S – 100-10000388 – Front Cover Panel
- #11-C – 100-10000397 – Harness Assy Contactor
- #12-C – 100-10000398 – Harness Assy Rev Valve/Press Switches
- #13-C – 100-10000399 – Harness Assy-Temp Sensor
- #14-C – 100-10000644 – Harness Reversing Valve Connector (EHC models only)
- #15-C – 100-10000690 – Variable-Speed Pump Harness
- #16-C – 100-10000689 – Single-Speed Pump Harness
- #17-C – 100-10000688 – Solar Sensor and Aux Safety Harness
Please confirm your model number matches your existing equipment before ordering.
