Raypak Avia Digital Low NOx Propane Gas Heater 264K BTU 018038 Parts & Diagram

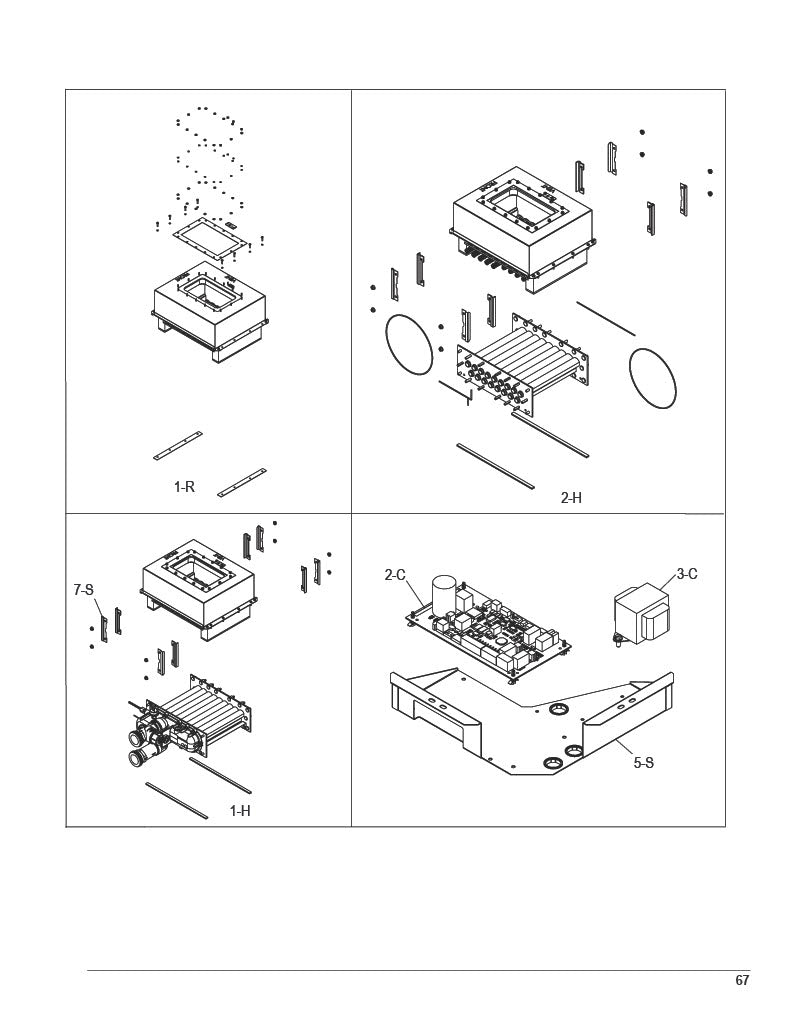

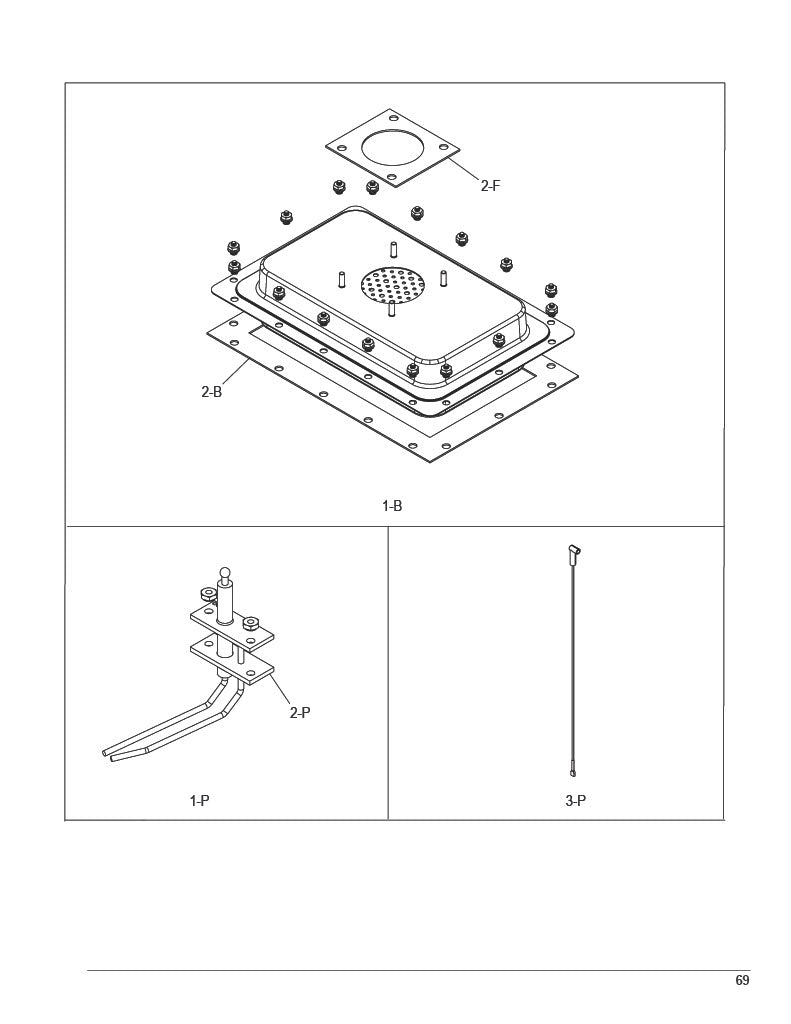

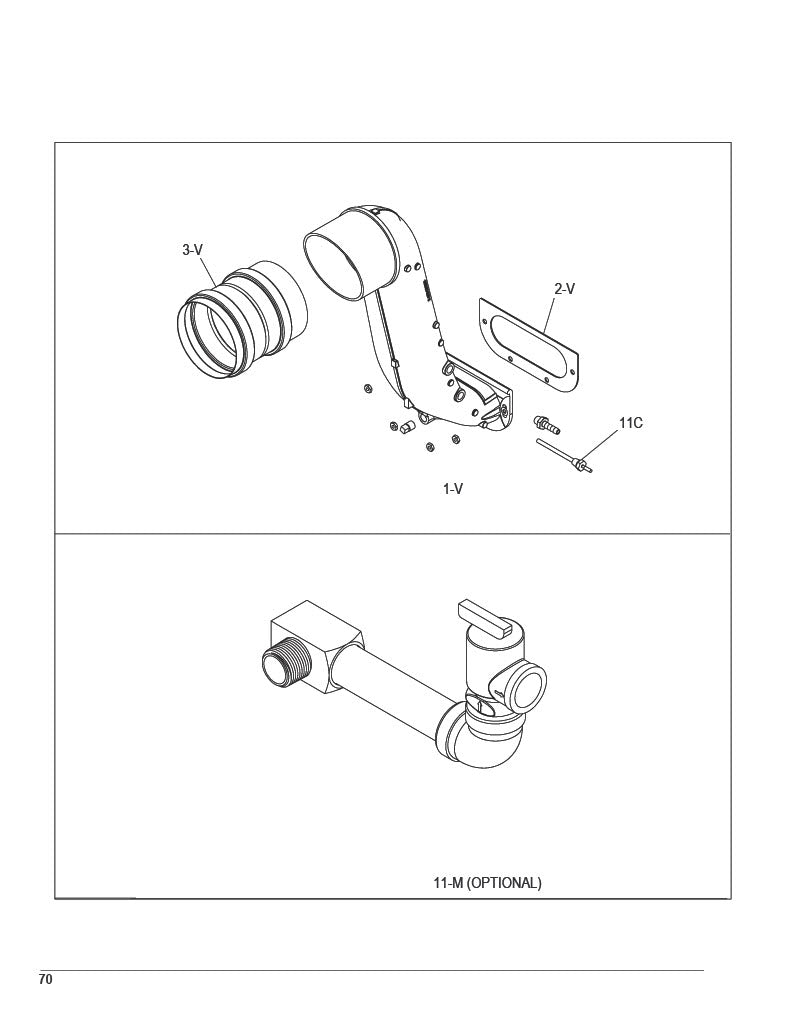

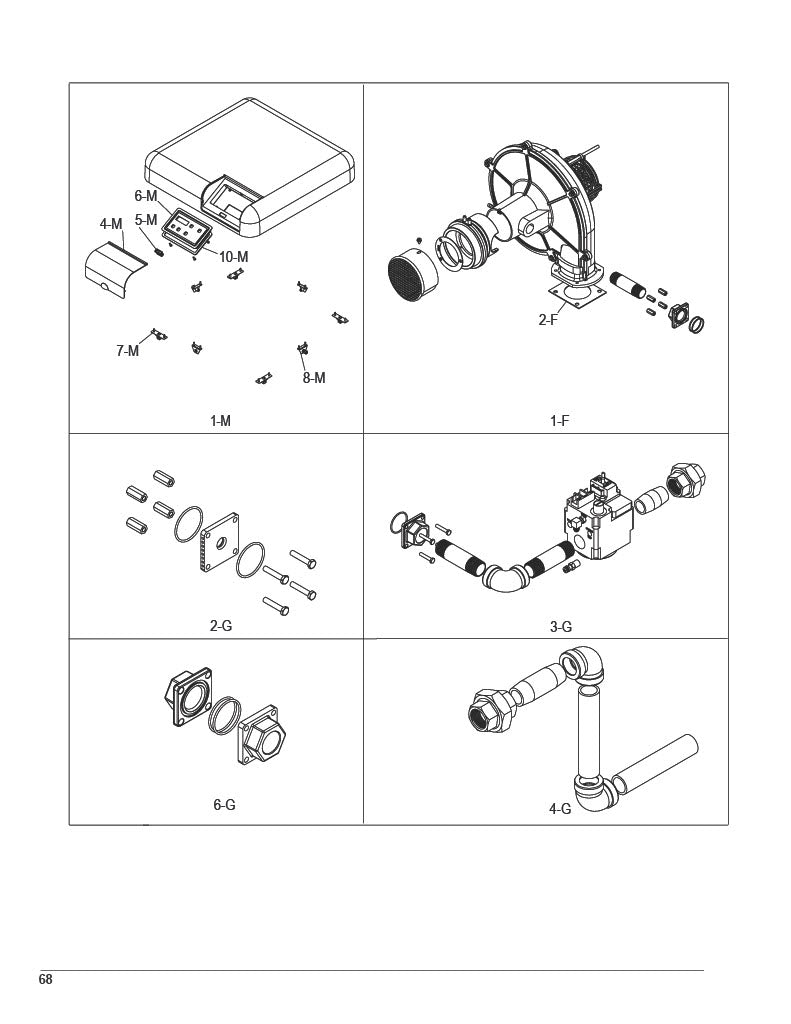

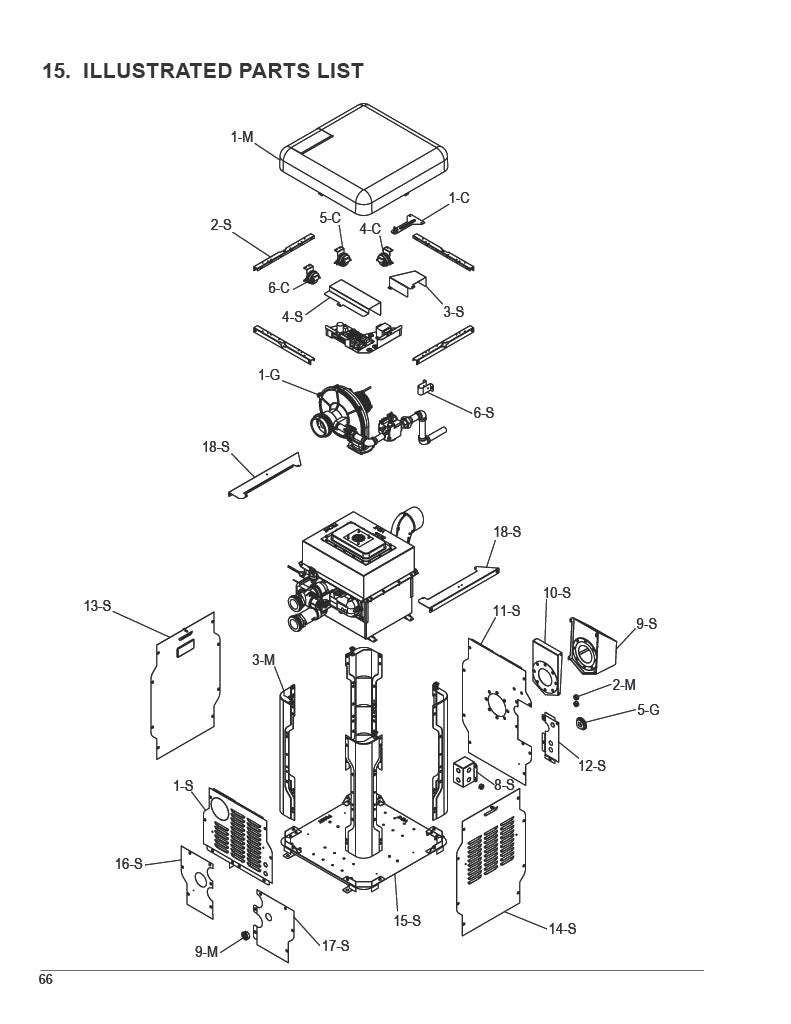

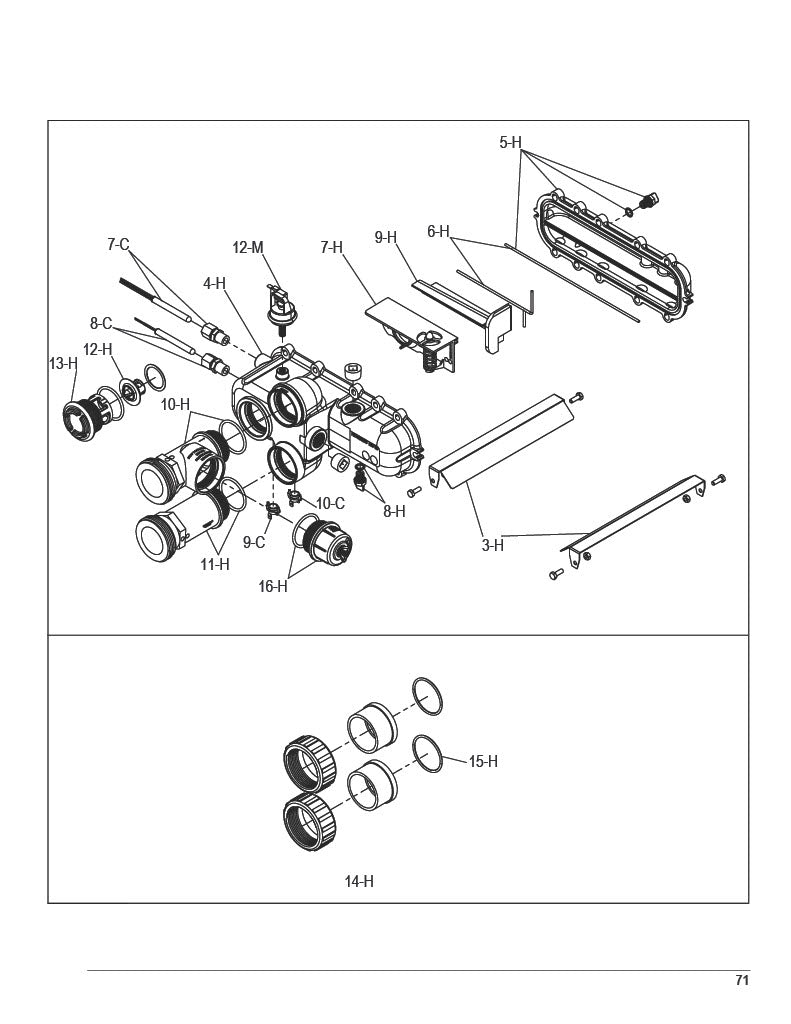

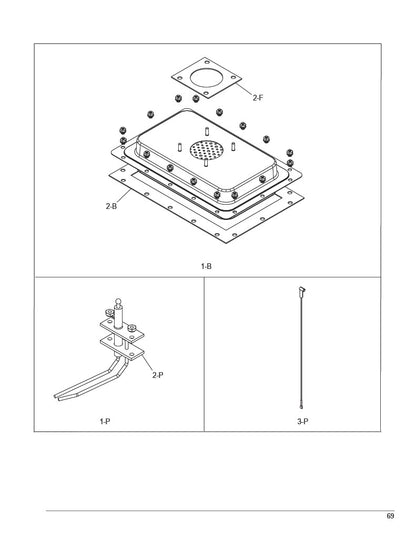

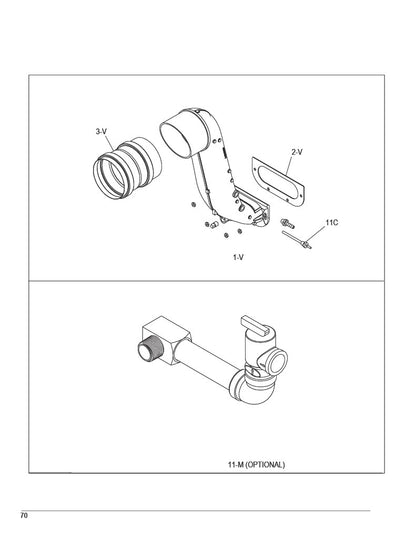

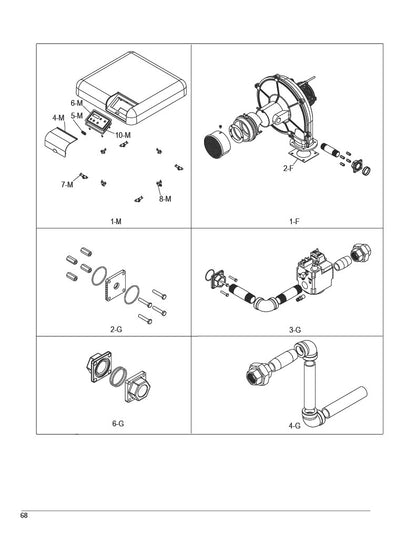

Replacement parts and exploded parts diagram for the Raypak Avia Digital Low NOx Propane Gas Heater 264K BTU (model 018038). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-C – 018853F – Kit-Temp Sensor Limit
- #1-F – 018865F – Kit-Blower Comb Air
- #1-F – 100-10004897 – Blower Comb Air 264 Kit
- #1-G – 018861F – Blower/Gas Train Assy Kit-blower/Gas Train Natural (0-4500 Ft)
- #1-G – 018863F – Blower/Gas Train Assy Kit-blower/Gas Train Propane (0-4500 Ft)
- #1-P – 018874F – Kit-Igniter Direct Spark
- #1-V – 018877F – Kit-Flue Exhaust
- #2-B – 018878F – Kit-Burner Gasket
- #2-C – 018857F – Kit-Ignition Board
- #2-F – 018898F – Kit-Blower Gasket
- #2-G – 018866F – Kit-Gas Orifice Natural (0-4500 Ft)
- #2-G – 018868F – Kit-Gas Orifice Propane (0-4500 Ft)
- #2-M – 018884F – Kit-Power Cable Grommet
- #2-P – 018879F – Kit-Igniter Gasket
- #2-V – 018880F – Kit-Flue Exhaust Gasket
- #3-C – 018858F – Kit-Transformer 120/240/24V
- #3-G – 018870F – Kit-Gas Valve w/ Gas Line Half
- #3-G – 100-10004768 – Gas Valve With Gas Line Half Kit
- #3-P – 018875F – Kit-Hi Tension Wire
- #3-V – 018932F – Kit-Flue Adapter 4" SS
- #4-C – 018928F – Kit-Pressure Vent
- #4-H – 019049F – Kit-inlet/Outlet Header Complete
- #4-H – 019050F – Kit-Inlet /Outlet Header
- #5-C – 018929F – Kit-Pressure Air
- #5-H – 019051F – Kit-Return Header
- #5-M – 018903F – Kit-Power Switch
- #6-C – 018930F – Kit-Pressure Differential
- #6-G – 018926F – Kit-Adapter Gas Orifice
- #6-H – 019052F – Kit-Header Gasket (2)
- #6-M – 018904F – Kit-Beze
- #6-S – 018860F – Kit-Anti Rotation Gas Valve Bracket
- #7-C – 019042F – Kit-Temperature Inlet Sensor
- #7-H – 019053F – Kit-Bypass Assy (w/Coils) Level 0 Flow
- #7-H – 019054F – Kit-Bypass Assy (w/Coils) Level 1 Flow (Nominal)
- #7-M – 018905F – Kit-Top Clip Assy
- #7-S – 018872F – Kit-Comb Chamber Seal
- #8-C – 019043F – Kit-Temperature Outlet Sensor
- #8-H – 006721F – Capron Drain Plug For Model R185A, R265A, R335A, R405A Pool Heater
- #8-M – 018906F – Kit-Top Knurled Screw Assy
- #9-C – 019044F – Kit-High Limit 2-HL2-Surface Mount
- #9-H – 019059F – Kit-inlet/Outlet Header Dam
- #9-M – 018920F – Kit-Prv Grommet
- #10-C – 019045F – Kit-High Limit 1-HL1-Surface Mount
- #10-M – 018921F – Kit-Bezel Gasket
- #11-C – 019046F – Kit-Temperature Vent Sensor
- #12-H – 019062F – Kit-Unitherm Governor
- #12-M – 006737F – Direct Mount Pressure Switch
- #13-H – 019063F – Kit-Unitherm Governor Plug Polymer
- #13-M – 007155F – Kit-Wire Bonding 14/6 Connector
- #15-H – 006724F – 2 Piece O-Ring Kit For 2" Connector Used In Model R185A, R405A Pool Heater
- #15-M – 019064F – Kit-wire/Harness (Not Shown)
- #16-M – 750256 – Cool Dark Grey Aerosol Paint (Not Shown)
- #16-M – 750258 – Warm Dark Grey Aerosol Paint (Not Shown)
