Raypak 267A Low NOx Digital Heater #26 with Bronze Headers 017706 Parts & Diagram

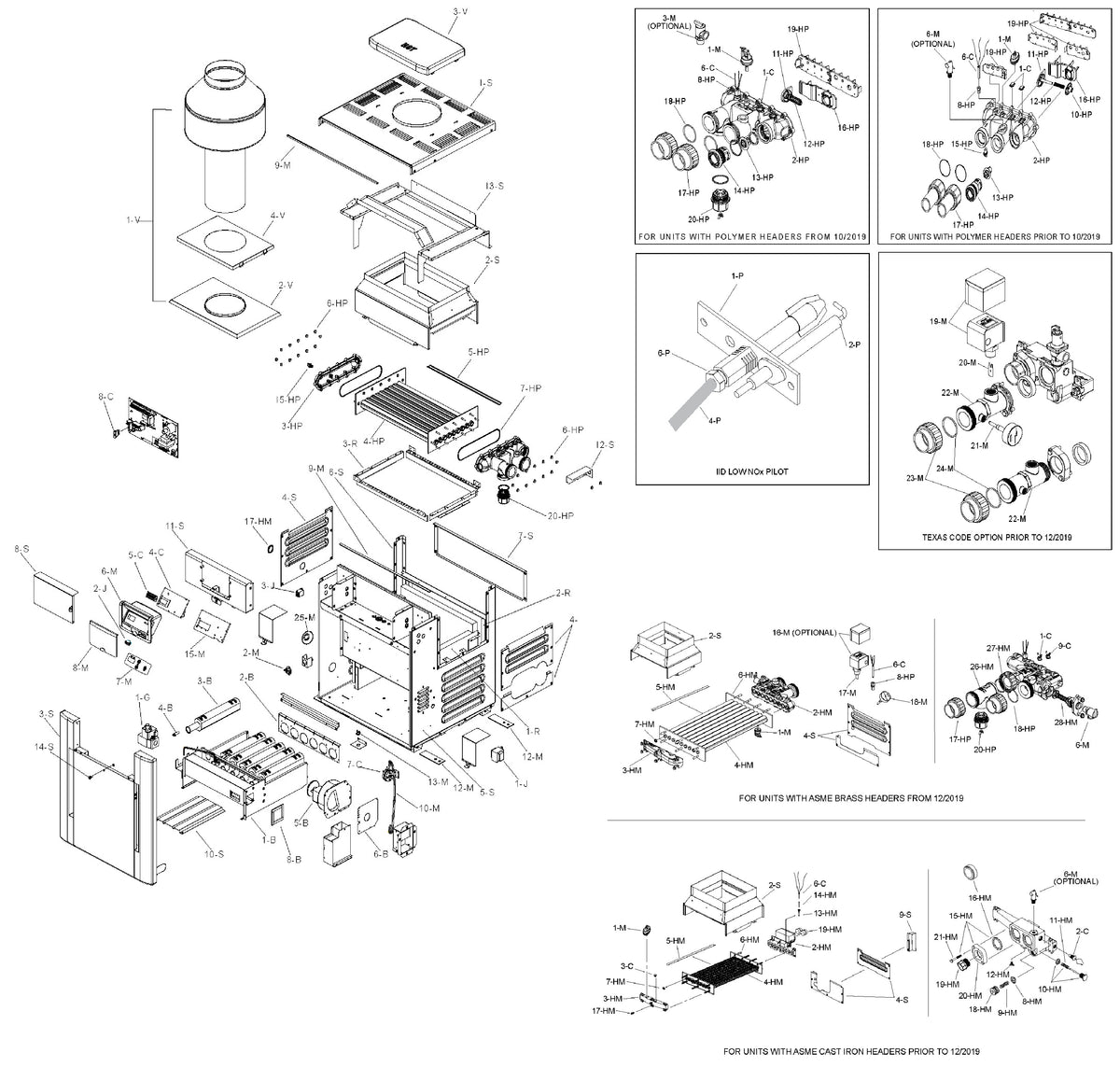

Replacement parts and exploded parts diagram for the Raypak 267A Low NOx Digital Heater #26 with Bronze Headers (model 017706). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-J – 006736F – 120/240V Transformer
- #1-M – 006737F – 1.75PSI Pressure Switch
- #1-P – 010232F – 207-407 NG IID Pilot Assy
- #2-C – 600892B – .25"-18MPT 135^F Auto Reset High Limit Kit (Red Epoxy; Prior to 12/2019 )
- #2-HM – 006730F – Cast Iron Inlet/ Outlet Header (Units manufactured prior to 12/2019 (Cast Iron) )
- #2-HM – 012319F – 185-405 206-407 CI Inlet/Outlet Header (Units manufactured prior to 12/2019 (Cast Iron) )
- #2-J – 009493F – Spst Rocker Switch
- #2-M – 006035F – 300^F Roll OUT Switch
- #3-C – 600893B – .25"-18MPT 140^F Auto Reset High Limit Kit (Black Epoxy; Prior to 12/2019 )
- #4-S – 010312F – 206-406 207-407 Metal Access Panel SET (3 Pieces included in pack for CI Header; Prior to 12/2019 )
- #5-B – 010042F – 207A- 407A Combination AIR Blower Kit
- #5-C – 013640F – LCD Display Module (Units manufactured from 5/2011 )
- #5-M – 010347F – 207A- 407A IID Wire Harness
- #5-P – 010349F – 207A- 407A High Tension Wire
- #5-S – 010313F – 207A 267A 337A 407A Jacket Right Side Panel
- #6-C – 009577F – 3-WIRE IID Temperature Sensor
- #6-HP – 008259F – .25-20 Flange Nut Kit
- #6-HM – 007870F – 206A 266A 336A 406A Stud Bolt Kit (Units manufactured prior to 12/2019 )
- #7-B – 010871F – 207A- 407A LOW NOX Cooling Fan Kit
- #7-HP – 006713F – 2/PK Polymer Header Oring Gasket (2 included in pack )
- #7-HM – 800014B – .75" 185A- 405A Flat Header Gasket (9 included in pack )
- #7-M – 009492F – Switch/Decal-membrane (Units manufactured prior to 5/2011 )
- #8-HP – 006714F – Sensor Adapter
- #8-HM – 062234B – 155B-408 Unitherm Governor Kit
- #8-M – 009487F – 206- 407/ R185B- R405B Control Bezel Cover
- #9-HM – 013792F – 155B- 405/ 206/ 408A Unitherm GOV Retainer Spring
- #10-S – 010320F – 206A- 406A/ 207A- 407A Base Heat Shield (Prior to 10/2019 )
- #11-M – 750125 – 12.75OZ Forest Green Aerosol Touch-Up Paint (Green )
- #11-M – 750126 – 12.75OZ Charcoal GRY Aerosol Touch-Up Paint (Dark Grey )
- #11-M – 750256 – Cool Dark GRY Touch-Up Paint (Cool Dark Grey )
- #11-M – 750258 – Warm Dark GRY Touch-Up Paint (Warm Dark Grey )
- #12-HM – 013793F – 1/8"NPT 206A- 406A Drain Valve
- #13-HP – 006719F – 185-407 Unitherm Governor
- #13-HM – 003765F – 105A-408 Sensor Well
- #14-HP – 006720F – 185-407 Capron Unitherm Governor Plug
- #14-HM – 300203 – 206A- 406A Bulb Retainer Clip
- #15-HM – 003766F – 1.5"/2" CI Inlet/Outlet Flange Kit (Complete; Prior to 12/2019 )
- #16-HM – 062236B – 2/PK 1.5" Flange Gasket (Prior to 12/2019 )
- #16-HM – 800080B – 2/PK 2" Flange Gasket (Prior to 12/2019 )
- #17-HM – 005264F – 206A- 406A/ 207A- 407A Rear Drain Plug & Cover
- #19-HM – 005393F – 2" Cpvc Inlet Adapter
- #19-M – 013795F – 2" Cpvc Outlet Connector W/ Flange Gasket (NPT Connection; Outlet Plumbing )
- #21-M – 006724F – 2" Connector Oring Kit (2 included in pack )
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-017706
Brand: Raypak
Price range
$4.68 - $489.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Raypak 267A Low NOx Digital Heater #26 with Bronze Headers (model 017706)
- 29 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Raypak parts plus compatible alternates
- Add multiple parts to your cart at once
