Raypak 206A Digital Propane Heater 0'-2000' 180 BTUH 014950 Parts & Diagram

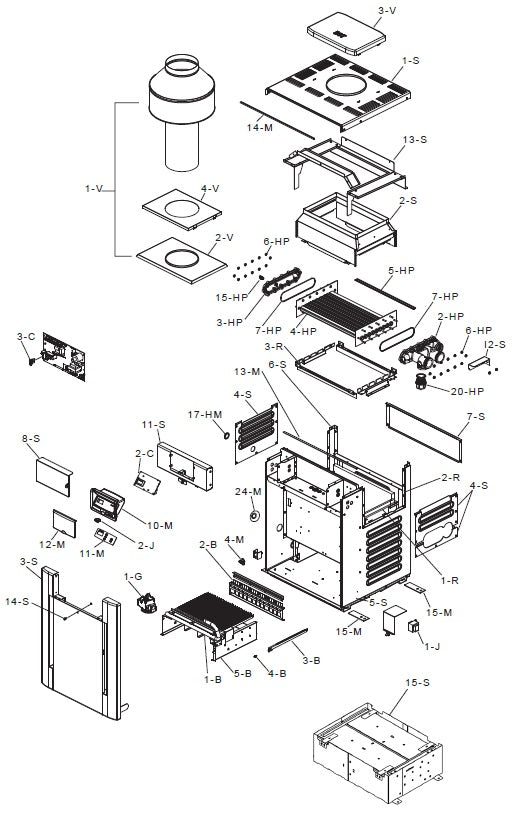

Replacement parts and exploded parts diagram for the Raypak 206A Digital Propane Heater 0'-2000' 180 BTUH (model 014950). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-B – 010391F – Burner Tray W/Burners Nat (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 010407F – Burner Tray W/Gas Valve Nat IID (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 010411F – Burner Tray W/Gas Valve Pro IID (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 019210F – Burner Tray W/Burners Nat (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-C – 006725F – High Limit Auto-Reset 135 F Deg Surface Mount
- #1-HP – 017998F – Heat Exchanger Assy Cupronickel (Units manufactured from 10/2019, WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.)
- #1-HM – 017987F – Heat Exchanger Assy. Cupronickel Asme (Bronze) (Units manufactured from 12/2019)
- #1-J – 006736F – Transformer 120/240/24V
- #1-M – 006737F – Pressure Switch 1.75 PSI
- #1-S – 010047F – Jacket Top (Louvered)
- #2-B – 010415F – Burner Spacer/Hold Down Kit
- #2-HM – 018740F – Inlet/Outlet Header Asme Complete (Bronze) (Units manufactured from 7/2020)
- #2-HM – 018739F – Inlet/Outlet Header Asme (Bronze) (Units manufactured from 7/2020)
- #2-HM – 017966F – Inlet/Outlet Header Asme (Bronze) (Units manufactured from 12/2019)
- #2-HM – 800080B – Flange Gasket 2" Connections (prior to 12/2019)
- #2-J – 009493F – Rocker Switch
- #2-S – 010071F – Flue Collector (Units with Polymer Header)
- #2-S – 010075F – Flue Collector (Units with Metal ASME Header)
- #2-V – 010330F – Stack Adapter
- #3-HM – 018738F – Return Header Asme (Bronze) (Units manufactured from 7/2020)
- #3-R – 010387F – Refractory Retainer Kit
- #3-S – 013863F – Door Assy Rheem Cool Dark & Warm Dark Gray
- #3-V – 013883F – Pagoda Top Cool Dark Gray
- #3-V – 010334 – Pagoda Top Cool Green
- #4-B – 100-10006066 – Burner Orifice #58 (2000-2999 ft elevation) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #4-C – 009577F – Temperature Sensor IID Units
- #4-M – 005899F – Thermal Fuse
- #4-P – 004308F – Pilot Orifice Pro. IID .012
- #4-V – 011461F – Outer Stack Adapter
- #5-HP – 014934F – Baffle (Cupronickel Heat Exchanger) (Units manufactured from 6/2013)
- #5-HM – 010038F – Baffle (1.060"-1.065" width)
- #6-HP – 008259F – Flange Nut Kit (1/4-20)
- #6-HM – 017982F – Stud Bolt Kit (Units manufactured from 12/2019)
- #6-M – 009490F – Wire/Harness IID
- #6-M – 013817F – Wire/Harness IID Kit for Atmospheric Models 268A-408A
- #6-S – 010377F – Jacket Side Panel Left
- #7-HP – 006713F – O-Ring Gasket (2)
- #7-HM – 800014B – Header Gasket (9)
- #8-HP – 006714F – Sensor Adapter Digital Electronic
- #8-HM – 062234B – Unitherm Governor
- #9-HP – 006715F – Bypass Kit
- #9-HM – 013792F – U.G. Retainer Spring
- #10-HP – 006716F – Bypass Valve
- #11-HP – 006717F – Bypass Dam / Shaft
- #11-S – 013887F – Up Front Control Panel Cool Dark Gray
- #11-S – 013891F – Up Front Control Panel Warm Dark Gray
- #12-HP – 006718F – Bypass Spring (All Sizes Included)
- #12-HM – 013793F – Drain Valve (1/8" NPT)
- #12-M – 009487F – Control Bezel Cover
- #12-S – 010342F – High Limit Shield
- #13-HP – 006719F – Unitherm Governor
- #13-HM – 003765F – Sensor Well
- #13-M – 010350F – Gasket Insulation (Swaybrace & Jacket Top)
- #13-S – 010325F – Weather Shield
- #14-HP – 006720F – Unitherm Governor Plug
- #14-M – 100-10000659 – Touch-Up Paint Green (Not Shown)
- #14-M – 100-10000660 – Touch-Up Paint Dark Gray (Not Shown)
- #15-HP – 006721F – Drain Plug
- #17-HM – 005264F – Rear Drain Plug & Cover
- #19-HP – 006826F – Inlet/Outlet Header Baffle W/Header Dam
- #19-HM – 005393F – Adapter Cpvc 2"
- #21-M – 013795F – 2" Cpvc Adapter NPT Connection
- #23-M – 006724F – O-Ring (2)
- #27-HM – 018007F – Nut - Protek Shield Adapter - 2-Pcs (From end of Q3 2020)
- G-1 – 004306F – Combination Valve - Pro. IID
