Raypak 206A Digital Natural Gas Heater 2000'-6000' 199.5 BTUH 009220 Parts & Diagram

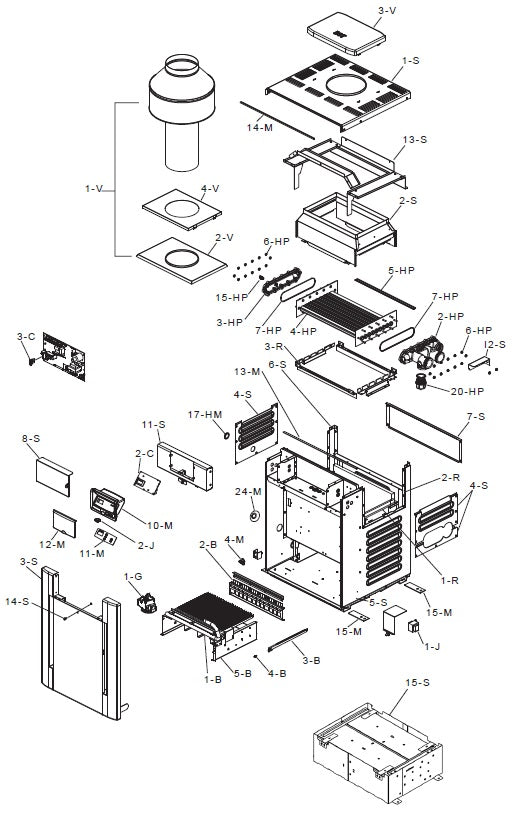

Replacement parts and exploded parts diagram for the Raypak 206A Digital Natural Gas Heater 2000'-6000' 199.5 BTUH (model 009220). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1-B – 010391F – Burner Tray W/Burners Nat (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 010407F – Burner Tray W/Gas Valve Nat IID (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 010411F – Burner Tray W/Gas Valve Pro IID (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-B – 019210F – Burner Tray W/Burners Nat (sea level) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #1-C – 006725F – High Limit Auto-Reset 135F Deg Surface Mount
- #1-HP – 017994F – Heat Exchanger Assy Copper (Units manufactured from 10/2019, WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.)
- #1-J – 006736F – Transformer 120/240/24V
- #1-M – 006737F – Pressure Switch 1.75 PSI
- #1-S – 010047F – Jacket Top (Louvered)
- #2-B – 010415F – Burner Spacer/Hold Down Kit
- #2-J – 009493F – Rocker Switch
- #2-S – 010071F – Flue Collector (Units with Polymer Header)
- #2-S – 010075F – Flue Collector (Units with Metal ASME Header)
- #2-V – 010330F – Stack Adapter
- #3-HM – 018738F – Return Header Asme (Bronze) (Units manufactured from 7/2020)
- #3-R – 010387F – Refractory Retainer Kit
- #3-S – 013863F – Door Assy Rheem Cool Dark & Warm Dark Gray
- #3-V – 013883F – Pagoda Top Cool Dark Gray
- #3-V – 010334 – Pagoda Top Cool Green
- #4-B – 100-10006054 – Burner Orifice #51 (2000-5999 ft elevation) (For installation at over 2,000 feet above sea level, derate 4% per 1,000 feet above sea level. Refer to the heater's rating plate.)
- #4-C – 009577F – Temperature Sensor IID Units
- #4-HP – 010059F – Tube Bundle Copper (WARNING: The Hydraulic conditions or water chemistry that caused the tube bundle to fail have very likely also damaged the bypass valve and Unitherm Governor. Raypak recommends you replace the Unitherm Governor and inspect the bypass assembly. Failure to do so could cause premature failure of this replacement part. WARNING: Copper and Cupronickel heat exchangers and tube bundles are not interchangeable. Units with suffix "C" must use copper replacement parts and units with suffix "X" must use Cupronickel replacement parts.)
- #4-M – 005899F – Thermal Fuse
- #4-P – 003903F – Pilot Orifice Nat. IID .020
- #4-V – 011461F – Outer Stack Adapter
- #5-HM – 010038F – Baffle (1.060"-1.065" width)
- #6-HP – 008259F – Flange Nut Kit (1/4-20)
- #6-HM – 017982F – Stud Bolt Kit (Units manufactured from 12/2019)
- #6-M – 009490F – Wire/Harness IID
- #6-M – 013817F – Wire/Harness IID Kit for Atmospheric Models 268A-408A
- #6-S – 010377F – Jacket Side Panel Left
- #7-HP – 006713F – O-Ring Gasket (2)
- #7-HM – 800014B – Header Gasket (9)
- #8-HP – 006714F – Sensor Adapter Digital Electronic
- #8-HM – 062234B – Unitherm Governor
- #9-HP – 006715F – Bypass Kit
- #9-HM – 013792F – U.G. Retainer Spring
- #10-HP – 006716F – Bypass Valve
- #11-HP – 006717F – Bypass Dam / Shaft
- #11-S – 013887F – Up Front Control Panel Cool Dark Gray
- #11-S – 013891F – Up Front Control Panel Warm Dark Gray
- #12-HP – 006718F – Bypass Spring (All Sizes Included)
- #12-HM – 013793F – Drain Valve (1/8" NPT)
- #12-M – 009487F – Control Bezel Cover
- #12-S – 010342F – High Limit Shield
- #13-HP – 006719F – Unitherm Governor
- #13-HM – 003765F – Sensor Well
- #13-M – 010350F – Gasket Insulation (Swaybrace & Jacket Top)
- #13-S – 010325F – Weather Shield
- #14-HP – 006720F – Unitherm Governor Plug
- #14-M – 100-10000659 – Touch-Up Paint Green (Not Shown)
- #14-M – 100-10000660 – Touch-Up Paint Dark Gray (Not Shown)
- #15-HP – 006721F – Drain Plug
- #17-HM – 005264F – Rear Drain Plug & Cover
- #19-HP – 006826F – Inlet/Outlet Header Baffle W/Header Dam
- #19-HM – 005393F – Adapter Cpvc 2"
- #21-M – 013795F – 2" Cpvc Adapter NPT Connection
- #23-M – 006724F – O-Ring (2)
- #27-HM – 018007F – Nut - Protek Shield Adapter - 2-Pcs (From end of Q3 2020)
Please confirm your model number matches your existing equipment before ordering.
