Polaris Turbo Turtle Above Ground Pressure Side Pool Cleaner 6-130-00T Parts & Diagram

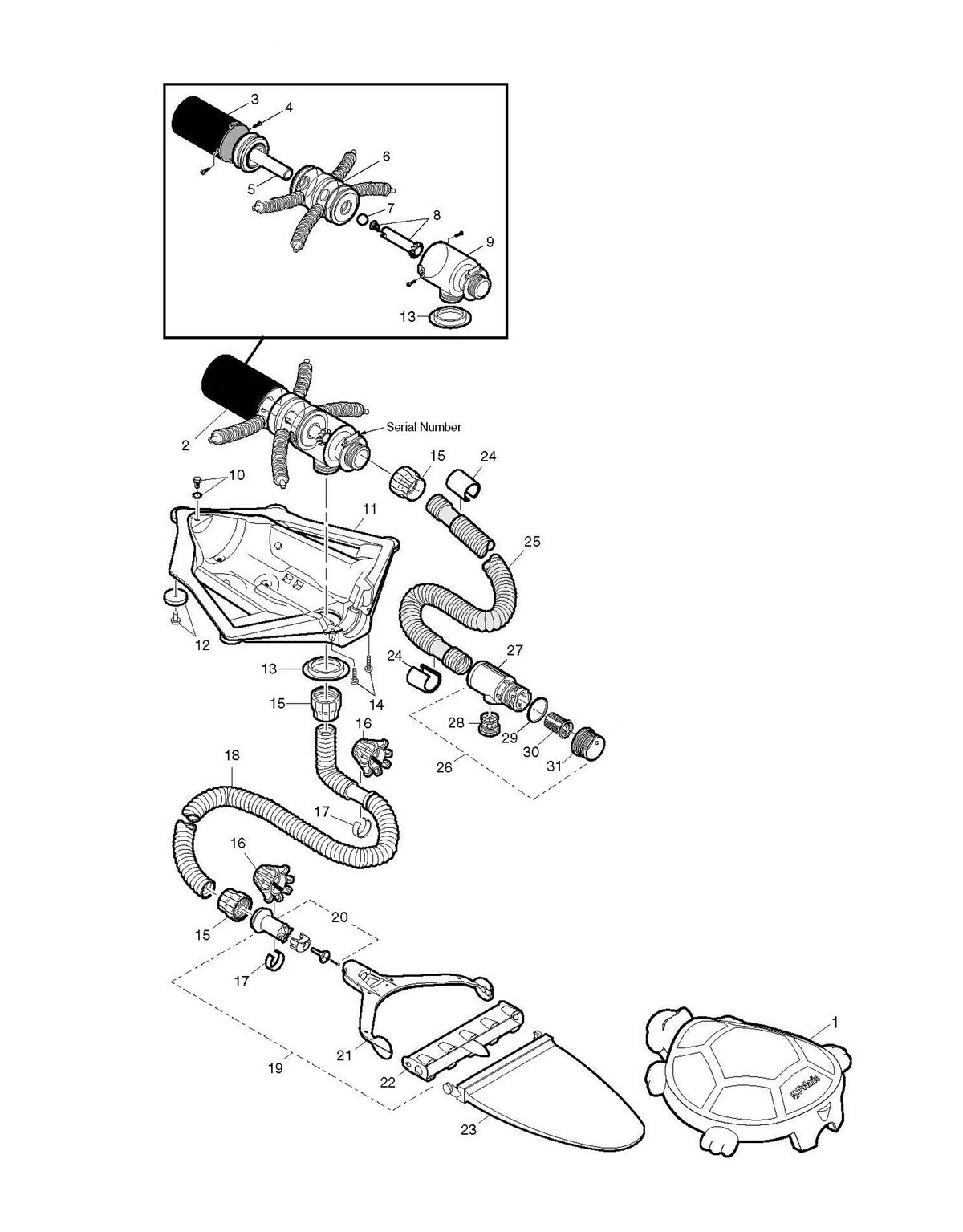

Replacement parts and exploded parts diagram for the Polaris Turbo Turtle Above Ground Pressure Side Pool Cleaner (model 6-130-00T). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 6-309-00 – Turbo Turtle Top
- #2 – 6-400-00 – 165/65/160/60 Mechanism
- #3 – 6-407-00 – 165/65 Cylinder
- #4 – 6-413-00 – 6x5/16" 165/65 SS Screw
- #5 – 6-411-00 – 165/65 Piston Assy
- #6 – 6-409-00 – 165/65/TURTLE Center Chamber Assy
- #7 – 6-403-00 – 165/65/160/60 Randomizer Ball
- #8 – 6-406-00 – 165/65/160/60 Filter Connector & Tube Kit
- #10 – 6-507-00 – 165/65/160/60 Drain Plug Assy
- #11 – 6-305-00 – GRY 165/65 Body Bottom Assy
- #12 – 6-301-00 – GRY 165/65 Body Botttom Wheel Kit
- #14 – 6-302-00 – #10x.75" 165/65 SS PAN Head Top Screw
- #15 – 6-104-00 – 165/65/160/60 Female Hose Connector
- #16 – 6-107-00 – 165/65/160/60 Wheel Cage Assy
- #17 – 6-110-00 – 165/65/160/60 Hose Weight
- #19 – 6-212-00 – 165/65 JET Sweep Assy
- #20 – 6-116-00 – 165/65 JET Body Assy
- #22 – 6-210-00 – 165/65 JET Sweep Head
- #24 – 6-222-00 – GRY 165/65 Float
- #26 – 6-508-00 – 165/65/160/60 UWF Connector Assy
- #27 – 6-502-00 – 165/65/160 Universal Wall Fitting
- #28 – 6-503-00 – Blue 165/65/160 Pressure Relief Valve
- #29 – 6-505-00 – UWF Connector Oring
- #30 – 6-504-00 – UWF Filter Screen
- #31 – 6-500-00 – White Universal Wall Fitting
- #34 – 6-103-00 – 165/65/160/60 Male Hose Connector
Please confirm your model number matches your existing equipment before ordering.
