Polaris Booster Pump 0.75 HP PB4-60 Parts & Diagram

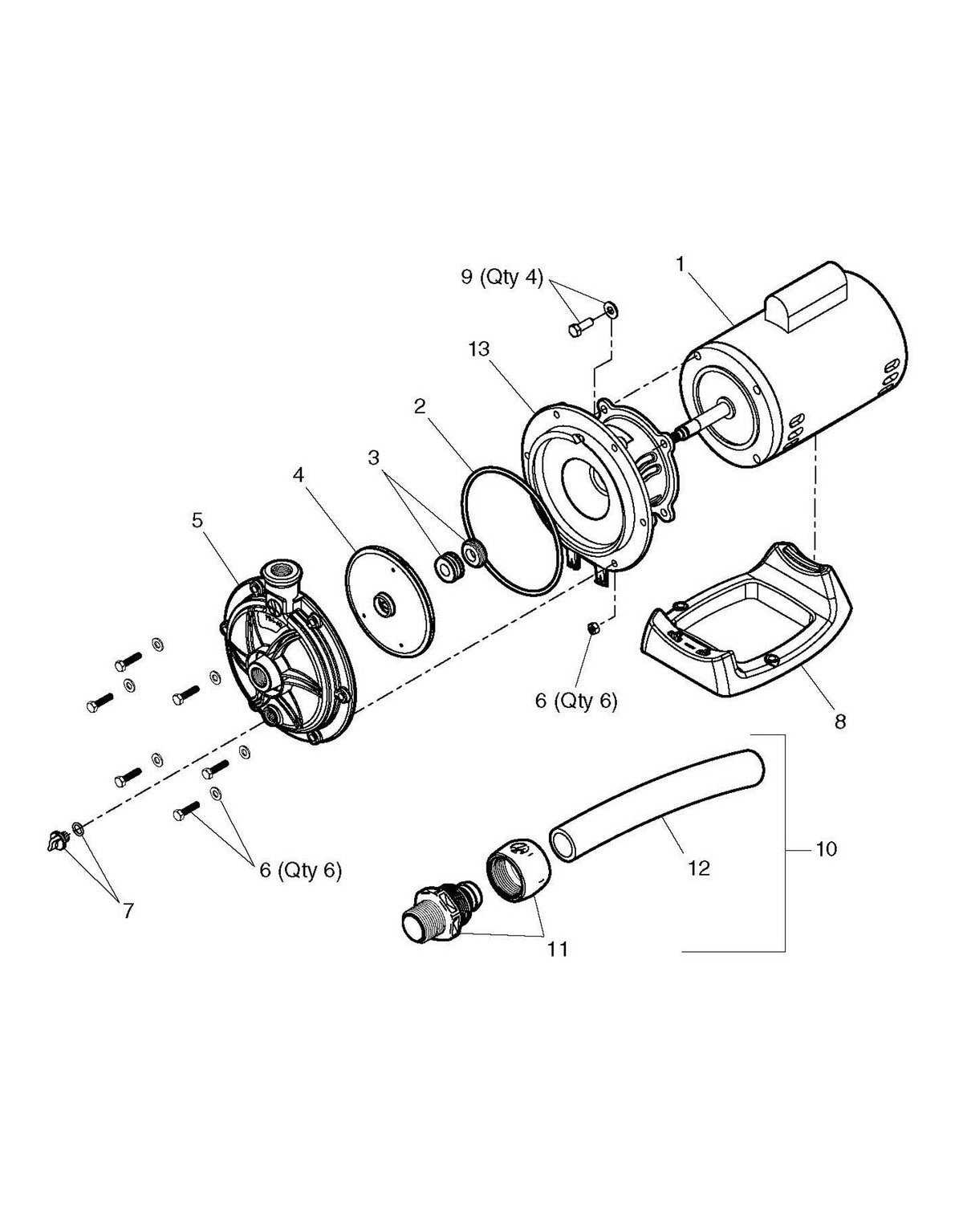

Replacement parts and exploded parts diagram for the Polaris Booster Pump 0.75 HP (model PB4-60). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – P61 – Replacement Motor for Booster Pump
- #2 – R0536600 – O-Ring, Backplate, PB4-60
- #6 – R0536900 – Bolts With Washers and Nuts (6 Required)
- #7 – R0537000 – Drain Plug With O-Ring, Common
- #8 – R0537100 – Base, Booster, PB4-60
- #9 – R0536800 – Bolts and Washers, Stainless, Motor, PB4-60 (4 Required)
- #12 – P19 – Pump Hose 6FT Reinforced (6' Length)
Please confirm your model number matches your existing equipment before ordering.
