Pentair WhisperFloXF High Performance Pump 3 HP 3 Phase 9.8-9.4/4.7 Amp 022018 Parts & Diagram

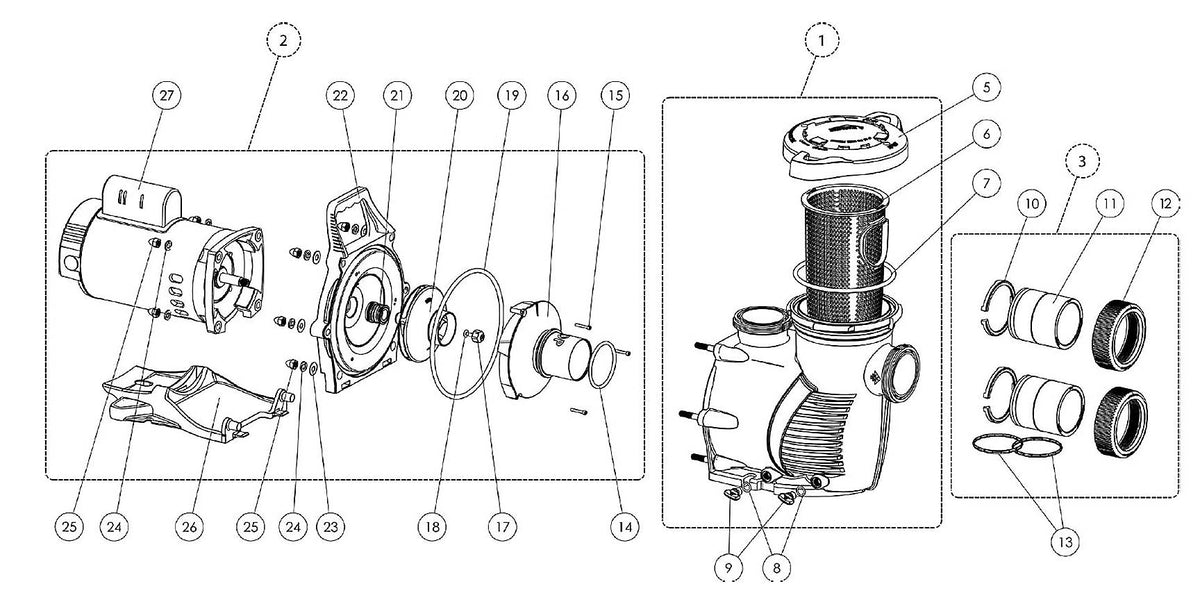

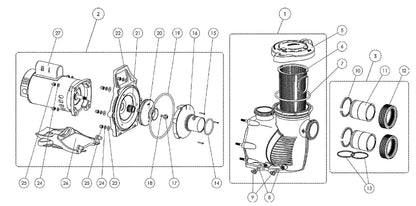

Replacement parts and exploded parts diagram for the Pentair WhisperFloXF High Performance Pump 3 HP 3 Phase 9.8-9.4/4.7 Amp (model 022018). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 400610Z – Power End Assembly
- #6 – 400007Z – XF Series Replacement Basket
- #7 – 35505-1440Z – Lid/Locking Ring O-Ring
- #7 – U9-375Z – 8.5" Trap Cover O-Ring
- #9 – 071131Z – Drain Plug
- #9 – 071131Z – Drain Plug Knob 1.25" x .75" x .5"
- #17 – 37337-6080Z – Impeller Reverse Screw
- #18 – 33455-1047 – Impeller Reverse Screw O-Ring
- #19 – 351446Z – Seal Plate O-Ring
- #21 – 37400-0027S – Buna Shaft Seal
- #21 – U109-372SS – Service Shaft Seal
- #25 – 071413 – Acorn Nut
- #26 – 400004Z – Motor Base
- #27 – 355016S – Motors
- Not Shown – 400030Z – Hardware and Orings Kit
- Not Shown – 400031Z – Seal Plate Kit With Mechanical Seal
- Not Shown – 400013Z – Motor End Cap and Screw
