Pentair Ultratemp Heat Pump 108K BTU 460962 Parts & Diagram

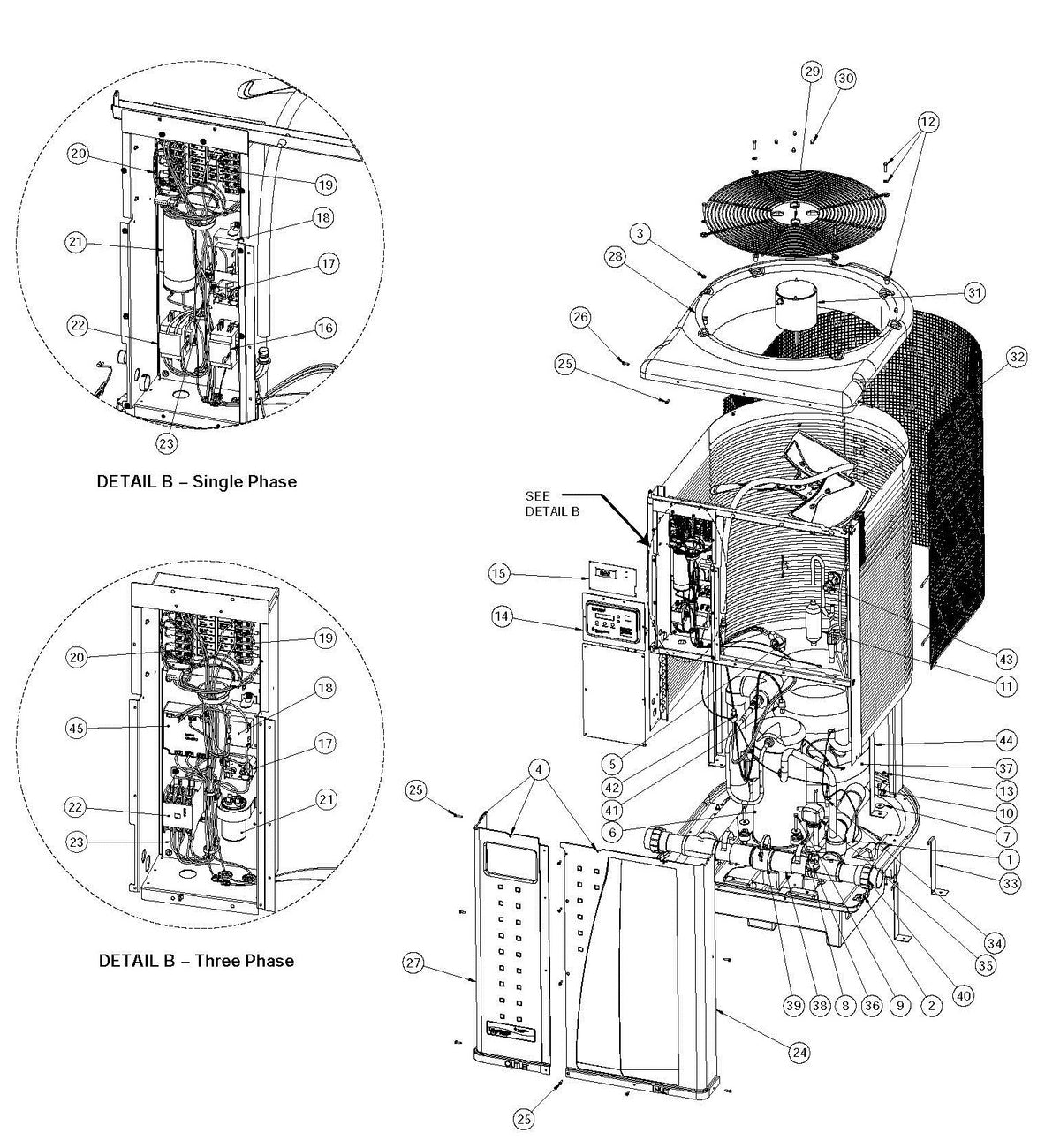

Replacement parts and exploded parts diagram for the Pentair Ultratemp Heat Pump 108K BTU (model 460962). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 470284 – Nut J Clip
- #3 – 473285Z – Nut .25-20 SS Acorn
- #4 – 470281Z – Nut U Clip D06437-10 Tinnerman
- #5 – 473732Z – 60HZ 1PH Compressor Wire Harness
- #5 – 474009 – 50HZ 1PH Compressor Wire Harness
- #5 – 474010 – 3PH Compressor Wire Harness
- #6 – 473735Z – Ultratemp 110 Compressor Scroll Assy
- #6 – 474011Z – Danfoss HLJ083T2LP6 Compressor Scroll
- #6 – 474081Z – Danfoss HLJ083T5LP6 Compressor Scroll
- #6 – 476227Z – Copeland ZP61K5EPFV Compressor Scroll
- #6 – 474291Z – Copeland ZP49K5EPFV Compressor Scroll
- #7 – 473295Z – Wshr 5/16 ID 1.25 OD Fender
- #8 – 473736 – Compr Kit Isolation Grom Scroll
- #9 – 473745Z – BLT 5/16 18X2IN SS
- #10 – 98219800 – Bolt 5/16-18X1" HH 18-8 SS
- #12 – 470441 – Kit Fastener Fan Guard
- #19 – 473422 – Wire Harness Fan & Terminal Block Compressor
- #20 – 473315Z – Wire Harness Term Block Sensor
- #21 – 473154Z – 370V 7.5MFD 3PH Capacitor
- #23 – 475112Z – 1PH Main Wire Harness
- #23 – 474021Z – 3PH Main Wiring Harness
- #23 – 474031 – 3PH 50HZ Main Wiring Harness
- #24 – 473742Z – 36" Almond Front Right Panel
- #24 – 474194Z – 36" BLK Front Right Panel
- #24 – 473431 – 32" Almond Front Right Panel
- #24 – 473412Z – 24" Almond Front Right Panel
- #26 – 474197 – SCR 10X1" Butn Head Torx Zinc PLT Black Head
- #27 – 473755 – 36" Left Panel Assy W/ Decal
- #27 – 474196 – 36" BLK Left Panel Assy W/ Decal
- #27 – 474202 – 32' Front Left Panel W/ Decal
- #27 – 474203 – 24" Front Left Panel W/ Decal
- #27 – 474267 – 24" BLK Front Left Panel W/ Decal
- #28 – 474193Z – BLK Heat Pump Top
- #30 – 470439 – Nut Acorn 10-32 Tall SS
- #31 – 474030Z – 3PH 50HZ Fan Motor W/ Acorn Nut Kit
- #32 – 474230 – 50HZ Fan Blade
- #32 – 474322 – Blade Fan 1100RPM
- #33 – 470137 – Bracket TIE Down
- #35 – 473606 – Boot Swtch Press WTR HP
- #37 – 473992 – Titanium Heat Exchanger
- #37 – 472736 – 10TON Titanium Heat Exchanger
- #37 – 472737 – 8TON Titanium Heat Exchanger
- #38 – 473774Z – Manifold Water Bypass Kit
- #43 – 474248 – Ultratemp 87PSIG Thermostatic Expansion Valve
- #44 – 473657 – Strap Titanium WTR Coil
- #44 – 473772 – Strap Titanium WTR Coil Long
- #44 – 473789 – Titanium Extra Tall Water Coil TIE Down Strap
- #45 – 474089 – Phase Monitor
- NOT SHOWN – 473135 – Reversing Valve
- NOT SHOWN – 473135Z – Reversing Valve Kit
- NOT SHOWN – 473432 – Ultratemp Reversing Coil Valve
- NOT SHOWN – 474237 – Clip Retention Comp PWR
- NOT SHOWN – 474321 – Ultratemp 3"x10" Vertical Receiver
- NOT SHOWN – 473054Z – Ultratemp Coil Guard
Please confirm your model number matches your existing equipment before ordering.
