Pentair Off Line Automatic Commercial Spa Cholrinator for Chlorine or Bromine Tablets R171066 Parts & Diagram

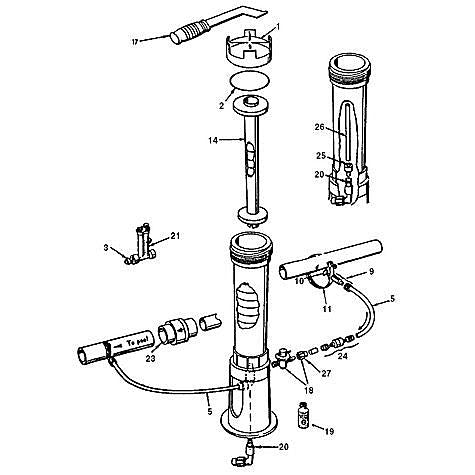

Replacement parts and exploded parts diagram for the Pentair Off Line Automatic Commercial Spa Cholrinator for Chlorine or Bromine Tablets (model R171066). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R172008W – Chlorinator Lid
- #3 – R172020 – HC Series OLD Style Optional Check Valve
- #17 – R172052 – Cap Wrench
- #23 – R172288 – 1.5"-2" Corrosion Resistant Check Valve
- #24 – R172323 – .25" Corrosion Resistant Check Valve
- not shown – R172065 – Chemical Feeder NEW Style Parts Bag
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-R171066
Brand: Pentair
Price range
$14.99 - $46.13
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair Off Line Automatic Commercial Spa Cholrinator for Chlorine or Bromine Tablets (model R171066)
- 14 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
