Pentair Kreepy Krauly Platinum Pressure In Ground Pressure Side Pool Cleaner LL505PM Parts & Diagram

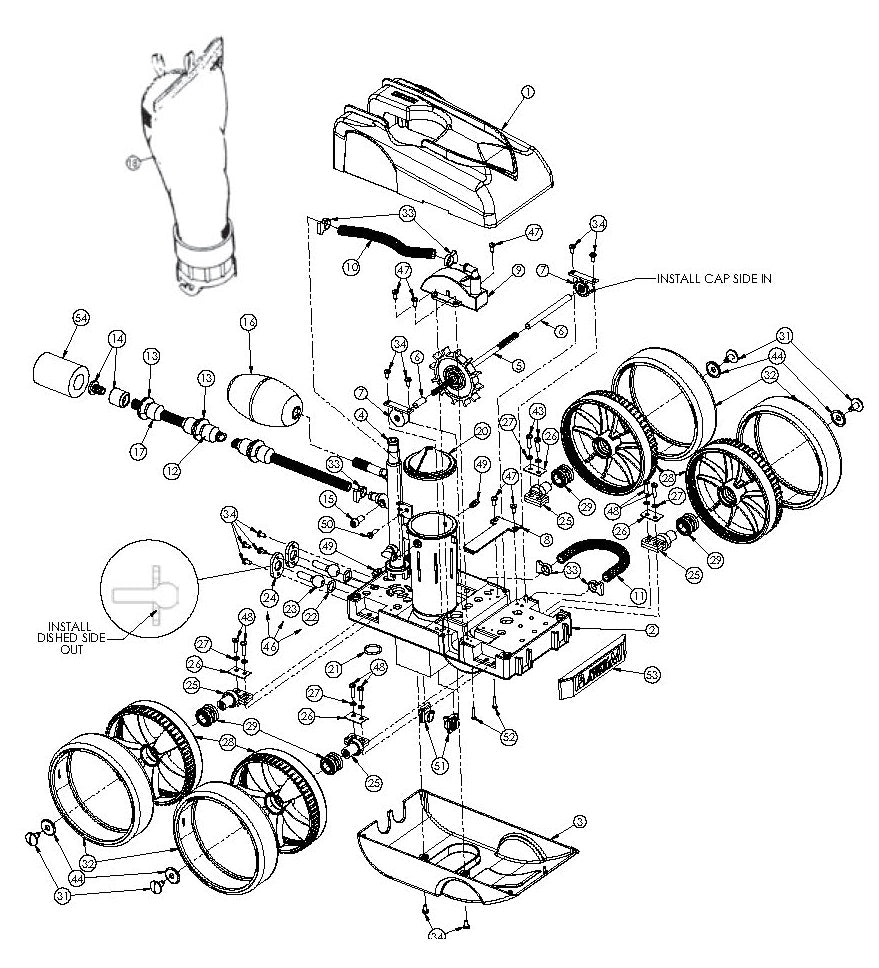

Replacement parts and exploded parts diagram for the Pentair Kreepy Krauly Platinum Pressure In Ground Pressure Side Pool Cleaner (model LL505PM). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – LLU5PM – Top Cover (Gray)
- #2 – LLU145N – Main Frame (White)
- #3 – EU10N – Bottom Cover (White)
- #3 – LLU10NG – Bottom Cover (Gray)
- #4 – LLU6G – Feed Mast With O-Ring (Gray)
- #5 – EC86 – Turbine Drive Shaft (Complete)
- #6 – EC83 – Turbine Spacers
- #7 – EC80 – Turbine Bearings (Gray)
- #8 – EA40 – Turbine Shaft Shield (White)
- #9 – EC110 – Turbine Shaft (w/ Elbow-White)
- #11 – EC120 – Venturi Jet (7 3/4 in. -White)
- #11 – LLC120G – Venturi Jet (7 3/4 in. -White)
- #12 – EB5L – Sweep Hose Complete (White)
- #13 – EB10G – Sweep Hose (Wear Ring)
- #14 – EB25 – Sweep Hose (Jet w/ Collar - White)
- #14 – LLB25PM – Sweep Hose (Jet w/ Collar - Gray)
- #15 – EB20 – Sweep Hose Adj. Screw (White)
- #16 – LLA20G – Ballast Float (Gray)
- #17 – EH07 – Sweep Hose (Hose Sleeve - White)
- #17 – LLH07PM – Sweep Hose (Hose Sleeve - Gray)
- #18 – EU15 – Coarse Mesh Bag (Blue/White Collar)
- #19 – 360009 – Fine Mesh Bag (Gray Collar)
- #21 – EU7 – O-Ring for Feed Mast
- #22 – E18 – O-Ring for Thrust Jet
- #24 – EC135 – Thrust Jet Plates (White)
- #24 – LLC135G – Thrust Jet Plates (Gray)
- #26 – EC70 – Axle Plate
- #27 – EC45 – Axle (Lock Washer)
- #28 – 370406Z – Wheel (w/out Bearings-Gray)
- #29 – EC60 – Wheel Bearings Only (White)
- #30 – E10 – Back-Up Valve (White)
- #30 – LL10PM – Back-Up Valve (Gray; Recommended for stock)
- #32 – 370405Z – Wheel (Rubber Tire - Black)
- #33 – EB15 – Hose Clamp
- #34 – EC40 – Screw
- #35 – LLD50PM – Feed Hose (Gray soft 10 ft.; Recommended for stock)
- #36 – ED10P – Float For Feed Hose (White)
- #36 – LLD10PM – Float For Feed Hose (Gray; Recommended for stock)
- #37 – LLD45 – Feed Hose (10 ft. - White)
- #37 – LLD45PM – Feed Hose (10 ft. - Gray; Recommended for stock)
- #38 – LLD05PM – Swivel - Feed Hose (Gray; Recommended for stock)
- #39 – LLU1 – Adapter Hose (8 1/2 in. - White)
- #39 – LLU1PM – Adapter Hose (8 1/2 in. - Gray)
- #40 – ED15 – Mender Nut (Plastic - White)
- #40 – LLD15PM – Mender Nut (Plastic - Gray; Recommended for stock)
- #41 – LLW22PM – Wall Fitting (Gray; Recommended for stock)
- #41 – LL25PM – Pressure Relief Valve (Gray)
- #41 – E25 – Pressure Relief Valve (White)
- #42 – E24 – Screen (Wall Fitting)
- #43 – E23 – Quick Disconnect Adapter (White)
- #44 – EC64 – Wheel (Plastic Washer)
- #45 – EG15 – Gears (For Back-Up Valve)
- #48 – EU76 – Axle Bolt
- #49 – LLU147G – Snap Fit Vac Tube Posts (Gray)
- #50 – EU79 – Nut & Bolt (Feed Mast to Vac Tube)
- #51 – LLU8G – Venturi Jet (Gray)
- #52 – EU80 – Screw (Cover to Frame)
- #53 – LLU81PM – Front Bumper (White)
- #53 – LLU81PMG – Front Bumper (Gray)
- Not shown – JVP8 – Pressure Stick (w/o Gauge)
- Not shown – LL209PMG – Complete Hose Kit (Gray)
Please confirm your model number matches your existing equipment before ordering.
