Pentair IntelliFlo3 VSF Pool Pump with Touchscreen 3.0 HP 208-230V 011077 Parts & Diagram

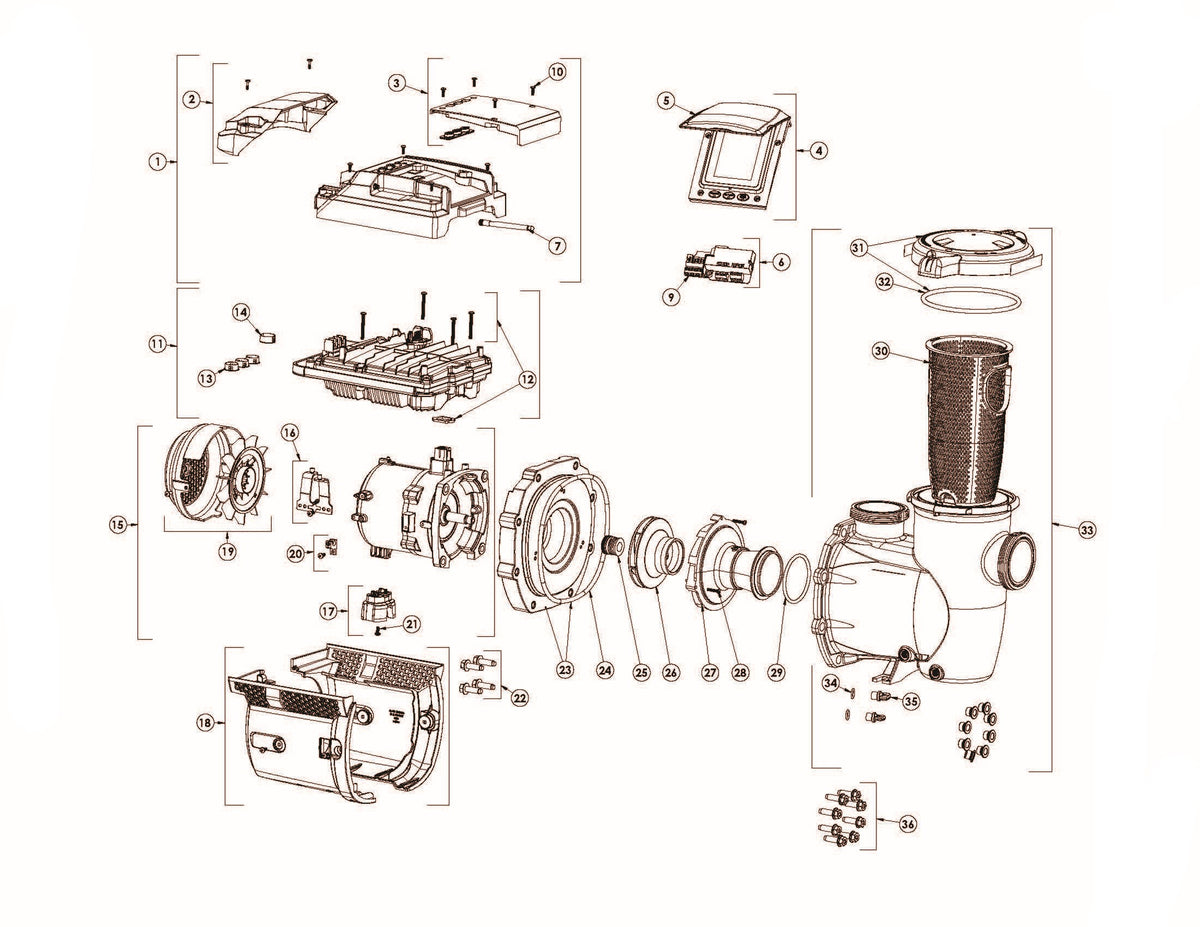

Replacement parts and exploded parts diagram for the Pentair IntelliFlo3 VSF Pool Pump with Touchscreen 3.0 HP 208-230V (model 011077). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1b – 356349Z – Drive Cover Assembly (Black)
- #2a – 356096Z – Field Wiring Compartment Kit (Almond)
- #2b – 356337Z – Field Wiring Compartment Kit (Black)
- #3a – 356101Z – Blank Controller Kit (Almond)
- #3b – 356338Z – Blank Controller Kit (Black)
- #7 – 356226Z – Antenna
- #10 – 356215z – Controller Screw (x4)
- #12 – 357865Z – Drive Hardware Kit
- #13 – 356219z – 7/8" Plug, Drive
- #14 – 356320Z – 1" Bushing, Low Voltage, Drive
- #15 – 356165s – Motor Kit
- #16 – 356167z – Motor Bracket Kit (x2)
- #17a – 356149z – Motor Foot Kit (Almond)
- #17b – 356341Z – Motor Foot Kit (Black)
- #18a – 357869 – Motor Shroud Kit (Almond)
- #18b – 357870 – Motor Shroud Kit (Black)
- #19 – 357866Z – Motor Fan Kit
- #20 – 356166Z – Bonding Lug
- #21 – 356221Z – Motor Foot Screw
- #28 – 356213Z – Diffuser Screws (x3)
- #30 – 400007Z – Strainer Basket
- #35a – 071131z – Drain Plug
Please confirm your model number matches your existing equipment before ordering.
