Pentair IntelliFlo VS+SVRS Variable Speed Pump 3HP 011057 Parts & Diagram

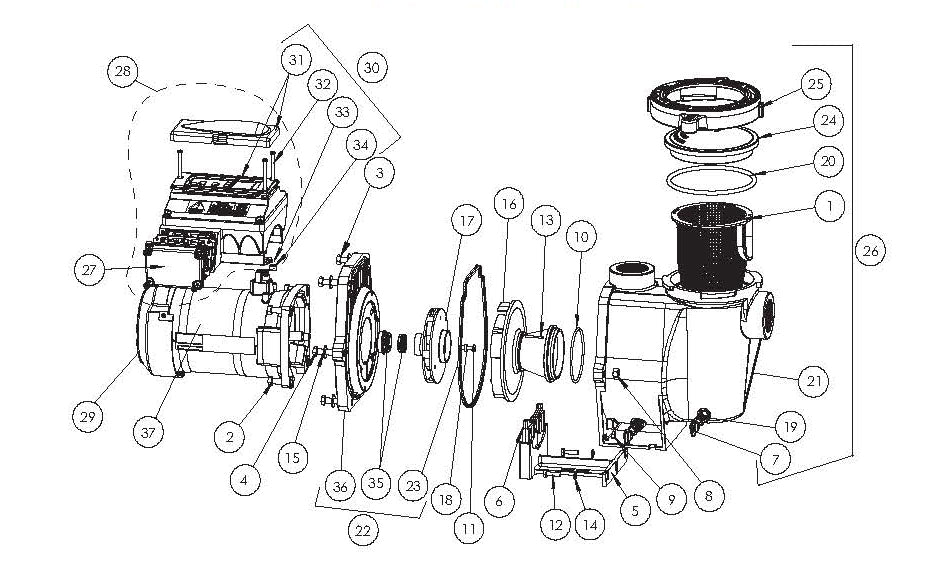

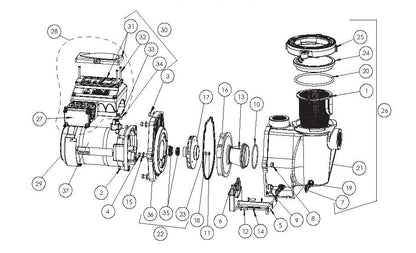

Replacement parts and exploded parts diagram for the Pentair IntelliFlo VS+SVRS Variable Speed Pump 3HP (model 011057). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 070387 – Basket WF
- #7 – 071131Z – Plug Drain WFE, almond, 2 req
- #7 – 071131Z – Drain Plug Knob 1.25" x .75" x .5
- #7 – 071131Z – Almond Drain Plug 5" x 1"
- #11 – 071652Z – Screw, 1/4, 20 x 1 LH Phillips pan MS 18-8 S/S, 1 req.
- #11 – 071652Z – Impeller Screw 1.25" x .5" x .32"
- #12 – 071657Z – Screw, 1/4-20 x 1 in. hex cap 18-8 S/S, 2 req.
- #12 – 071657 – P26948 2/PK .25-20x1" SS HEX Head Screw
- #13 – 071660Z – Screw set, 4-40 x 1-1/8 WFE Sckt cap 18-8 S/S, 2 req.
- #13 – 071660 – WhisperFlo® Diffuser Screw Set
- #13 – 071660Z – Stainless Steel Diffuser Screw Set 18-8 4-40
- #22 – 350202 – Seal Plate kit, Almond w/ Gasket
- #24 – 357156 – Lid, Chemical Resistant
- #28 – 353251 – Intelliflo Variable Speed Drive Kit
- #28 – 351021 – Intelliflo VS+SVRS Drive Kit - Contains Drive and Control Cover Assy
- #30 – 350601 – Drive Control Cover Assembly kit 2 , Almond
- #34 – 350142 – Spacer cap
- Not Shown – 070118 – Power end Intelliflo Variable Speed
- Not Shown – 354044 – IntelliFlo® Power End
Please confirm your model number matches your existing equipment before ordering.
