Pentair Hi-Flow 2" Valve with Bulkhead Fittings for Quad D.E. and Sand Filters 261050 Parts & Diagram

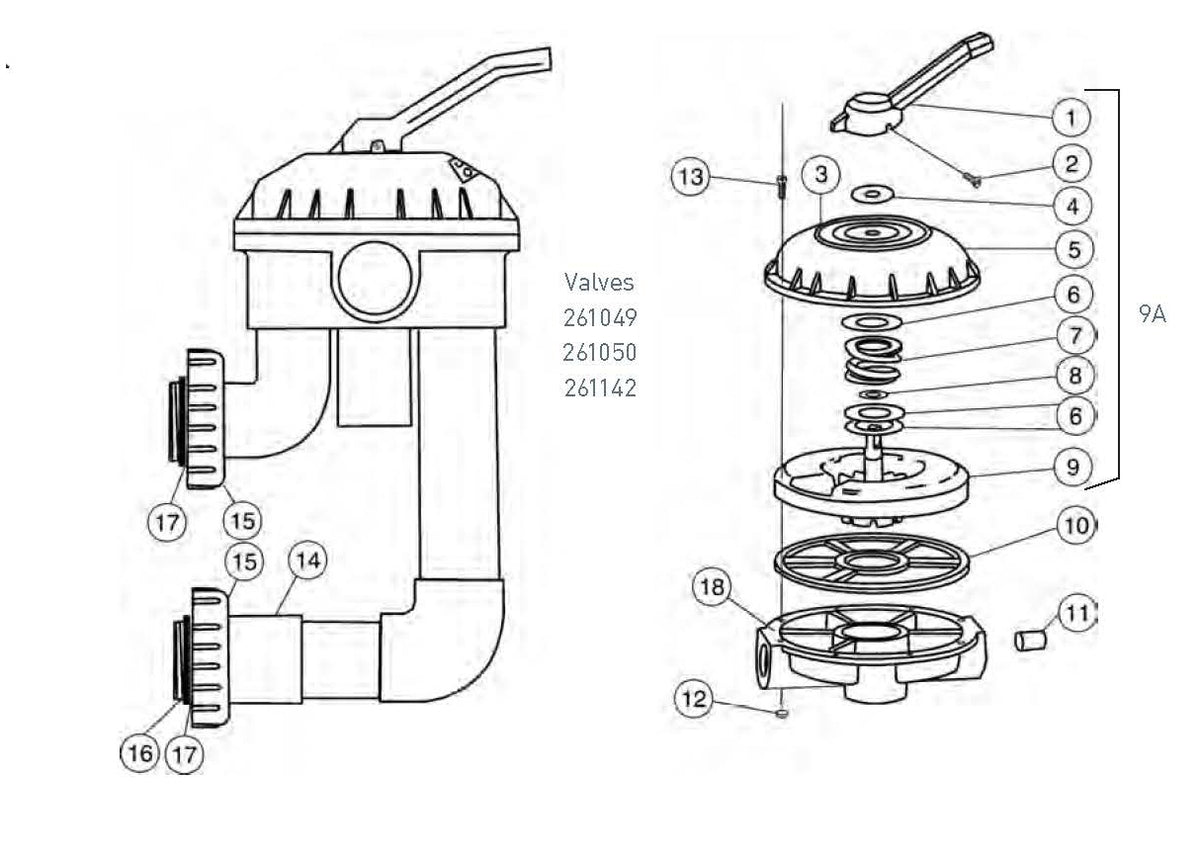

Replacement parts and exploded parts diagram for the Pentair Hi-Flow 2" Valve with Bulkhead Fittings for Quad D.E. and Sand Filters (model 261050). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – 272405 – #8-32 1.5" HI Flow MPV Handle Screw
- #3 – 272101 – 2" HI Flow Sand Valve Label
- #6 – 272401 – SS MPV Diverter Washer
- #8 – JV18 – Rotor Shaft Oring
- #9 – 272413Z – 2" Hiflow Valve Diverter
- #9A – 272422 – 2" Hiflow Multiport Valve Top Assy (This part number includes items 1 thru 9. )
- #17 – 35505-1424Z – SYSTEM:3 Drain Plug Oring
- #17 – U9-156 – 3/8" Pool Pump Header HUB Oring
- #18 – 272433 – 2" 2" HI Flow Bottom Valve W/ Gasket
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-261050
Brand: Pentair
Price range
$4.77 - $63.27
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair Hi-Flow 2" Valve with Bulkhead Fittings for Quad D.E. and Sand Filters (model 261050)
- 18 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
