Pentair Automatic Commercial High Capacity Chlorinator R171215 Parts & Diagram

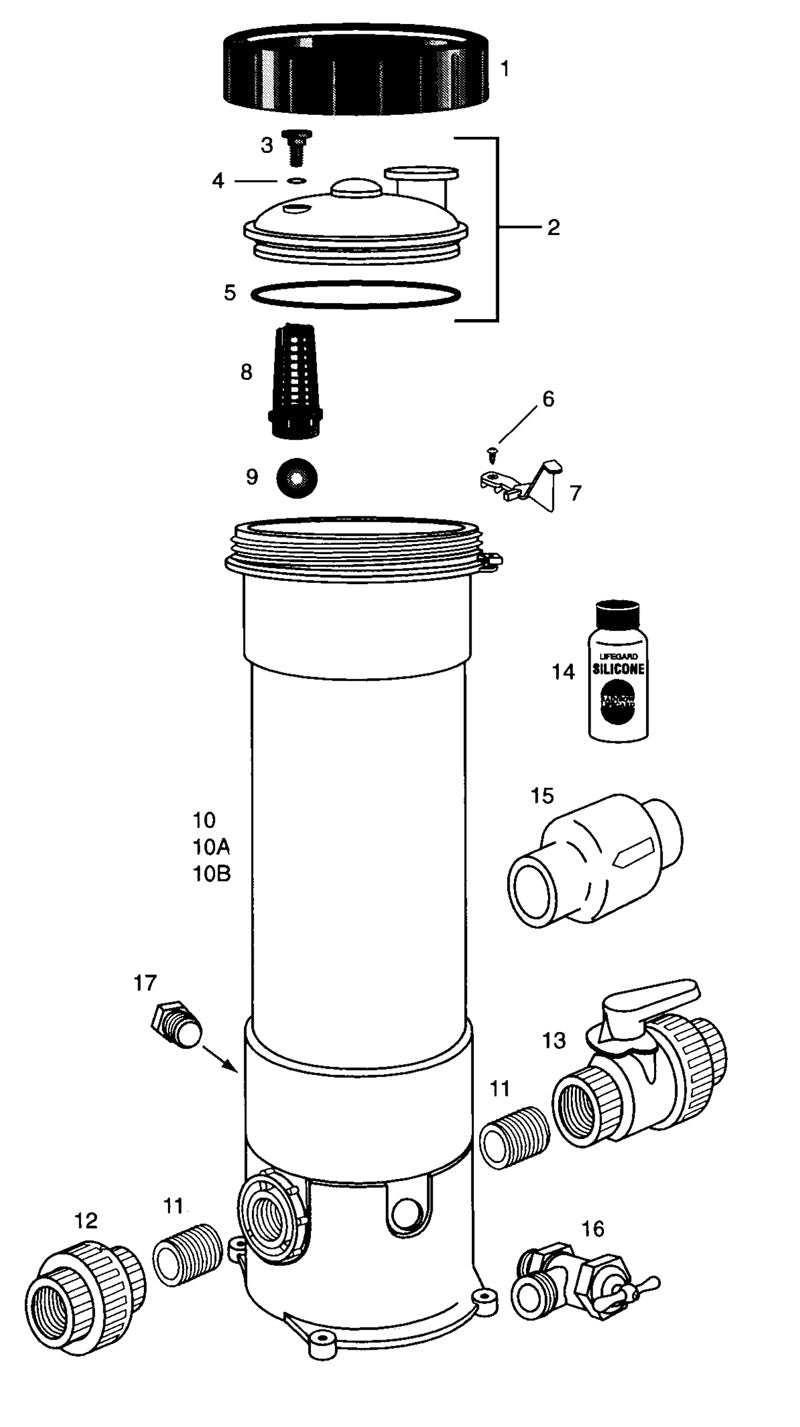

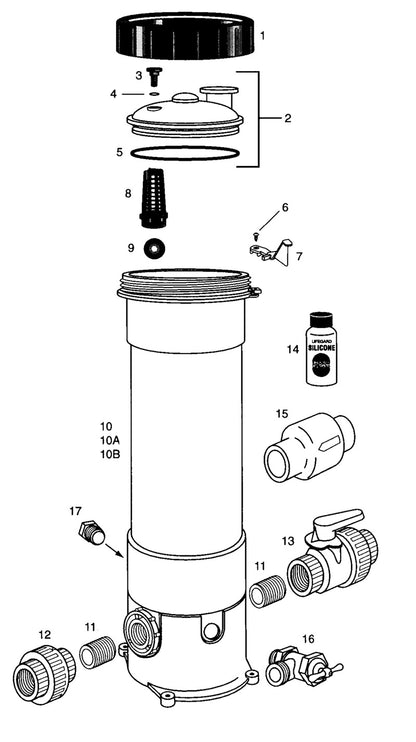

Replacement parts and exploded parts diagram for the Pentair Automatic Commercial High Capacity Chlorinator (model R171215). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #5 – R172240 – High Capacity Chlorinator Lid Oring
- #6 – R172375 – #6x3/8" Phillips Truss Head Lock Screw
- #7 – R172374 – Lock Spring
- #8 – R175251 – 1" HC Series Suction Screen
- #9 – R172435 – 1" HC Series Poly Check Ball
- #11 – R270484 – 1" HC Series Close Nipple
- #12 – R270531 – 1" HC Series Threaded Union
- #15 – R172288 – 1.5"-2" Corrosion Resistant Check Valve
- #16 – R175009 – .5"MPT PVC Hose BIB W/ T Handle
- #17 – R172134 – .5"MPT PVC Plug
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-R171215
Brand: Pentair
Price range
$4.68 - $198.06
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair Automatic Commercial High Capacity Chlorinator (model R171215)
- 14 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
