Pentair Almond UltraTemp ETi Hybrid Heater Natural Gas 220K BTU 460969 Parts & Diagram

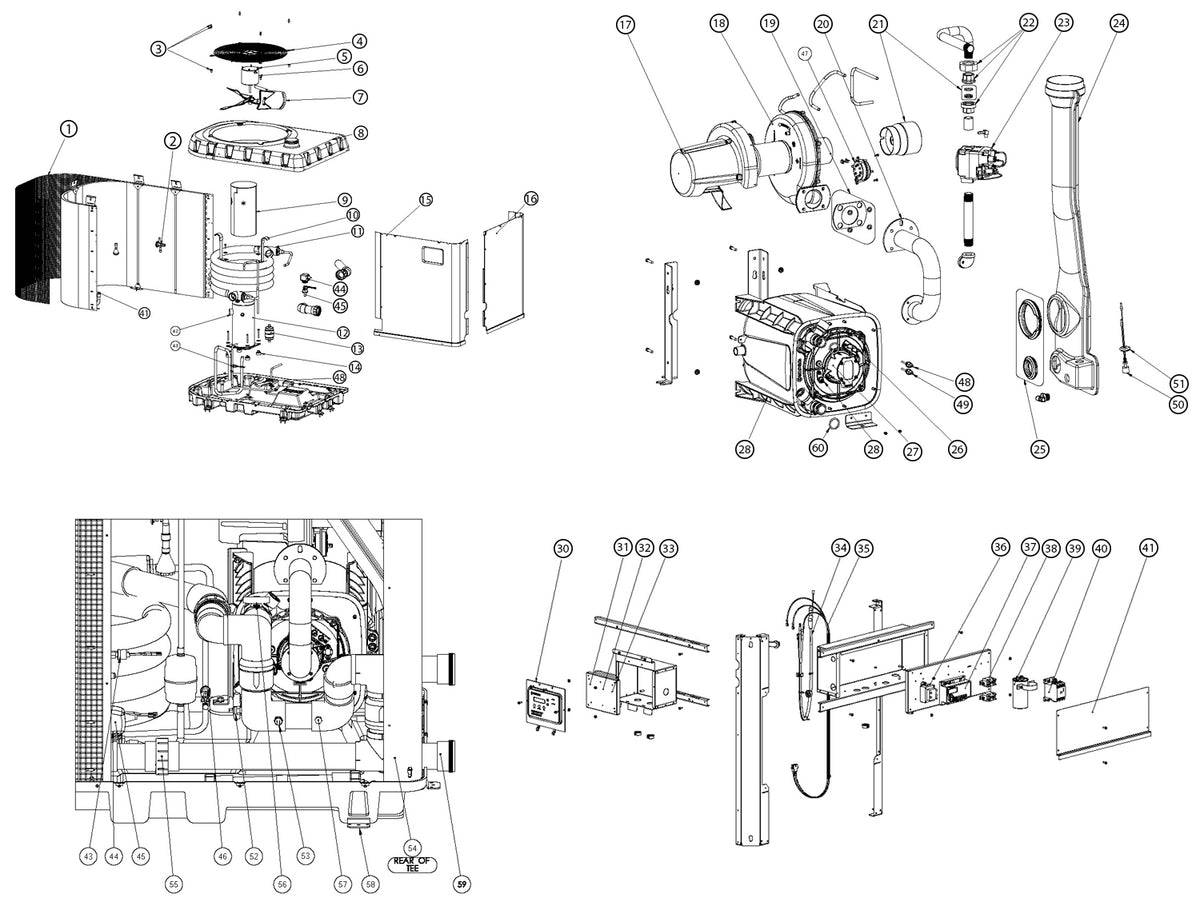

Replacement parts and exploded parts diagram for the Pentair Almond UltraTemp ETi Hybrid Heater Natural Gas 220K BTU (model 460969). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 473054Z – Ultratemp Coil Guard
- #3 – 470441 – Kit Fastener Fan Guard
- #5 – 470439Z – Nut Acorn 10-32 Tall SS
- #6 – 474030Z – 3PH 50HZ Fan Motor W/ Acorn Nut Kit
- #12 – 473735Z – Ultratemp 110 Compressor Scroll Assy
- #14 – 473736 – Compr Kit Isolation Grom Scroll
- #22 – 38404-4097S – .75" Service Union
- #26 – 475989 – ETI400 Spark Electrodes
- #37 – 475933z – Ignition Control Module
- #42 – 474237Z – Clip Retention Comp PWR
- #44 – 473606z – 473606 Boot Swtch Press WTR HP
- #45 – 475956z – Water Pressure Switch
- #61 – 470284 – Nut J Clip
- #62 – 470281Z – 470281 Nut U Clip D06437-10 Tinnerman
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-460969
Brand: Pentair
Price range
$9.27 - $269.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair Almond UltraTemp ETi Hybrid Heater Natural Gas 220K BTU (model 460969)
- 16 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair replacement parts
- Add multiple parts to your cart at once
