Pentair 80 SqFt Quad Cartridge Style D.E. Filter 188593 Parts & Diagram

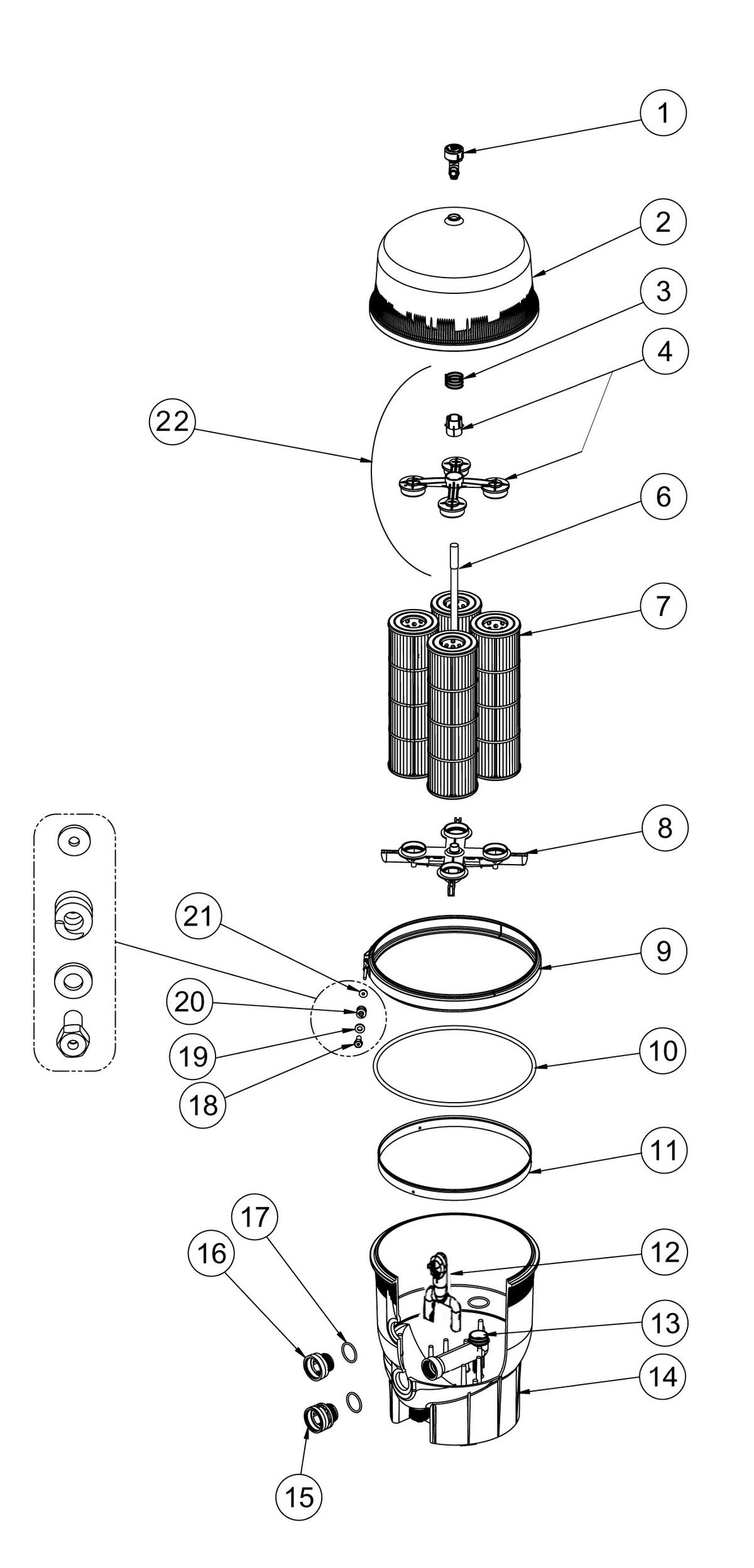

Replacement parts and exploded parts diagram for the Pentair 80 SqFt Quad Cartridge Style D.E. Filter (model 188593). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 24850-0105 – Air Relief Valve and Gauge Kit for System 3® Filters
- #2 – 170024 – Lid Quad 60
- #6 – 170029 – Air Bleeder assy. Quad 60
- #6 – 170028 – Air Bleeder assy. Quad 80
- #6 – 178583 – Air Bleeder assy. Quad 100
- #8 – 170059 – Manifold assy. Bottom
- #11 – 195339 – Ring Back-Up - FNS Pls
- #13 – 170036 – Pipe Outlet - RPM Fltr
- #22 – 170026 – Top Manifold Assembly
- #23 – U9-226 – 1 1/2" Diffuser O-Ring
- #23 – U178-920P – 1/4" NPT Drain Plug Assembly With O-Ring
- #23 – 25010-0200 – Air Relief Valve Assembly for PLD & PTM Filter Systems
- #23 – 072555 – #2-112 Nitrile O-Ring Cover
- - – 178711 – Parts Bag - Includes Warranty Card Instruction Book Adapter Kit 270100 and Pressure Gauge 190058Z
