Pentair 60 SqFt Plus D.E. Filter 180009 Parts & Diagram

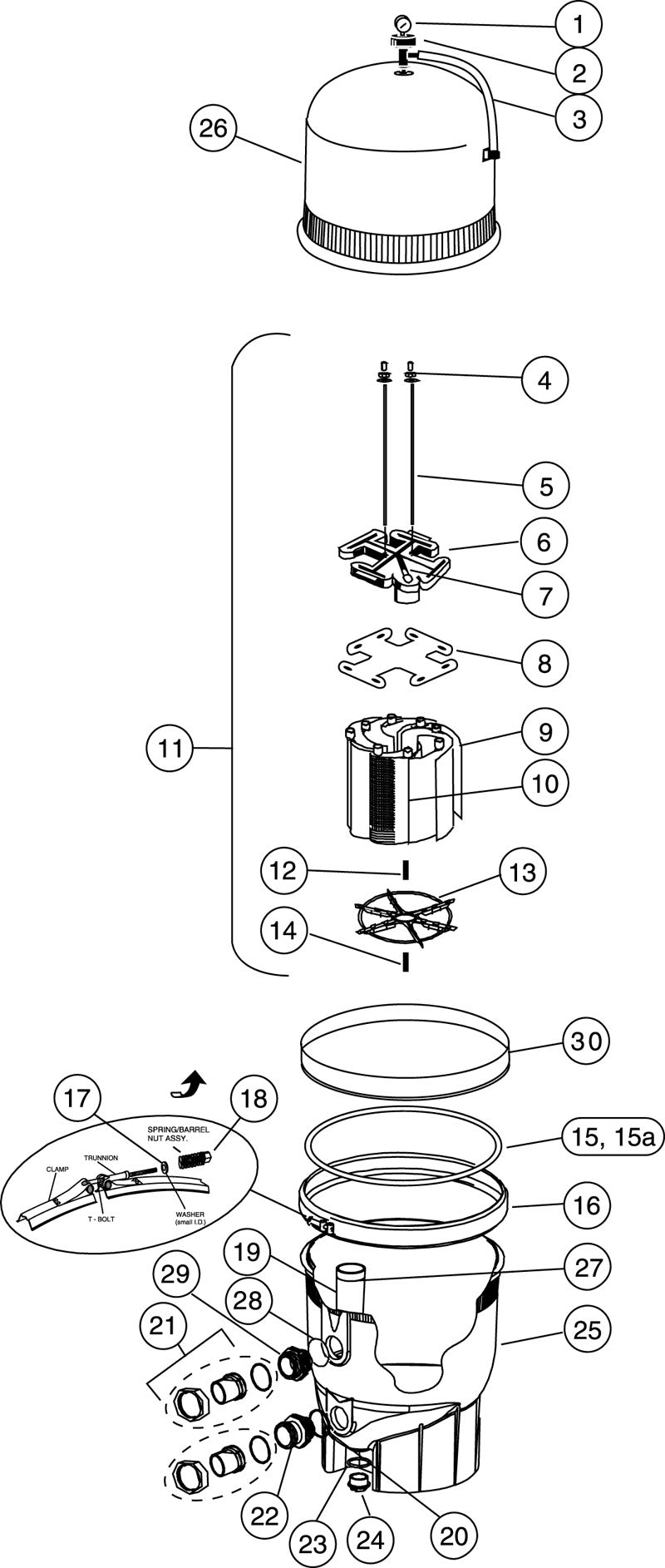

Replacement parts and exploded parts diagram for the Pentair 60 SqFt Plus D.E. Filter (model 180009). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – 190058Z – 2" .25" MPT Pressure Gauge W/ Indicator
- #1 – 190058 – 1/4" NPT Pressure Gauge With Indicator
- #2 – 24850-0105 – Air Relief Valve and Gauge Kit for System 3® Filters
- #6 – 192173 – FNS Top Manifold Grid With Extension and Air Relief
- #9 – 190116 – 10/PK FNSP24 Vertical Grid Filter Large Grid Assy
- #10 – 190117 – 10/PK FNSP36 Vertical Grid Filter Small Grid Assy
- #10 – 190119 – 10/PK FNSP48 Vertical Grid Filter Small Grid Assy
- #10 – 190121 – 10/PK FNSP60 Vertical Grid Filter Small Assy
- #19 – 190037 – 60SQF FNS Plus Standpipe Assy
- #21 – 271096 – 2"S White Valve Adapter Kit
- #22 – 190043 – FNS Plus Inlet Pipe Assy W/ Bulkhead
- #28 – 192320 – Clean & Clear Plus/ FNS Plus Upper Bulkhead Oring (Used on filters manufactured before 10/04 )
- #29 – 190141 – FNS Plus 2" Bulkhead W/ Oring (Used on filters manufactured after 10/04 )
- #30 – 195339 – SS Back-Up Ring (Used on filters manufactured after 2/03 )
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-180009
Brand: Pentair
Price range
$8.46 - $499.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair 60 SqFt Plus D.E. Filter (model 180009)
- 46 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
