Pentair 30" Triton II Side Mount Filter TR100 Almond 140210 Parts & Diagram

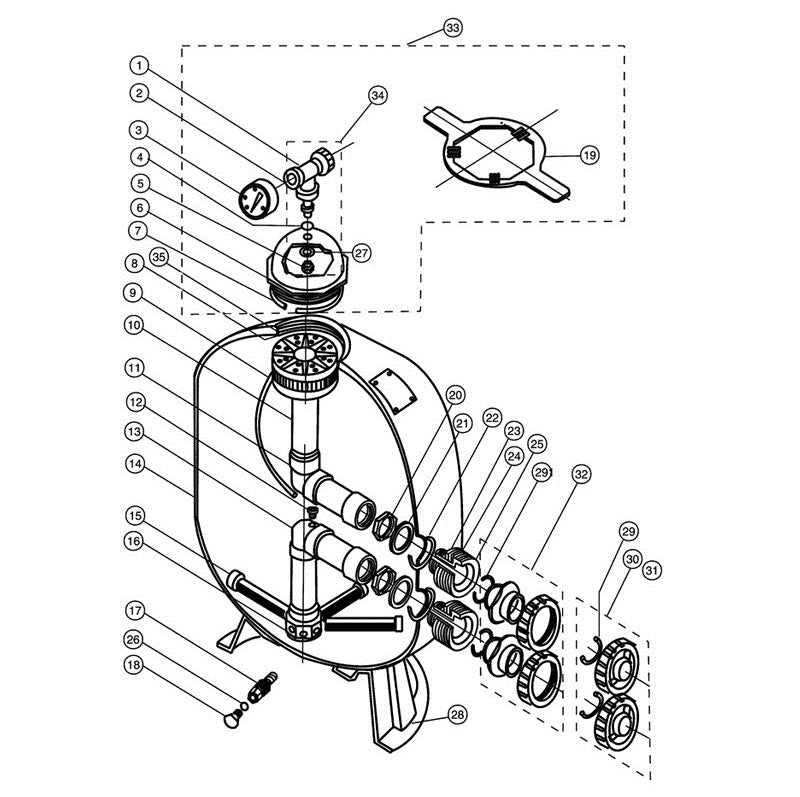

Replacement parts and exploded parts diagram for the Pentair 30" Triton II Side Mount Filter TR100 Almond (model 140210). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #9 – 154435 – Triton II TR40 AIR Relief Tube (Used on filters manufactured before 11-1-99. )
- #9 – 150039 – Tube Arlf TR40 (Used on filters manufactured after 11-1-99. )
- #9 – 154436 – TR50/TR60 AIR Relief Tube (Used on filters manufactured before 11-1-99. )
- #9 – 150040 – TR50/TR60 AIR Relief Tube (Used on filters manufactured after 11-1-99. )
- #9 – 154437 – TR100 AIR Relief Tube (Used on filters manufactured before 11-1-99. )
- #9 – 150041 – TR100 AIR Relief Tube (Used on filters manufactured after 11-1-99. )
- #9 – 154438 – Black Triton II TR140 AIR Relief Tube (Used on filters manufactured before 11-1-99. )
- #9 – 150042 – Black Triton II TR140 AIR Relief Tube (Used on filters manufactured after 11-1-99. )
- #10 – 154598 – TR40/TR50 Diffuser Assy
- #10 – 154462 – Triton II TR100 Diffuser Assy
- #10 – 154906 – Triton II TR140 Diffuser Assy
- #11 – 154803 – TR40 Upper Piping Assy
- #11 – 156814 – TR50 Upper Piping Assy
- #11 – 154533 – TR60 Upper Piping Assy
- #11 – 154426 – Triton II TR100 Upper Piping Assy
- #11 – 154500 – Triton II TR140 Upper Piping Assy
- #13 – 154801 – Triton II TR40 Lower Piping Assy
- #13 – 156816 – TR50 Lower Piping Assy
- #13 – 154805 – TR60 Lower Piping Assy
- #13 – 154807 – 8.25" TR/PF100 Lower Piping Assy
- #13 – 154489 – 11.25" Triton TR140C Lower Piping Assy
- #14 – 154636 – TAN TR40 Butt Thrd Tank & Foot
- #14 – 154638 – TR60 Tank & Foot Assy
- #14 – 154639 – TAN TR100 Butt Thrd Tank & Foot
- #14 – 140210 – 30" Triton® II Side Mount Filter TR100 Almond
- #14 – 154640 – TAN TR140 Butt Thrd Tank & Foot
- #14 – 156224 – BLK TR100HD Tank & Foot
- #14 – 140335 – 30" Triton® II Heavy-Duty Fiberglass Side Mount Sand Filter TR100HD Black
- #17 – 154685 – .5"MPT Spigot Sand Drain (BEFORE 3/1983) (Used on filters manufactured before 3-83. )
- #18 – 154699 – .25" MPT Drain Plug (Used on filters manufactured after 3-83 thru 3-96. )
- #18 – 154481 – .25" Black Hydropump Drain Plug
- #18 – 25010-0200 – Air Relief Valve Assembly for PLD & PTM Filter Systems
- #18 – 072555 – #2-112 Nitrile O-Ring Cover
- #23 – 154408 – 2" Triton II External Spacer
- #25 – 154405 – 2" Triton II Bulkhead
- #26 – 192115 – Whisperflo/ Superflo Drain Plug Oring (Used on filters manufactured after 3-83 thru 3-96. )
- #29 – 35505-1424Z – 35505-1424 SYSTEM:3 Drain Plug Oring
- #29 – U9-156 – 3/8" Pool Pump Header HUB Oring
- #31 – 271094 – 1.5"MPT Valve Adapter Kit (For installations w/out valve, pair. )
- #32 – 271096 – 2"S White Valve Adapter Kit (For installations w/out valve, pair. )
- #35 – 154611 – 3.75" Triton II TR40 Spacer AIR Vent Strainer
- #35 – 154612 – TR50/TR60 Spacer AIR Vent Strainer
- #35 – 154613 – 5.5" Triton II TR100 Spacer AIR Vent Strainer
- #35 – 154614 – 5" Triton II TR140 Spacer AIR Vent Strainer
- NOT SHOWN – 154402 – TR40/TR50/TR60 Tape Foot Mounting
- NOT SHOWN – 154407 – TR100/TR140 Tape Foot Mounting
- NOT SHOWN – 151608 – 9" Adapter Flange Wrench
Please confirm your model number matches your existing equipment before ordering.
