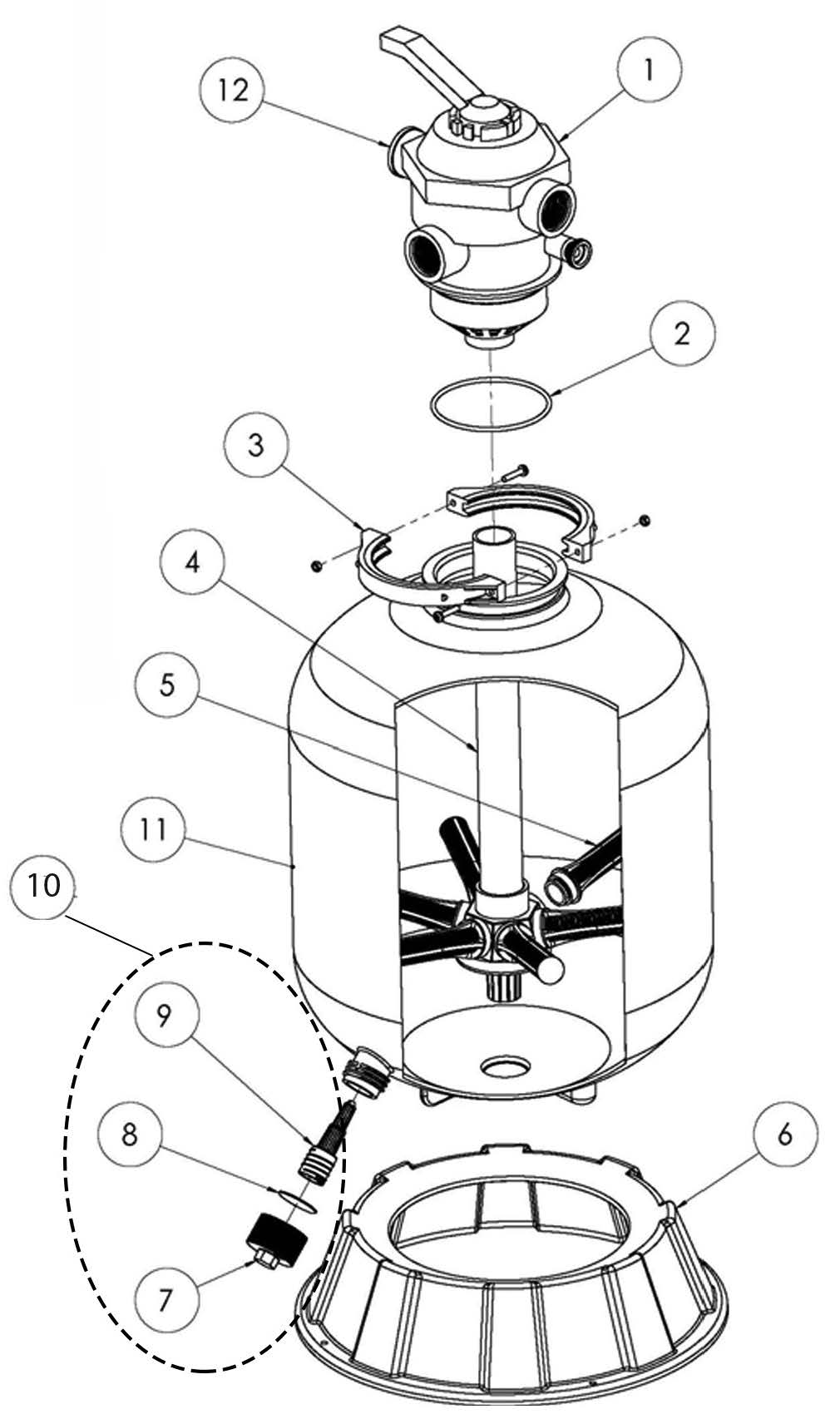

Replacement parts and exploded parts diagram for the Pentair 26" Sand Dollar Top Mount Filter SD80 with 2" MPV (model 145386). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – 155504 – Piping Assembly SD35 (dim D = 16")
- #4 – 152229 – Pipe Assembly SD35 (Filters manufactured after 10/04)
- #4 – 155062 – Piping Assembly SD40 (dim D = 20 1/8")
- #4 – 152228 – Pipe Assembly SD40 (Filters manufactured after 10/04)
- #4 – 155532 – Piping Assembly SD60
- #4 – 152227 – Pipe Assembly SD60 (Filters manufactured after 10/04)
- #4 – 152000 – Pipe assembly, SD70
- #10 – 150055 – Complete Drain Assembly
- #11 – 145339 – Tank With Drain SD35, Almond
- #11 – 145341 – Tank With Drain SD40, Almond
- #11 – 145343 – Tank With Drain SD60, Almond
- #11 – 145334 – Tank With Drain SD80, Almond
Please confirm your model number matches your existing equipment before ordering.
