Pentair 26" Sand Dollar Top Mount Filter SD80 with 1.5" MPV 145333 Parts & Diagram

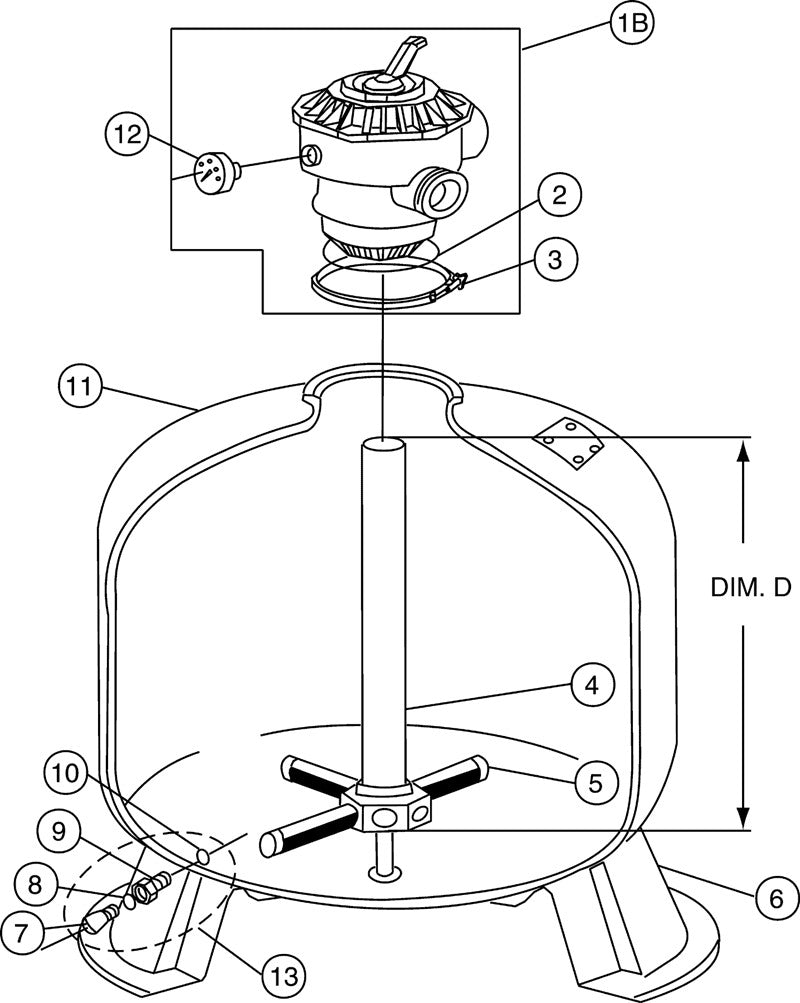

Replacement parts and exploded parts diagram for the Pentair 26" Sand Dollar Top Mount Filter SD80 with 1.5" MPV (model 145333). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #4 – 155504 – SD35 Standpipe Assy (BEFORE 10/2004)
- #4 – 152229 – SD35 Standpipe Assy (AFTER 10/2004) (Filters manufactured after 10/04 )
- #4 – 155062 – TA50/TA50D Internal Piping Assy
- #4 – 152228 – SD40 Standpipe Assy (AFTER 10/2004) (Filters manufactured after 10/04 )
- #4 – 155532 – SD60 Standpipe Assy (BEFORE 10/2004)
- #4 – 152227 – SD60 Standpipe Assy (AFTER 10/2004) (Filters manufactured after 10/04 )
- #4 – 152000 – SD70 Standpipe Assy
- #5 – 155007 – 5-11/32" Almond SD35 Lateral Assy
- #7 – 154699 – .25" MPT Drain Plug
- #9 – 154710 – Drain Sand 1" Sand Dollar
- #11 – 145339 – Almond Sand Dollar SD35 Tank W/ Drain
- #11 – 145341 – Almond Sand Dollar SD40 Tank W/ Drain
- #11 – 145343 – Almond Sand Dollar SD60 Tank W/ Drain
- #11 – 145334 – SD80 Tank
- #11 – 145333 – 26" Sand Dollar® Top Mount Filter SD80 With 1.5" MPV
- #13 – 150053 – Drain Plug Assy Sand Dollar (Includes items 7 through 10 )
- #13 – 150055 – Meteor Filter SYS Drain Plug Assy
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-145333
Brand: Pentair
Price range
$4.68 - $649.00
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Pentair 26" Sand Dollar Top Mount Filter SD80 with 1.5" MPV (model 145333)
- 26 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Pentair parts plus compatible alternates
- Add multiple parts to your cart at once
