Pentair 24" Triton II Side Mount Filter EC-140264 Parts & Diagram

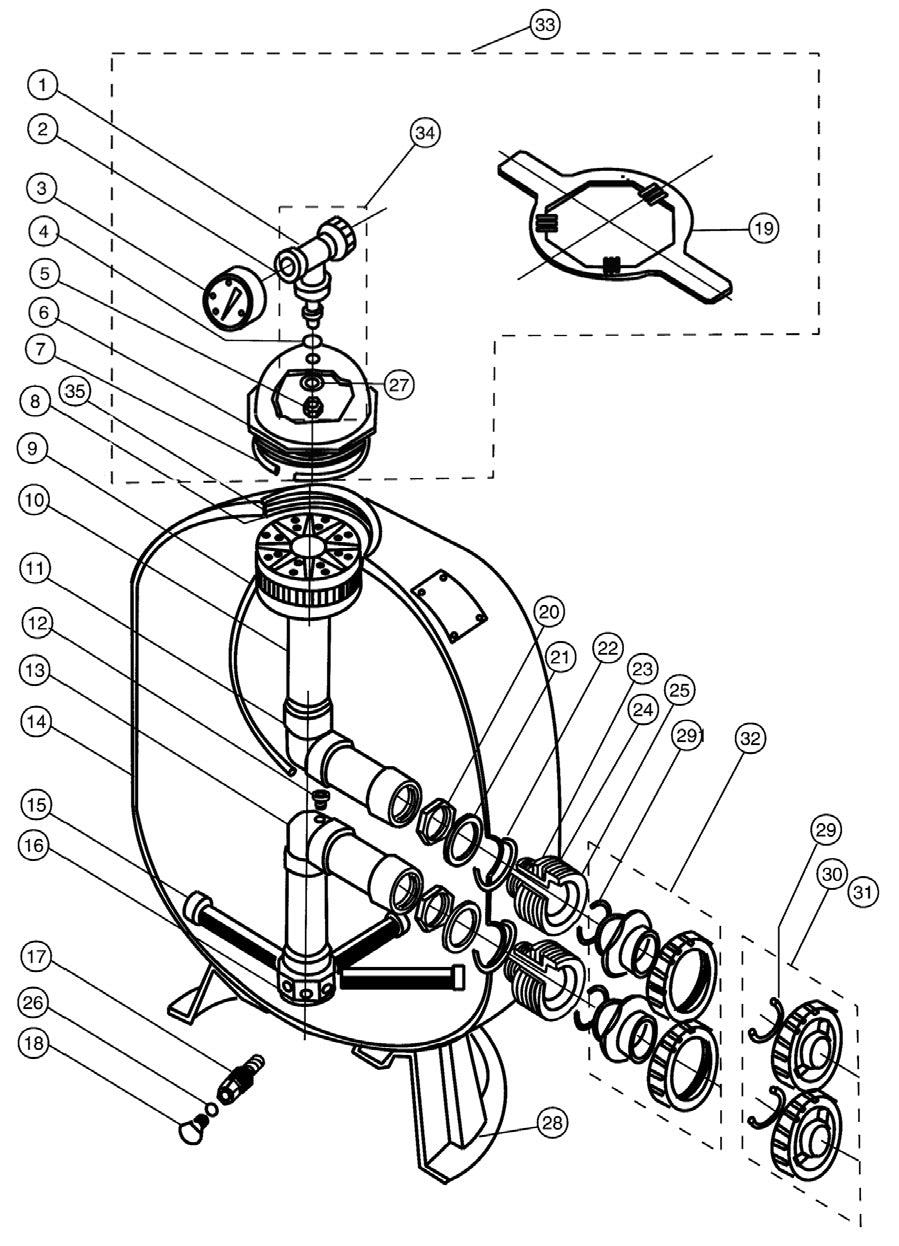

Replacement parts and exploded parts diagram for the Pentair 24" Triton II Side Mount Filter (model EC-140264). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #5 – 154664 – Nut, 3/8 in., 16 SS
- #6 – 154570 – Closure 6 in. btr. Thread
- #7 – 154494 – .157" x 5.75" Triton® II O-Ring Valve Adaptor (White)
- #9 – 154436 – Tube air Relief (All filters manufactured before 11-1-99)
- #9 – 150040 – Tube air Relief (Used on filters manufactured after 11-1-99)
- #11 – 154533 – Piping Assembly Upper
- #13 – 154805 – Piping Assembly Lower
- #14 – 154638 – Tank & ft. assembly, 6 in. btr. thd.
- #18 – 25010-0200 – Air Relief Valve Assembly for PLD & PTM Filter Systems
- #19 – 154510 – Wrench Closure aluminum, 6 in.
- #23 – 154408 – Spacer, 2 in. External (2 Required)
- #25 – 154405 – Bulkhead, 2 in. (2 Required)
- #27 – 154418 – Washer, 3/8 in. SS
- #29 – 35505-1424Z – Drain Plug O-Ring for 2.25" x .25" System:3® Filters (2 Required)
- #29 – U9-156 – 3/8" Pool Pump Header HUB Oring (2 Required)
- #31 – 271094 – 1-1/2 in. Thread Adapter kit (For installations without valve, pair)
- #32 – 271096 – 2 in. Slip Adapter kit (For installations without valve, pair)
- #33 – 155738Z – Kit closure, 8-1/2 in HD
- #35 – 154612 – Spacer air Vent strainer, 4-1/2 in.
- Not Shown – 154402 – Tape ft. Mounting (3 Required)
