Pentair 2" Sand Quad D.E. Multiport Valve 261055 Parts & Diagram

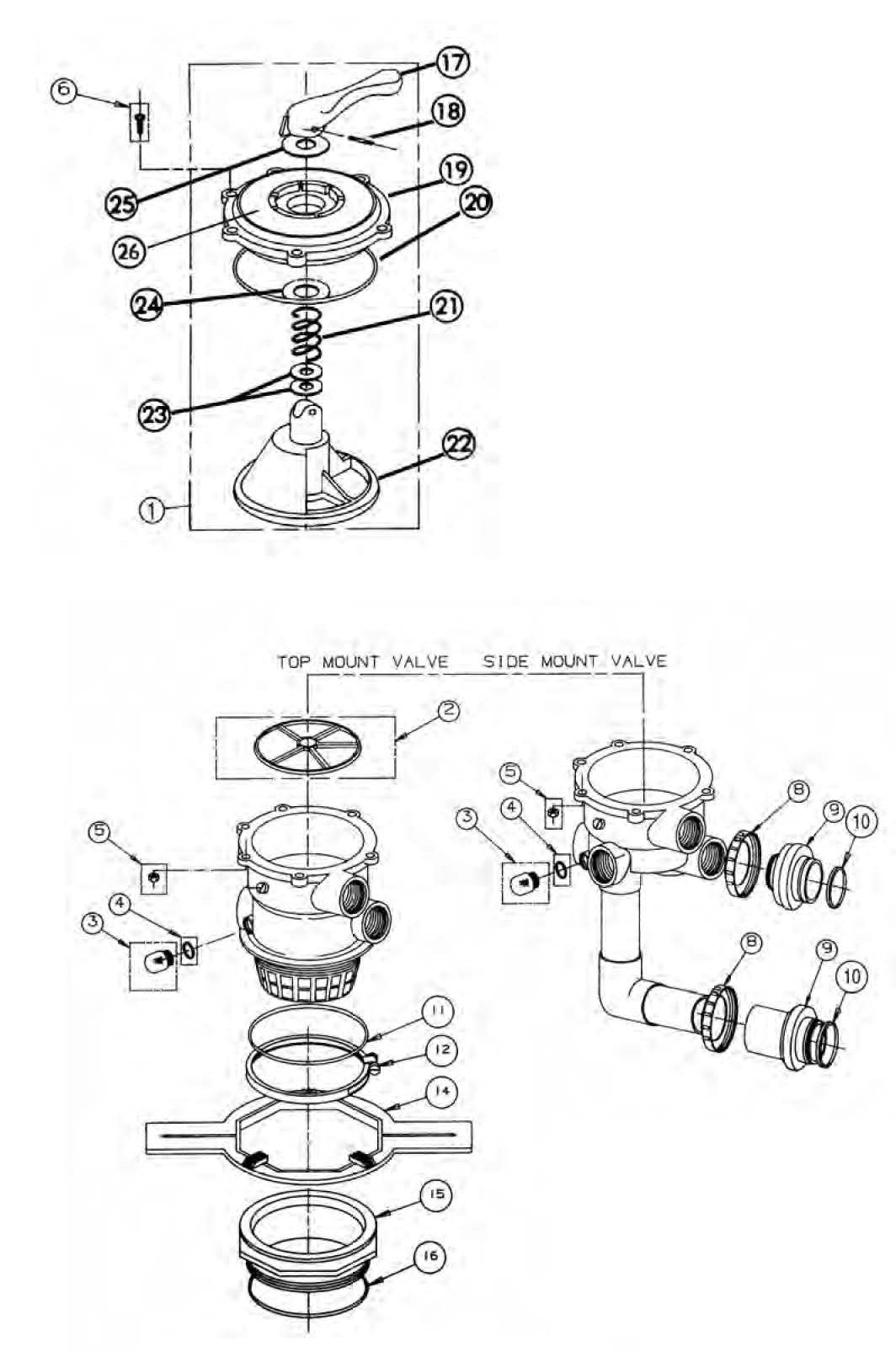

Replacement parts and exploded parts diagram for the Pentair 2" Sand Quad D.E. Multiport Valve (model 261055). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.

Parts marked Alternate are compatible replacements from other manufacturers.

Other Parts on This Diagram

These parts are not listed for online purchase. Contact us with the diagram number and part number to order.

  • #1 – 270068 – 1.5" Multiport Valve Top Assy
  • #1 – 270067 – 2" Multiport Valve Top Assy
  • #2 – 14971-SM10E12 – 1.5" SM MPV Spider Gasket
  • #2 – 14971-SM20E12 – 14971 SM20E12 2" Multiport Valve Diverter Gasket
  • #3 – 272550 – 6-WAY HI Flow MPV Sight Glass W/ Vacuum Projector
  • #10 – 35505-1424Z – SYSTEM:3 Drain Plug Oring
  • #10 – U9-156 – 3/8" Pool Pump Header HUB Oring
  • #12 – 152130 – 8.35" TA100/TA100D Clamp
  • #14 – 151608 – 9" Adapter Flange Wrench
  • #15 – 154555 – 6" Tagelus Filter Buttress Thrd Flange Adapter
  • #15 – 152520 – 6" Tagelus Filter Buttress Thread Flange Adapter
  • #15 – 154521 – 8.5" Buttress Threaded Valve Adapter
  • #16 – 154494 – Tagelus Valve Body/ Triton II Closure Oring
  • #16 – 152501 – 2" HI Flow TM/ SM MPV Adapter Oring
  • #18 – 271164 – HI Flow Tm/Sm MPV Handle Pin
  • #19 – 271165 – Black 1.5" HI Flow MPV Valve Top
  • #19 – 271166 – 2" Black HI Flow MPV Top Valve Cover
  • #19 – 271169 – 2" Black HI Flow MPV Top Valve Cover
  • #20 – 14971-SM20E7 – 2" SM MPV Cover Oring
  • #23 – 14971-SM10E10 – 1.5" & 2" SM MPV Oring
  • #26 – 271141 – Multiport Valve Label

Please confirm your model number matches your existing equipment before ordering.
