Maytronics Dolphin Explorer E70 Robotic Pool Cleaner 99996712-XP Parts & Diagram

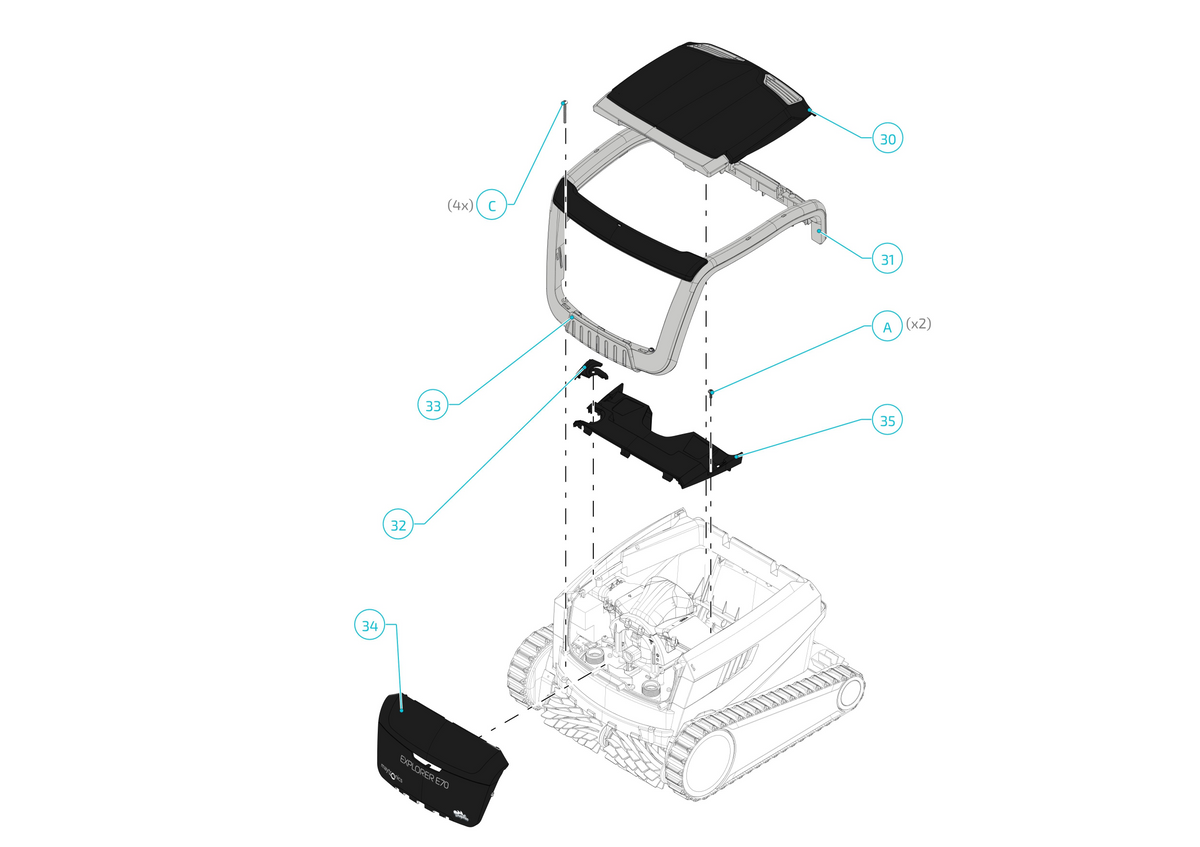

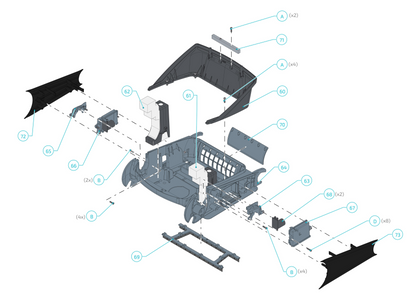

Replacement parts and exploded parts diagram for the Maytronics Dolphin Explorer E70 Robotic Pool Cleaner (model 99996712-XP). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #01.11.D – 3379410-A – Screw WN1412 A2 KA40X10 - Mtil

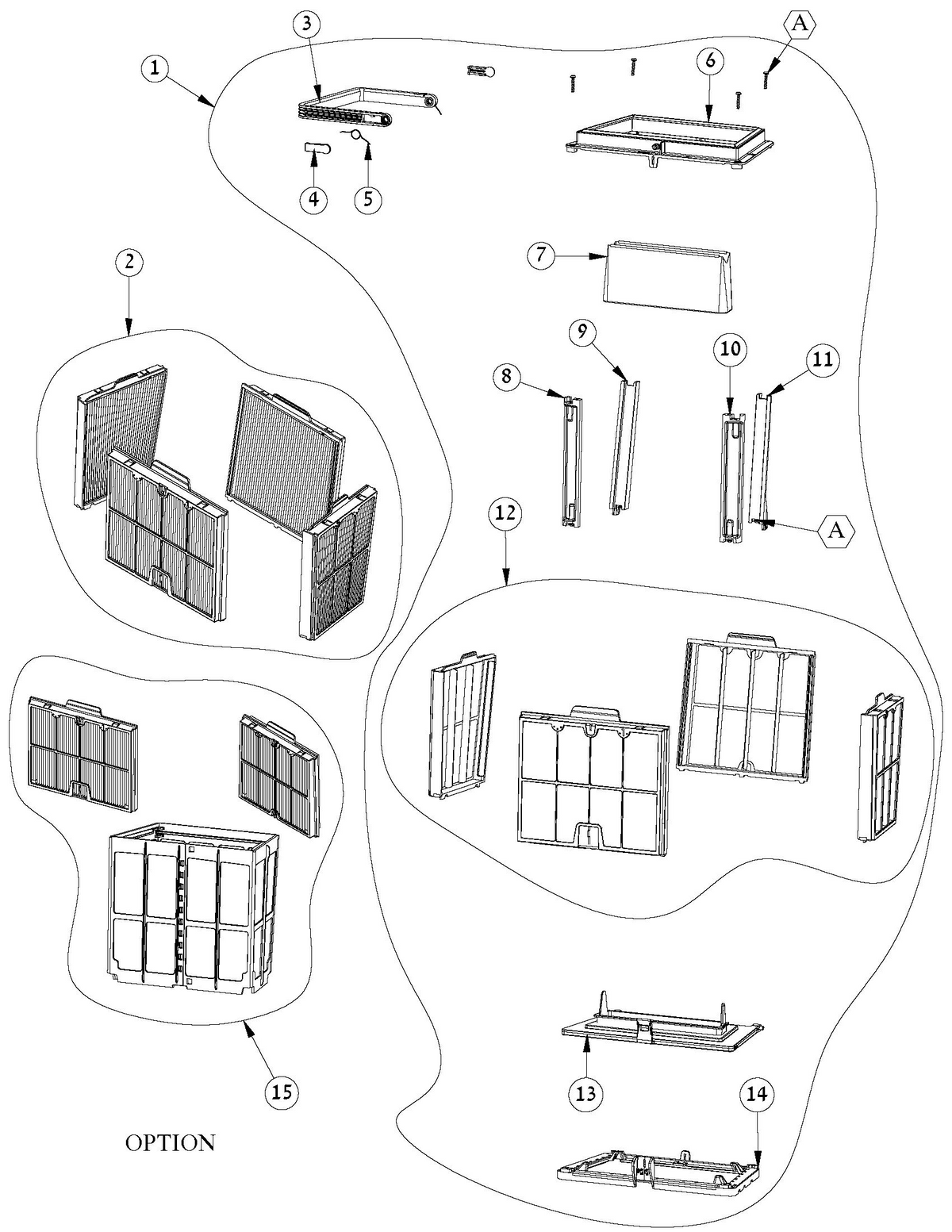

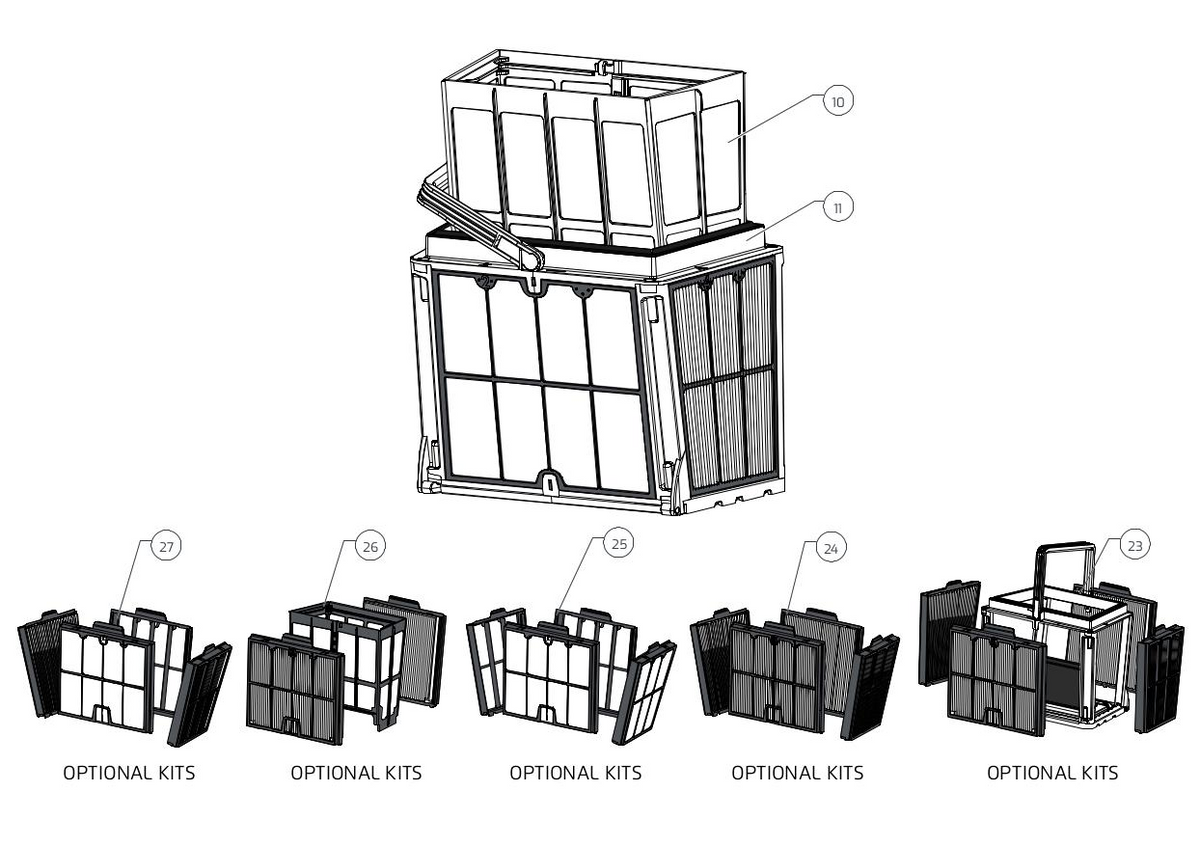

- #1.23 – 9991481-ASSY – Cartridge Filter iO Assy
- #1.24 – 9991467-ASSY – Ultra-Fine Filters (SET OF 4)
- #1.26 – 9991496-ASSY – Super Ultra Filter Basket (LARGE)
- #03.E – 3305030-A – Screw KA50X30 - Mtil

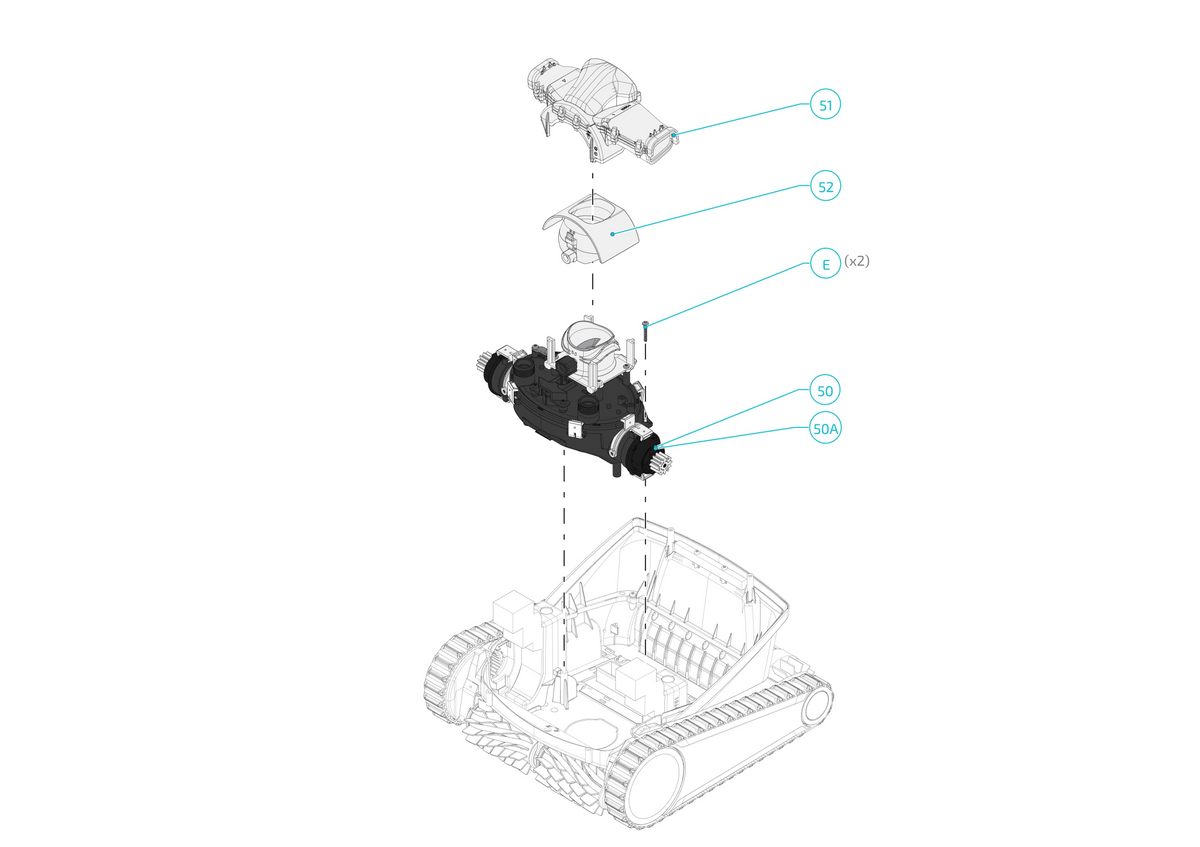

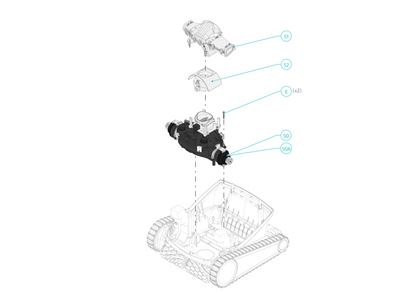

- #03.OLD3 – 9995395-EX – Motor Unit iO FFI EX (Not Shown)
- #03.OLD4 – 9995395-ASSY – Motor Unit iO FFI Assy
- #04.4.B – 3379440-A – Screw KA50X12 A2 WN1412 - Mtil
- #4.68 – 9991731-ASSY – Bypass Door Assy

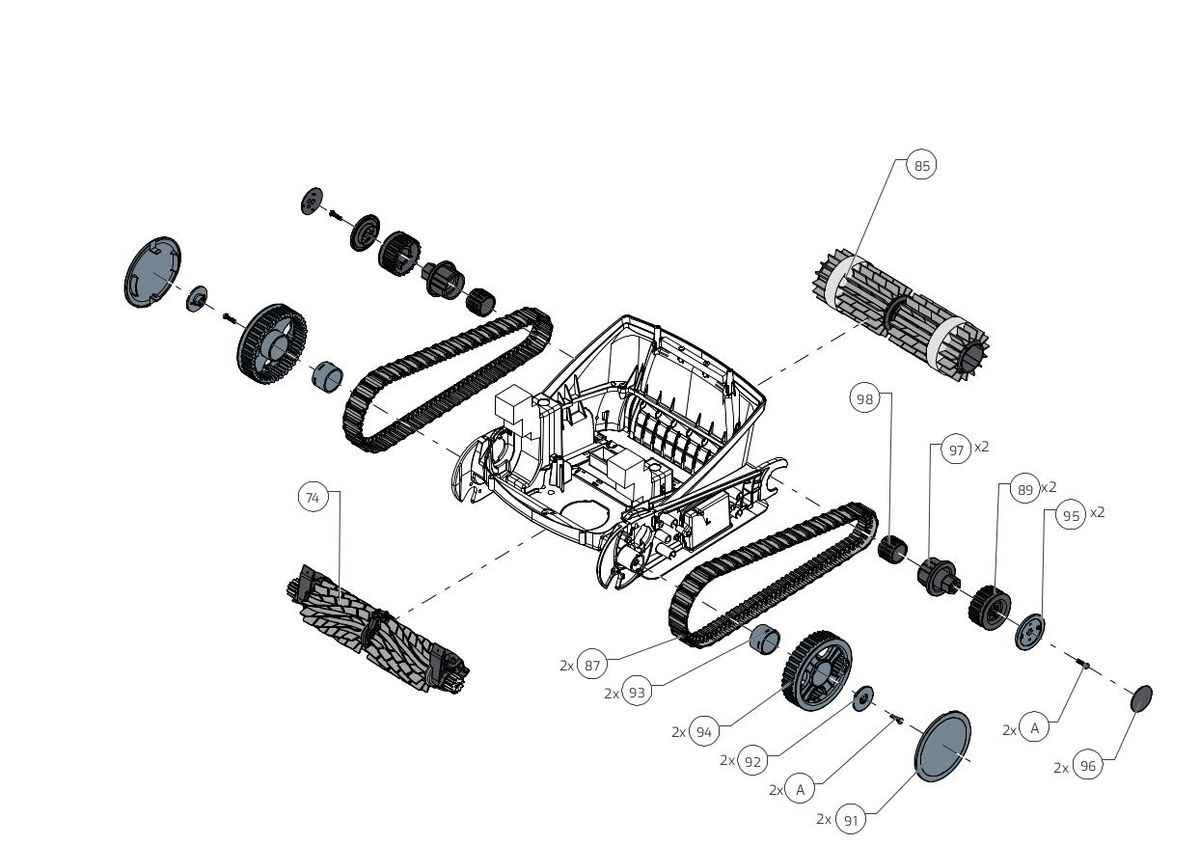

- #5.92 – 9983121 – *USE M96200031* Wheel Disk - Grey
- #5.94 – 9983379 – Front Wheel Grey iO&M600
- #5.98 – 9983115 – Brush Bushing 3

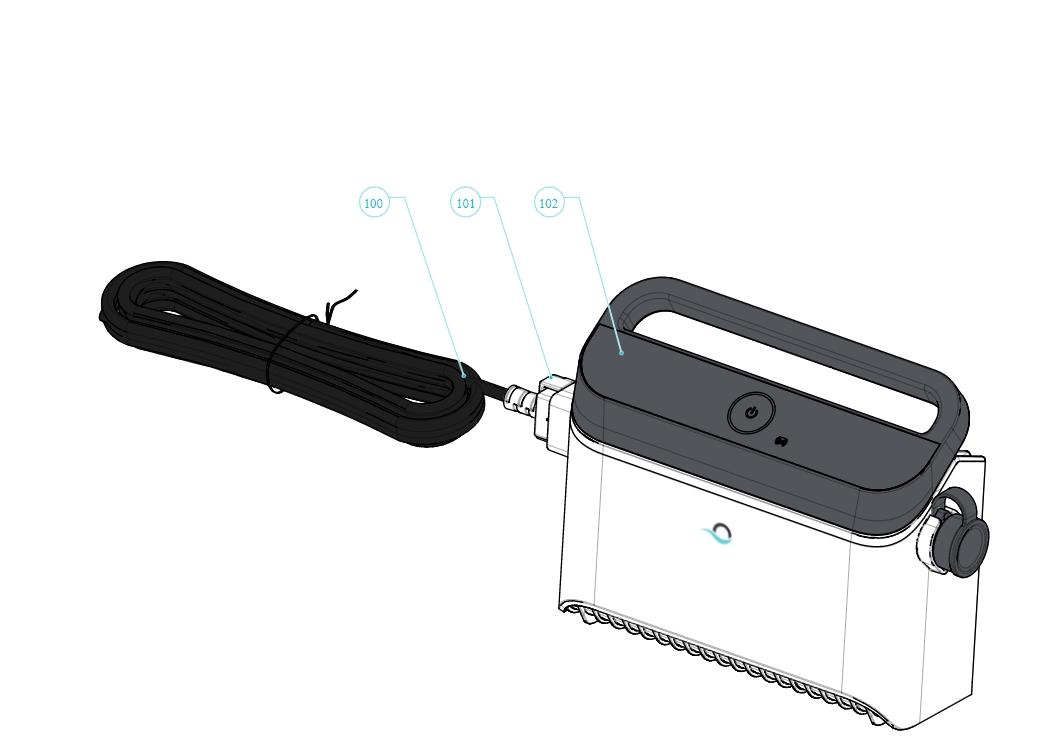

- #6.102 – 99956083-ASSYV4 – Power Supply IOT (not for Nautilus CC Plus)

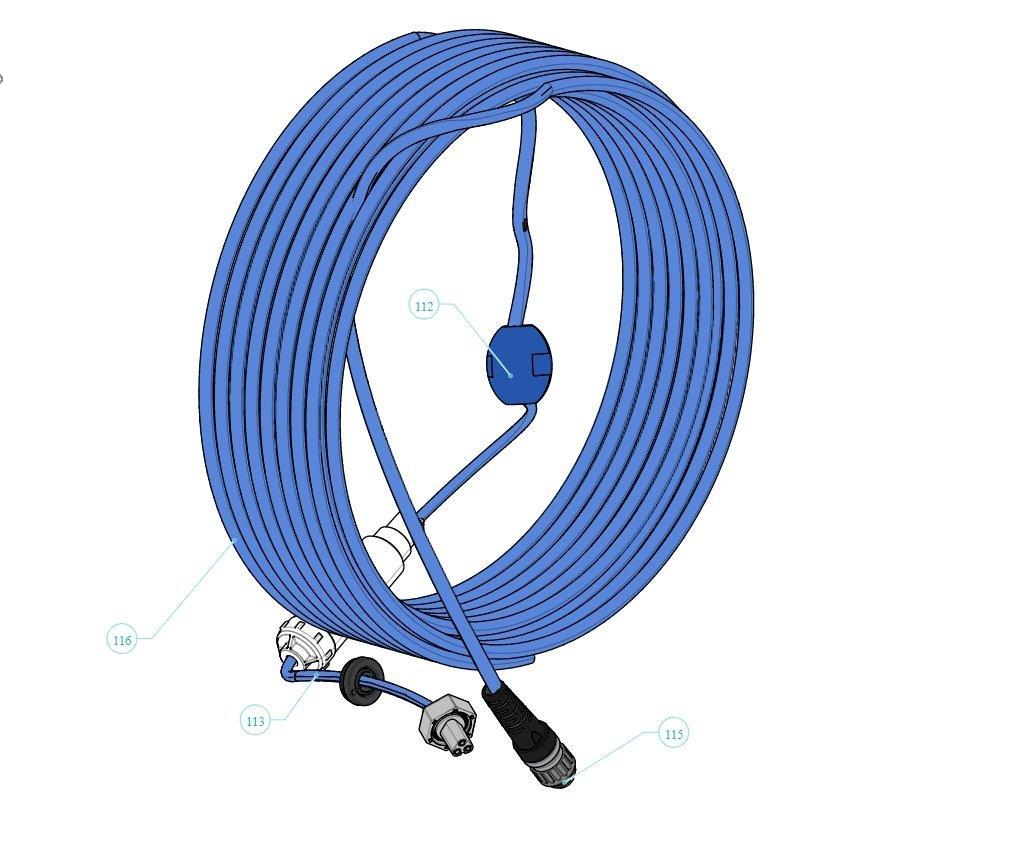

- #7.112 – 9995090 – Cable Float Assy - Small

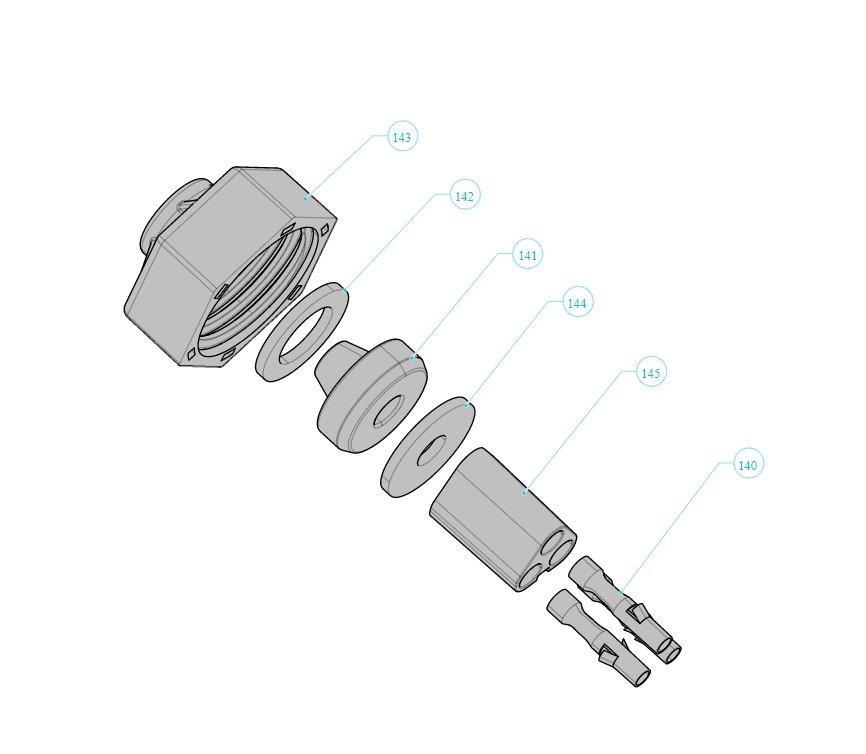

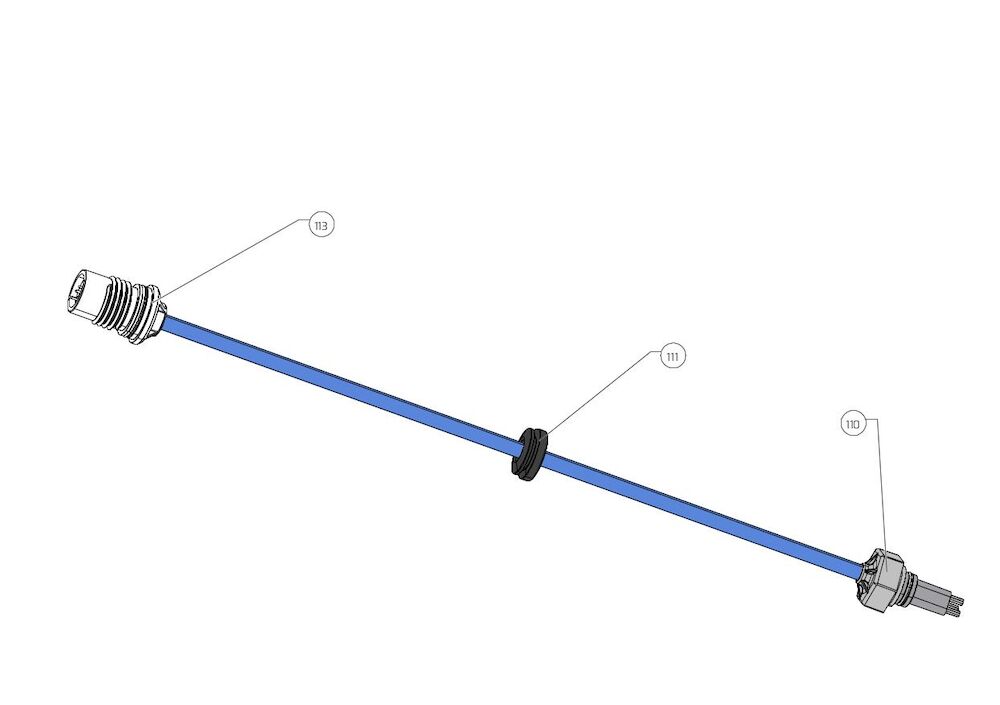

- #07.113.110.140 – 1811404 – Cable Connector
- #07.113.110.145 – 9985048 – Cable CONN.THREE Pin
- #8.09 – 99954230-R1 – Remote Control Unit Bluetooth

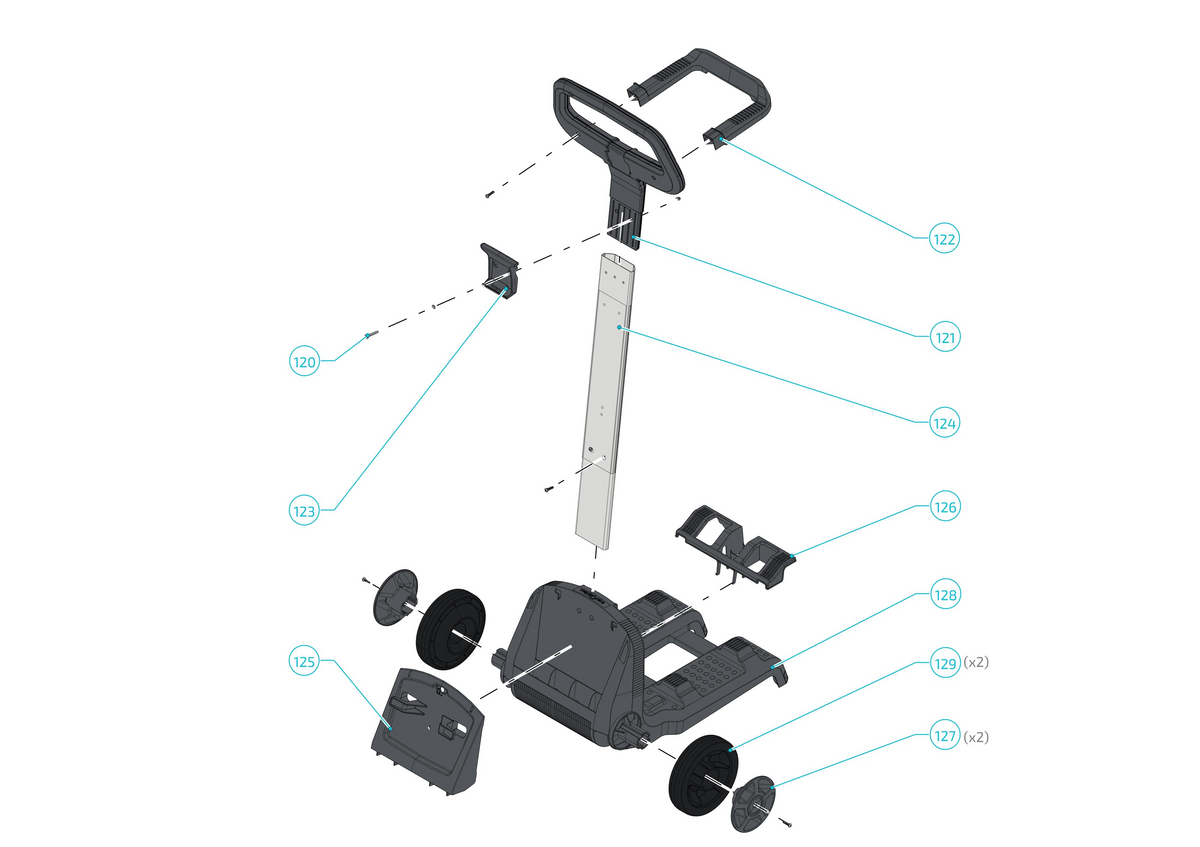

- #08.130.120 – 9991503-ASSY – Screw Kit FOR 9996098-ASSY
- #08.130.121 – 9991098 – Top Handle
- #08.130.122 – 9980675 – Handle Hook
- #08.130.123 – 9983202 – Caddy Adaptor FOR Power Supply ON Universal Caddy
- #08.130.124 – 4197023-ASSY – Profile AL. Caddy + Insert Assy
- #08.130.125 – 9983203 – Cover FOR Power Supply Housing ON Universal Caddy
- #08.130.126 – 9983181 – Caddy Adapter FOR 2015 Line ON Universal Caddy
- #08.130.127 – 9980672 – Wheel Cover NEW Caddy
- #08.130.128 – 9980670 – Base Caddy
- #08.130.129 – 9980681 – Wheel FOR Caddy OM
Please confirm your model number matches your existing equipment before ordering.
