Lochinvar EnergyRite Natural Gas Pool and Spa Heater 150K BTU 100143200 Parts & Diagram

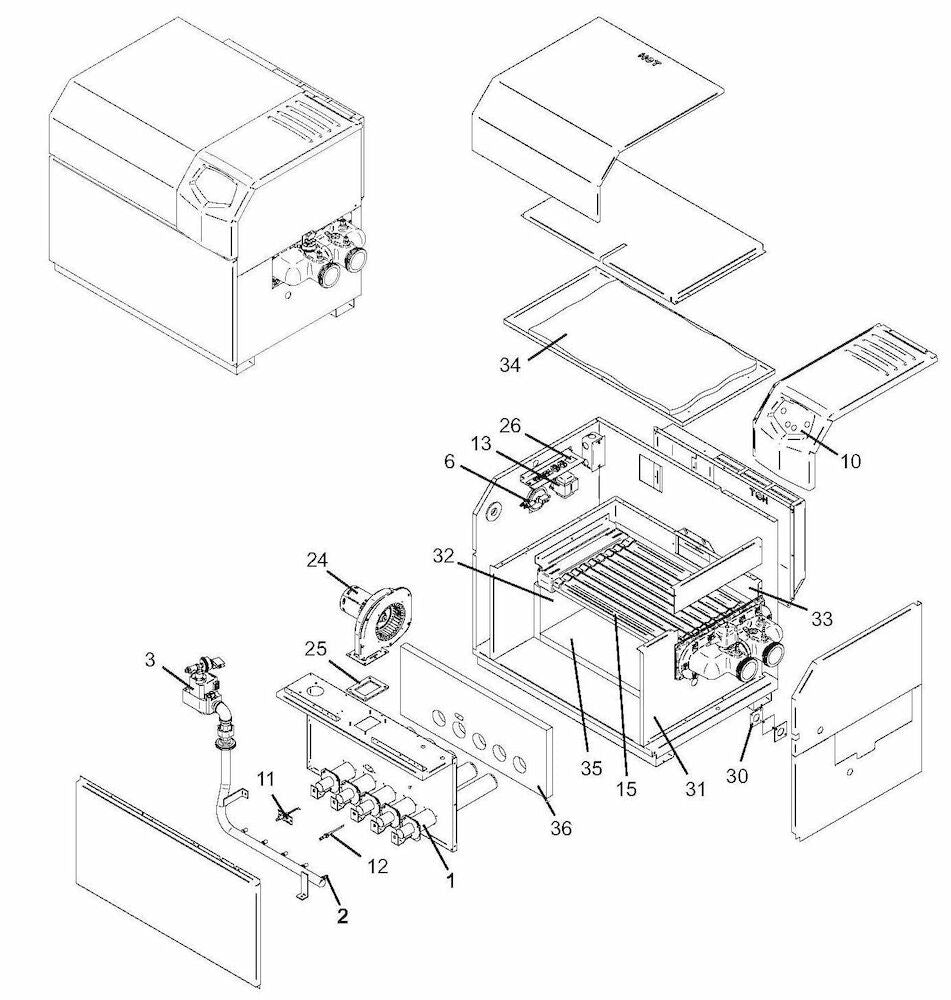

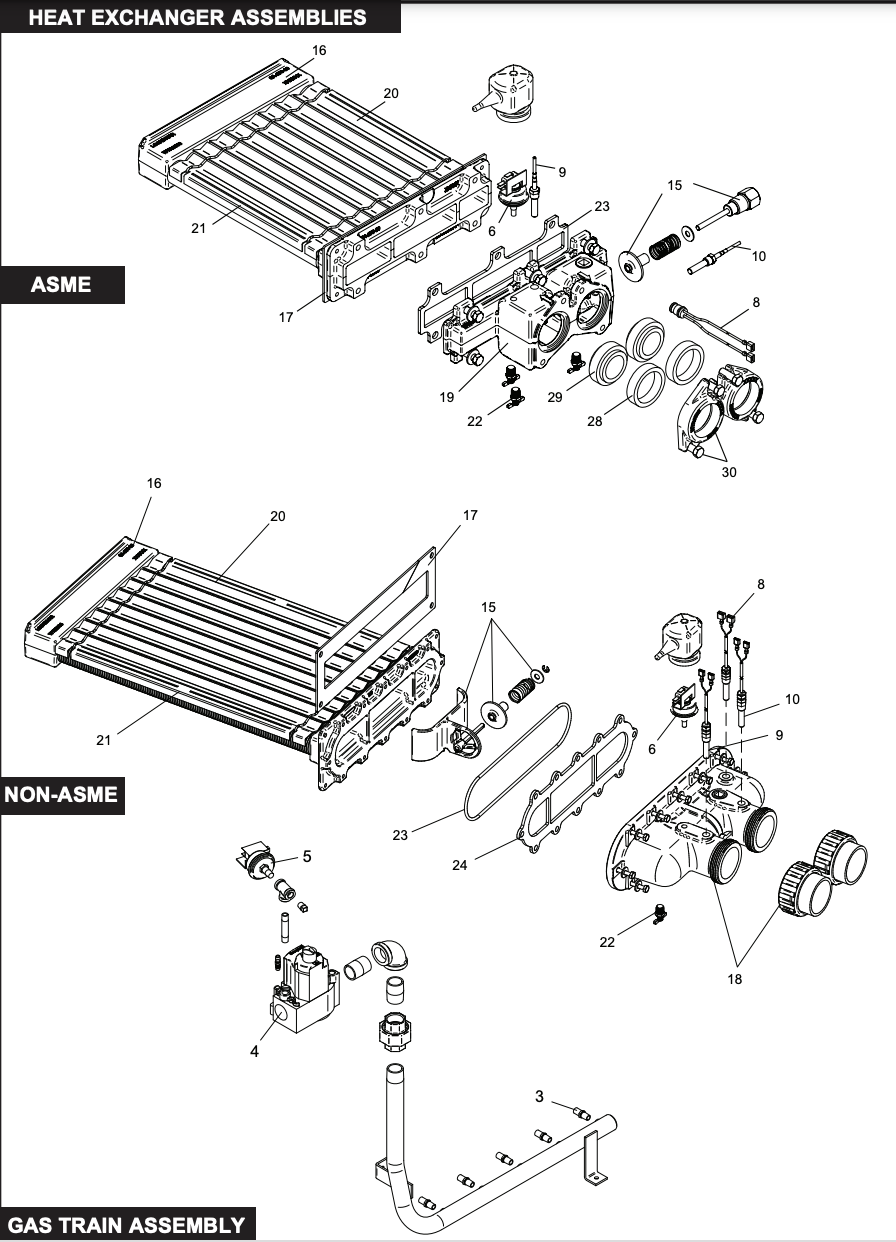

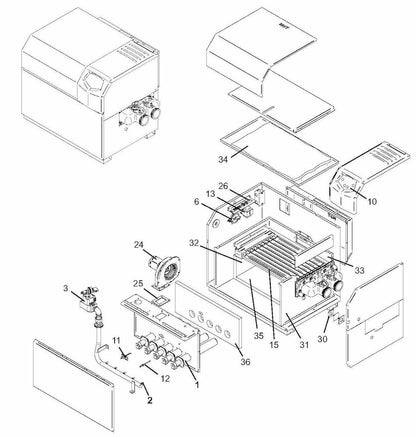

Replacement parts and exploded parts diagram for the Lochinvar EnergyRite Natural Gas Pool and Spa Heater 150K BTU (model 100143200). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #07 – TST2052 – 175^ ALL Non-Asme High Limit Temperature Switch
- #08 – TST2050 – 152-402 Emersion Inlet Sensor
- #09 – TST2054 – 152-402 Emersion Outlet Sensor
- #10 – 100071768 – RLY3090 152-402 Integrated Control
- #14 – 100163221 – ALL ER401 Asme Bypass Assy
- #14 – 100163257 – ALL ER151-301 Asme Bypass Assy
- #25 – GKT2009 – 151-401 Fan Gasket
- - – 100208454 – .75" Male Thrd Inlet Relief Valve
Please confirm your model number matches your existing equipment before ordering.
