Lochinvar EnergyRite Liquid Propane Pool and Spa Heater 200K BTU 100143162 Parts & Diagram

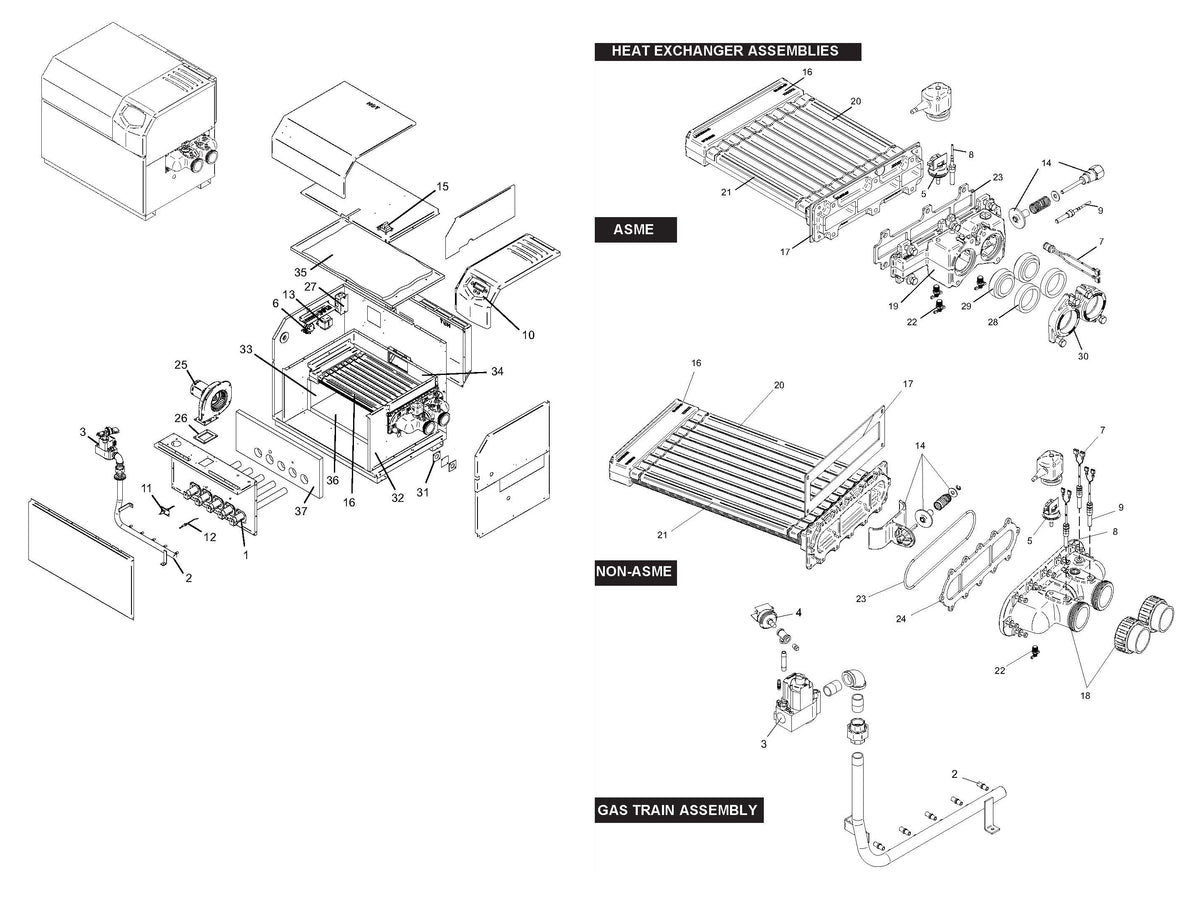

Replacement parts and exploded parts diagram for the Lochinvar EnergyRite Liquid Propane Pool and Spa Heater 200K BTU (model 100143162). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #3 – 100172023 – 152-402 Ignition/ LP GAS Valve
- #14 – 100163257 – ALL ER151-301 Asme Bypass Assy (ER 152 - 302 ASME )
- #14 – 100163221 – ALL ER401 Asme Bypass Assy (ER 402 ASME )
- #15 – 100095027 – RLY20142 Interlock Relay Board
- #15 – 100071768 – RLY3090 152-402 Integrated Control
- - – 100208454 – .75" Male Thrd Inlet Relief Valve (ALL NON-ASME )
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-100143162
Brand: Lochinvar
Price range
$34.05 - $432.85
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Lochinvar EnergyRite Liquid Propane Pool and Spa Heater 200K BTU (model 100143162)
- 15 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Lochinvar parts plus compatible alternates
- Add multiple parts to your cart at once
