Jandy VS FloPro Variable Speed Pump 2.7HP VSFHP270DV2A Parts & Diagram

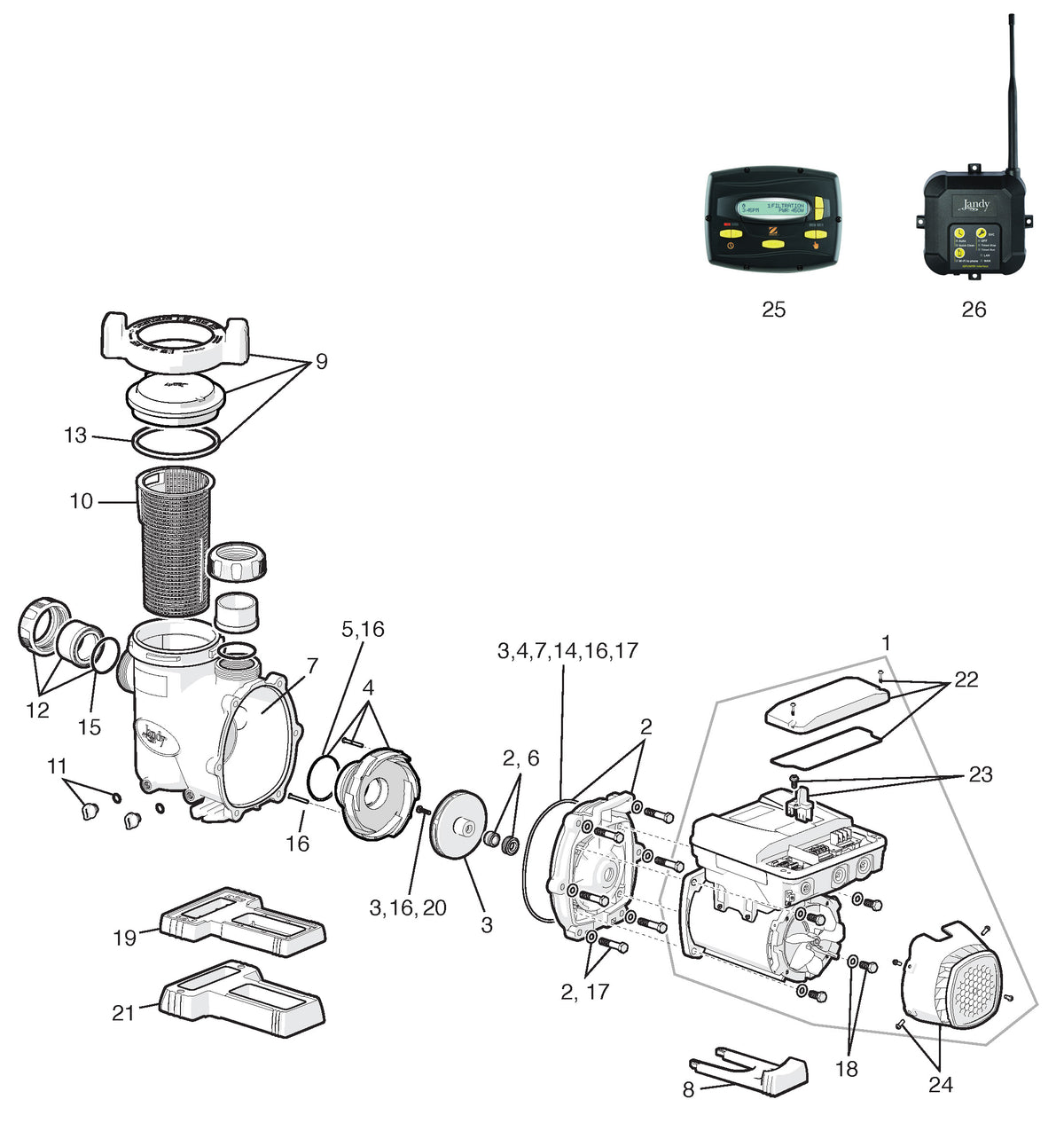

Replacement parts and exploded parts diagram for the Jandy VS FloPro Variable Speed Pump 2.7HP (model VSFHP270DV2A). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R0816800 – 2.7HP 115/230V Motor F/ DV2A Models
- #2 – R0479500 – Flopro Fhpm Series Backplate Kit (Backplate, Mounting Bolts/ Washers, Backplate O-Ring, Mechanical Seal )
- #4 – R0842500 – Diffuser Kit F/ VSFHP270DV2A (Diffuser w/ O-Ring, Mounting Screws , Backplate O-Ring )
- #6 – R0479400 – Fhpm/ JEP/ PHP/ SHP/ SWF/ Wftr Shaft Seal (Carbon and Ceramic )
- #7 – R0479800 – Fhpm Pump Body (Body and Backplate O-Ring )
- #8 – R0479900 – PRO Series Motor Mounting Foot
- #10 – R0480100 – FHP Strainer Basket
- #11 – R0446000 – 2/PK Drain Plug W/ Oring
- #12 – R0327301 – Fhpm Tailpiece & Union Nut Kit
- #13 – R0480200 – Fhpm Strainer Cover Oring
- #14 – R0480300 – FHP Backplate Oring
- #14 – R0555400 – Pot Lid O-Ring for JHP Series Pumps
- #16 – R0480400 – FHP Diffuser/ Impeller Hardware Kit (Impeller Mounting Screw, Diffuser Mounting Screw (2), Backplate O-Ring, Diffuser... )
- #17 – R0480500 – PRO Series Backplate Hardware FHP Vs-Fhp (Mounting Bolts/Washers , Backplate O-Ring )
- #18 – R0446700 – Shpshpm/ Phpphpm Motor Hardware Kit (Mounting Bolts/Washers )
- #19 – R0486700 – PRO Series Base Spacer FHP Vs-Fhp Small (FloPro Pumps )
- #20 – R0515400 – Shpshpm/Phpphpm Screw W/ Self-Sealing Oring
- #22 – R0851400 – DV2A Motor Access Lid Hardware Kit
- #23 – R0851500 – DV2A Motor RS485 Access Cover
- #24 – R0851600 – DV2A Motor Fan Shroud Kit
- #25 – JEP-R – Variable Speed Pump Remote Controller
Please confirm your model number matches your existing equipment before ordering.
