Jandy VS FloPro Variable Speed Pump 1.65HP VSFHP165AUT Parts & Diagram

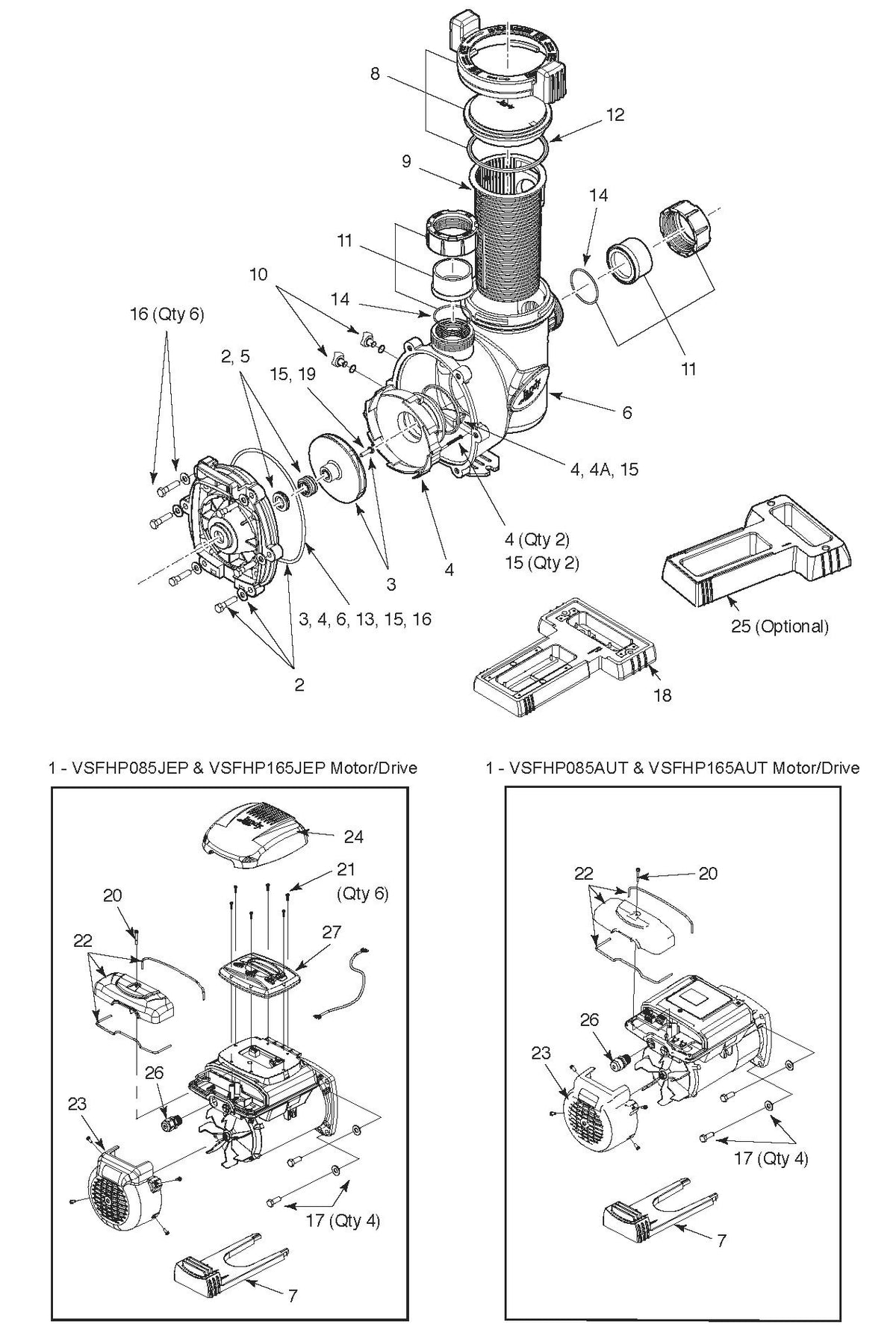

Replacement parts and exploded parts diagram for the Jandy VS FloPro Variable Speed Pump 1.65HP (model VSFHP165AUT). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R0571000 – PRO Series VS-FHP1.0 Drive Motor
- #2 – R0479500 – Flopro Fhpm Series Backplate Kit
- #3 – R0479603 – 1.5HP Fhpm Impeller Kit W/ Screw & Oring
- #4 – R0479701 – 1.5-2.5HP Fhpm Diffuser Kit
- #5 – R0479400 – Fhpm/ JEP/ PHP/ SHP/ SWF/ Wftr Shaft Seal
- #6 – R0479800 – Fhpm Pump Body
- #7 – R0479900 – PRO Series Motor Mounting Foot
- #9 – R0480100 – FHP Strainer Basket
- #10 – R0446000 – 2/PK Drain Plug W/ Oring
- #11 – R0327301 – Fhpm Tailpiece & Union Nut Kit
- #12 – R0480200 – Fhpm Strainer Cover Oring
- #13 – R0480300 – FHP Backplate Oring
- #13 – R0555400 – Pot Lid O-Ring for JHP Series Pumps
- #16 – R0480500 – PRO Series Backplate Hardware FHP Vs-Fhp
- #17 – R0446700 – Shpshpm/ Phpphpm Motor Hardware Kit
- #18 – R0486700 – PRO Series Base Spacer FHP Vs-Fhp Small
- #19 – R0660900 – VS Plushp/ Flopro 4-PIN Connector SP Drive
- #21 – R0515400 – Shpshpm/Phpphpm Screw W/ Self-Sealing Oring
- #23 – JEP-R – Variable Speed Pump Remote Controller
- #24 – R0571500 – PRO Series VS-FHP1.0 Controller Cover
- #24 – R0501100 – PRO Series Data Cable Bhed FIT STR Thru R Kit
- #26 – R0571400 – PRO Series VS-FHP1.0 Access Cover
- #27 – R0571600 – VS-FHP1.0 User Interface Screws
- #28 – R0501101 – .50 NPT VS-FHP1.0 Conduit Fitting
- #29 – R0587600 – VS-FHP1.0 Rear Access Cover Screw
Please confirm your model number matches your existing equipment before ordering.
