Jandy VS FloPro 2.7 HP Pump with SpeedSet Controller VSFHP270DV2AS Parts & Diagram

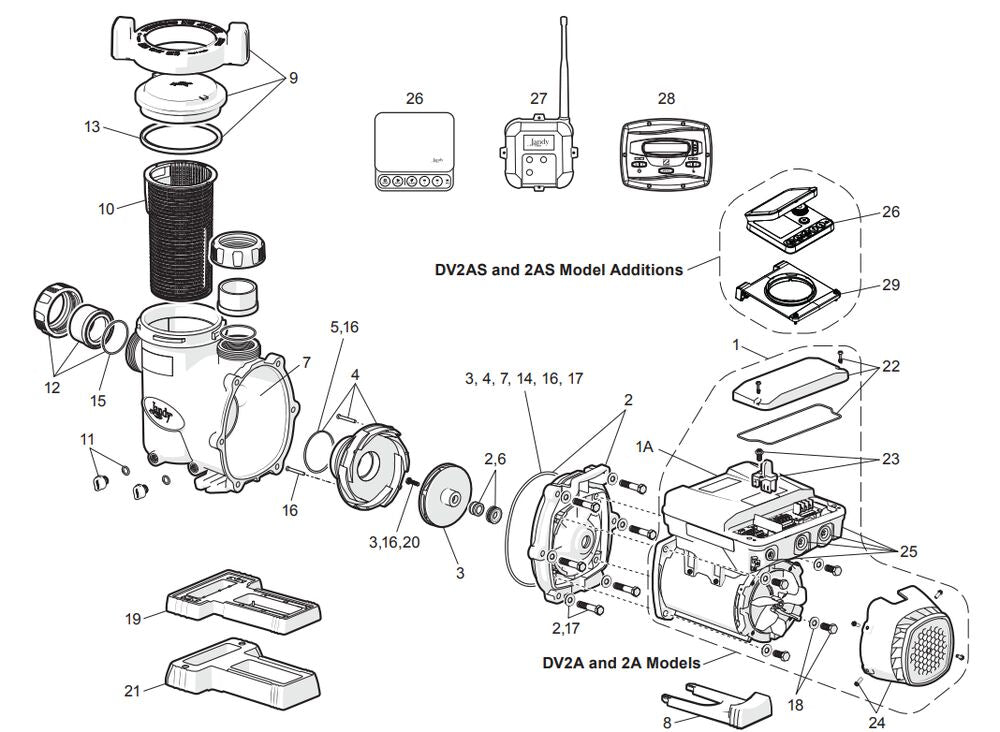

Replacement parts and exploded parts diagram for the Jandy VS FloPro 2.7 HP Pump with SpeedSet Controller (model VSFHP270DV2AS). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R0816800 – Motor and Drive, 2.7 HP DV2A Models
- #2 – R0479500 – Backplate Replacement Kit (Backplate, Mounting Bolts/Washers (6), Backplate O-Ring. Mechanical Seal)
- #4 – R0842500 – Diffuser Kit, 2.7 HP
- #6 – R0479400 – Mechanical Seal (Carbon and Ceramic)
- #7 – R0479800 – Pump Body (Body and Backplate O-Ring)
- #8 – R0479900 – Motor Mounting Foot
- #10 – R0480100 – Filter Basket
- #11 – R0446000 – Drain Plug w/ O-Ring (Set of 2)
- #12 – R0327301 – Tailpiece (2"), Union Nut, O-Ring
- #13 – R0480200 – Lid O-Ring
- #14 – R0480300 – Backplate O-Ring
- #14 – R0555400 – Pot Lid O-Ring for JHP Series Pumps
- #16 – R0480400 – Impeller/Diffuser Hardware Kit (Impeller Mounting Screw, Diffuser Mounting Screw (2), Backplate O-Ring, Diffuser O-Ring)
- #17 – R0480500 – Backplate Hardware Kit (Mounting Bolt/Washers (6), Backplate O-Ring)
- #18 – R0446700 – Motor Mounting, Bolts/Washers
- #19 – R0486700 – Small Adjustable Base With Spacers
- #20 – R0515400 – Impeller Mounting Screw w/ O-Ring
- #22 – R0851400 – Wiring Compartment Lid, Gasket, Mounting Screws (2)
- #23 – R0851500 – RS485 Access Cover, Retaining Screw
- #24 – R0851600 – Fan Shroud, Mounting Screws (4)
- #28 – JEP-R – Variable Speed Pump Controller
Please confirm your model number matches your existing equipment before ordering.
