Jandy Neverlube 2-in-1 Backwash Valve 8034 Parts & Diagram

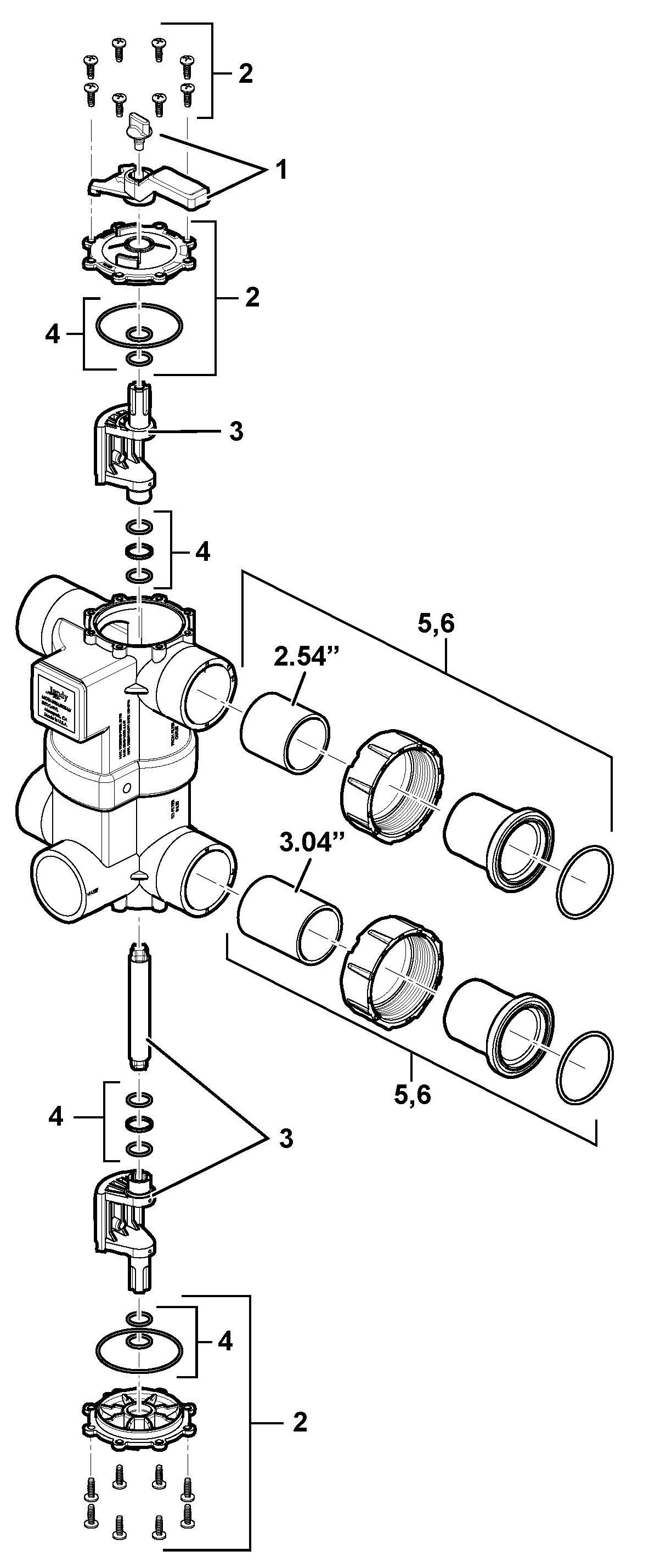

Replacement parts and exploded parts diagram for the Jandy Neverlube 2-in-1 Backwash Valve (model 8034). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – R0552100 – PRO Series Handle Backwash Valve R Kit
- #2 – 1132+ – O-Ring Valve Housing
- #2 – 1307 – Neverlube Diverter Shaft O-Ring
- #2 – R0487100 – Space Saver 3-Port Valve Shaft O-Ring
- #2 – R0552200 – 2-IN-1 Backwash Valve Cover Kit
- #3 – R0552300 – 2-IN-1 Backwash Diverter Kit
- #4 – R0552400 – 2-IN-1 Backwash Oring Kit
- #5 – R0414000 – 8034J Pre-Plumbed Kit W/ Union (8034J )
- #7 – 8044 – 2" Backwash Valve Versa Coupling
Please confirm your model number matches your existing equipment before ordering.
GTIN:
SKU: DIAGRAM-8034
Brand: Jandy
Price range
$4.77 - $20.55
Tax and shipping are calculated at checkout.
Expert Support
Secure Checkout
Quality Guaranteed
Fast Shipping 3-5 Days
Key Features
- Exploded parts diagram for the Jandy Neverlube 2-in-1 Backwash Valve (model 8034)
- 4 replacement parts available to order online
- Diagram number shown next to every part for easy matching
- Genuine Jandy parts plus compatible alternates
- Add multiple parts to your cart at once
