Jandy JXi Natural Gas Low-NOx Pool and Spa Heater 260K BTU JXI260N Parts & Diagram

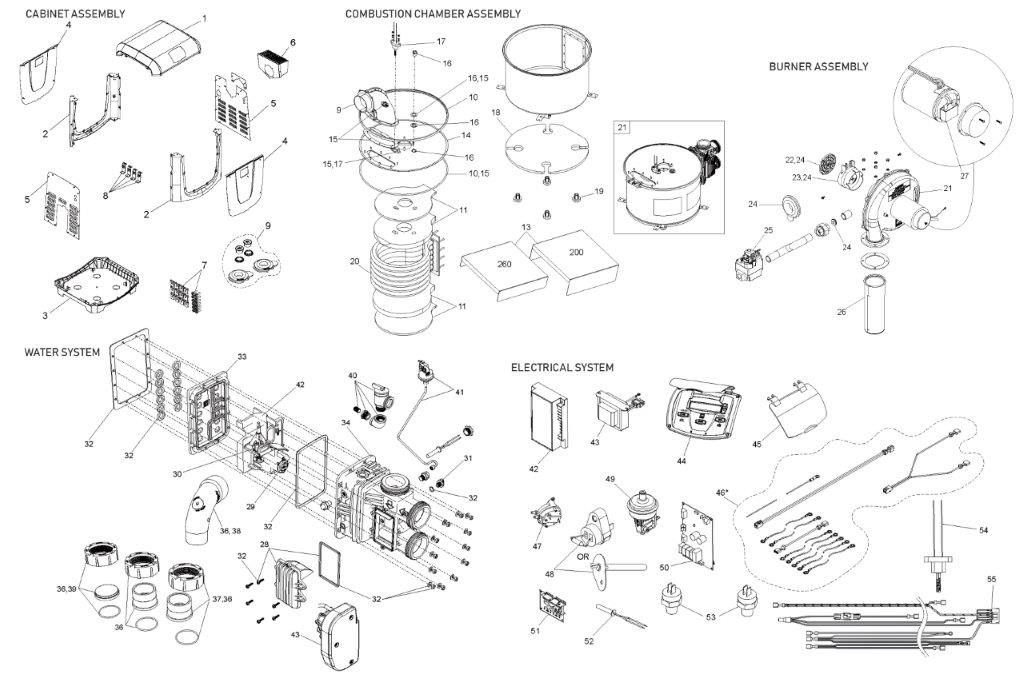

Replacement parts and exploded parts diagram for the Jandy JXi Natural Gas Low-NOx Pool and Spa Heater 260K BTU (model JXI260N). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – R0592500 – JXI Jacket Corner Post (Cabinet Assembly)
- #3 – R0592600 – JXI Base Kit (Cabinet Assembly)
- #4 – R0592700 – JXI Front/ Back Panel (Cabinet Assembly)
- #5 – R0592900 – 2/SET Side Panel Kit (Cabinet Assembly)
- #7 – R0593300 – JXI Jacket Hardware Kit (Cabinet Assembly)
- #9 – R0591800 – JXI GAS Inlet & Electric Hole Plug Kit (Cabinet Assembly)
- #9 – R0590200 – JXI Exhaust Elbow Assy (Combustion Chamber Assembly)
- #10 – R0590400 – JXI Band Clamp Kit (Combustion Chamber Assembly)
- #11 – R0590500 – JXI Internal Refractory Repl Kit (Combustion Chamber Assembly)
- #13 – R0590700 – JXI Combustion Chamber Shelf Kit (Combustion Chamber Assembly)
- #14 – R0590800 – JXI Combustion Chamber Lid (Combustion Chamber Assembly)
- #16 – R0305400 – JXI Sight Glass Kit (Combustion Chamber Assembly)
- #18 – R0591000 – JXI External Refractory Kit (Combustion Chamber Assembly)
- #21 – R0805803 – JXI260 Heat Exchanger W/ Header & Combustion Chamber (Combustion Chamber Assembly)
- #22 – R0591200 – JXI AIR Intake Grate (Burner Assembly)
- #26 – R0591703 – 260 JXI Burner GAS Supply System Kit (Burner Assembly)
- #29 – R0589700 – JXI Thermal Regulator Valve (Water System)
- #31 – R0446000 – 2/PK Drain Plug W/ Oring (Water System)
- #33 – R0590003 – 260 JXI Manifold Backplate (Water System)
- #37 – R0449000 – 2" x 2 1/2" Tail Piece With O-Ring and Coupling Nut Set of 2 (Water System)
- #38 – SEAQL1001 – RS Temp Sensor Aqualink Sweep Elbow (Water System)
- #42 – R0725202 – 260K JXI Flow Plate Assy (Water System)
- #43 – JXIVFKIT – JXI Versaflo Bypass Accessory Kit (Water System)
- #52 – R0456500 – JXI/ LXI/ Legacy Temperature Sensor (Electrical System)
- #55 – R0457700 – JXi Power Interface Harness (Electrical System)
Please confirm your model number matches your existing equipment before ordering.
