Jandy JXi Natural Gas Low-NOx Pool and Spa Heater 200K BTU JXI200N Parts & Diagram

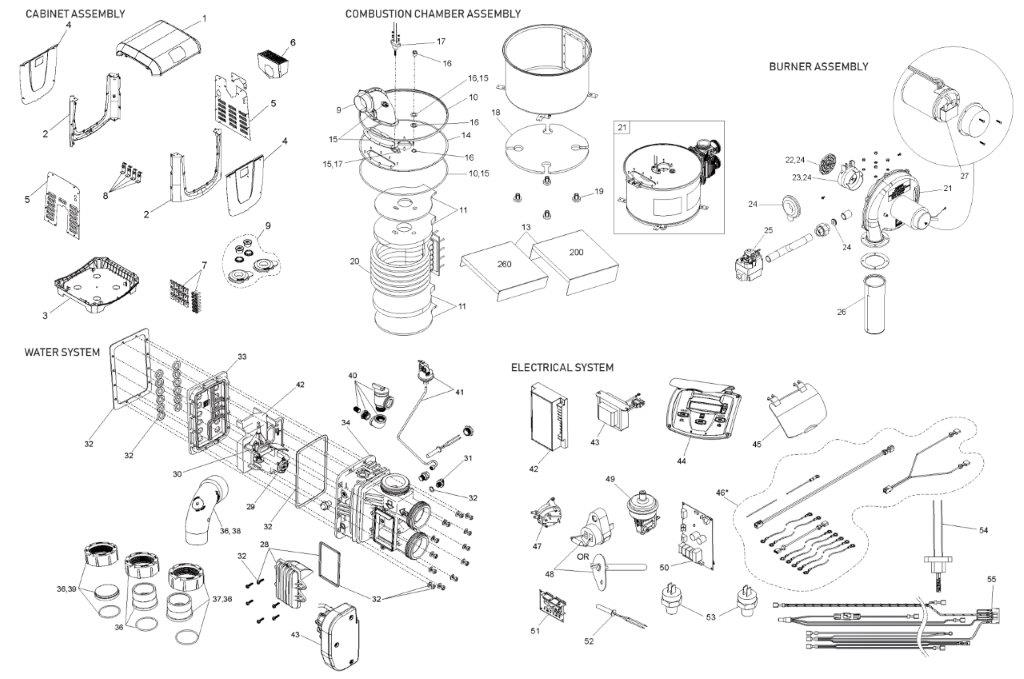

Replacement parts and exploded parts diagram for the Jandy JXi Natural Gas Low-NOx Pool and Spa Heater 200K BTU (model JXI200N). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – R0592500 – JXI Jacket Corner Post (Cabinet Assembly)
- #3 – R0592600 – JXI Base Kit (Cabinet Assembly)
- #4 – R0592700 – JXI Front/ Back Panel (Cabinet Assembly)
- #5 – R0592900 – 2/SET Side Panel Kit (Cabinet Assembly)
- #7 – R0593300 – JXI Jacket Hardware Kit (Cabinet Assembly)
- #9 – R0591800 – JXI GAS Inlet & Electric Hole Plug Kit (Cabinet Assembly)
- #9 – R0590200 – JXI Exhaust Elbow Assy (Combustion Chamber Assembly)
- #10 – R0590400 – JXI Band Clamp Kit (Combustion Chamber Assembly)
- #11 – R0590500 – JXI Internal Refractory Repl Kit (Combustion Chamber Assembly)
- #13 – R0590700 – JXI Combustion Chamber Shelf Kit (Combustion Chamber Assembly)
- #14 – R0590800 – JXI Combustion Chamber Lid (Combustion Chamber Assembly)
- #16 – R0305400 – JXI Sight Glass Kit (Combustion Chamber Assembly)
- #18 – R0591000 – JXI External Refractory Kit (Combustion Chamber Assembly)
- #20 – R0589402 – JXI200 Copper Heat Exchanger (Combustion Chamber Assembly)
- #22 – R0591200 – JXI AIR Intake Grate (Burner Assembly)
- #23 – R0591302 – 200K JXI NG Blower AIR Intake Orifice Kit (Burner Assembly)
- #29 – R0589700 – JXI Thermal Regulator Valve (Water System)
- #31 – R0446000 – 2/PK Drain Plug W/ Oring (Water System)
- #33 – R0590002 – 200 JXI Manifold Backplate (Water System)
- #37 – R0449000 – 2" x 2 1/2" Tail Piece With O-Ring and Coupling Nut Set of 2 (Water System)
- #38 – SEAQL1001 – RS Temp Sensor Aqualink Sweep Elbow (Water System)
- #42 – R0725201 – 200K JXI Flow Plate Assy (Water System)
- #43 – JXIVFKIT – JXI Versaflo Bypass Accessory Kit (Water System)
- #52 – R0456500 – JXI/ LXI/ Legacy Temperature Sensor (For Model 200, 260, 400)
- #55 – R0457700 – JXi Power Interface Harness (200, 260, 400 )
Please confirm your model number matches your existing equipment before ordering.
