Hayward Universal HC Series Dual Fuel Heater 400K BTU HDF400 Parts & Diagram

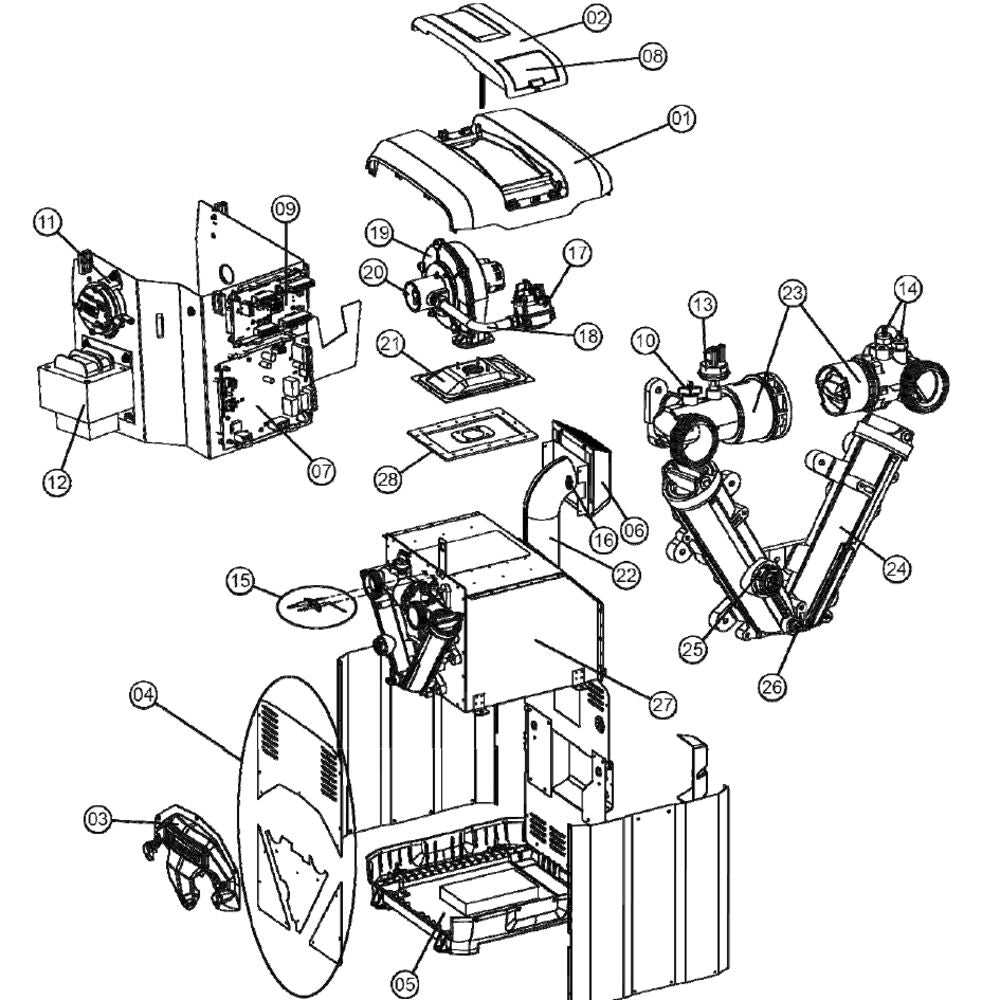

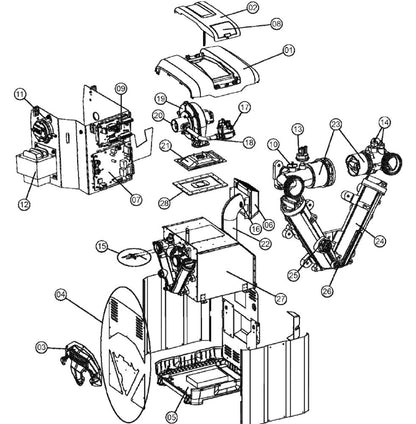

Replacement parts and exploded parts diagram for the Hayward Universal HC Series Dual Fuel Heater 400K BTU (model HDF400). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1 – HDXFTOP001 – Cabinet Top
- #2 – HDXFCAP001 – Control Access Panel Assembly
- #3 – HDXFHCC001 – Header Controls Cover
- #4 – HDXFWTP001 – Water Side Trim Panels
- #5 – HDXFBOT001 – Cabinet Base
- #6 – HDXFEXB001 – Exhaust Box Assembly
- #14 – HDXFHLI400 – HDF High Limit Kit
- #15 – HDXFIGFS001 – Ignitor & Flame Sensor
- #17 – HDXFGSV001 – Gas Valve
- #18 – HDXFMAN001 – Gas Manifold
- #20 – HDXFMXN400 – Natural Gas Fuel/Air Mixer
- #20 – HDXFMXP400 – Propane Fuel/Air Mixer
- #22 – HDXFEXP001 – Exhaust Pipe Assembly
- #23 – HDXFIOH001 – HDF Inlet/Outlet Header Kit
- #24 – HDXFVHD001 – V-Header Assembly
- #25 – CHXPLG1930 – Pressure Relief Port Plug
- #27 – HDXFHXA400 – HDF Combustion Chamber Replacement Kit
