Hayward TriStar XL 3000 Series Variable Speed Pool Pump 4HP HCP3040VSP Parts & Diagram

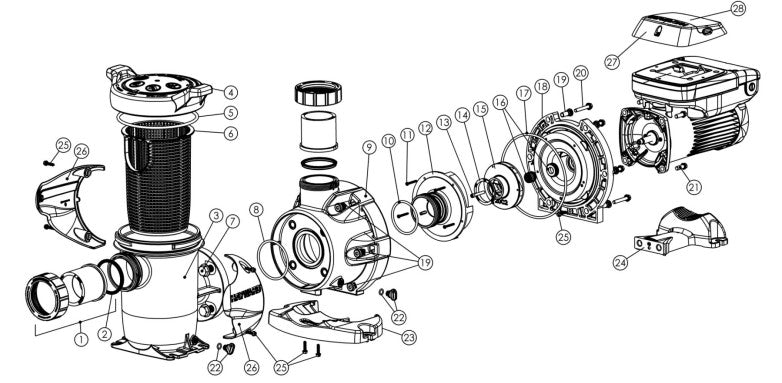

Replacement parts and exploded parts diagram for the Hayward TriStar XL 3000 Series Variable Speed Pool Pump 4HP (model HCP3040VSP). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #2 – HCXP3000UG – Union Gasket
- #3 – HCXP3000H – Strainer Housing With Drain Plug
- #4 – HCXP3000DLS – Stainer Cover Kit (Includes strainer cover, lock ring, and o-ring)
- #7 – HCXP3000Z3 – Strainer Housing Flange Bolt/Washer
- #9 – HCXP3000A – Pump Housing With Drain Plug
- #11 – SPX2700z3SSPAK4 – Diffuser Screws (4 Pack)
- #13 – SPX3200Z1 – Impeller Screw
- #19 – SPX3200Z211 – Housing Insert/Seal Plate Spacer Kit
- #20 – SPX3200Z3 – Housing Bolt
- #21 – SPX3200Z34PAK4 – Motor Bolt (4 Pack)
- #22 – SPX4000FG – Drain Plug With O-Ring
- #23 – HCXP3000F – Pump Housing Base
- #25 – SPX1600Z5SSPAK7 – Base Screws (7 Pack)
- #26A – HCXP3000N250 – Right and Left Side Plate Set (Platinum Color)
- #26B – HCXP3000N251 – Right and Left Side Plate Set (Blue Color)
- #28 – SPX3400DR4 – Motor Drive Display Cover
Please confirm your model number matches your existing equipment before ordering.
