Hayward TriStar VS 815 Variable Speed Pump with Omnix W3VSP32815 Parts & Diagram

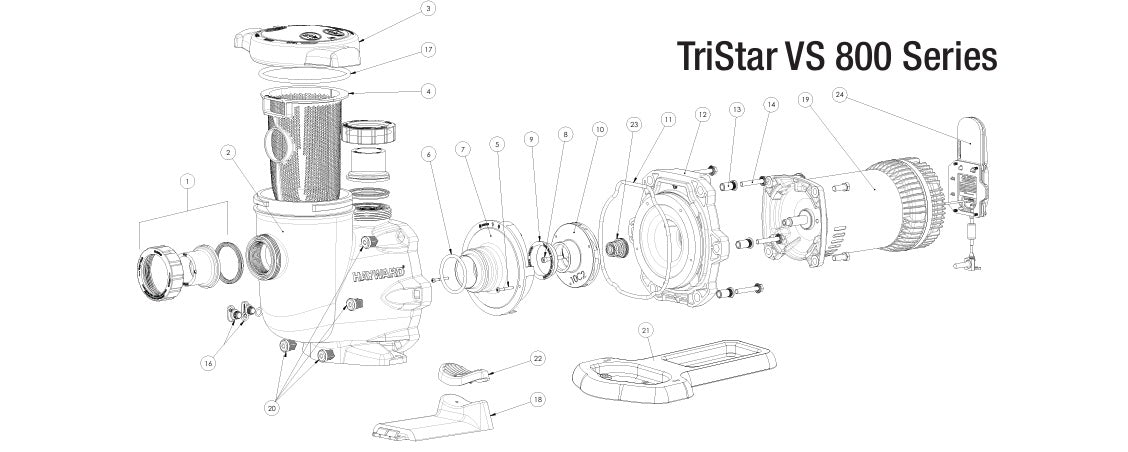

Replacement parts and exploded parts diagram for the Hayward TriStar VS 815 Variable Speed Pump with Omnix (model W3VSP32815). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #5 – SPX3200Z8 – Diffuser Screw
- #6 – SPX4000Z1 – Diffuser O-Ring
- #8 – SPX3200Z1 – Impeller Screw
- #9 – SPX3021R – Impeller Ring
- #10A – SPX3207C – 1.25THP Impeller With Impeller Screw
- #10B – SPX3210C – 1.85THP Impeller With Impeller Screw
- #10C – SPX3215C – 2.25THP Impeller With Impeller Screw
- #11 – SPX3200T – Housing O-Ring
- #14 – SPX3200Z3 – Housing Bolt
- #16 – SPX4000FG – Drain Plug With O-Ring
- #18 – SPX3200GA – Motor Support
- #20 – SPX3200Z211 – Housing Insert/Seal Plate Spacer Kit
- #21B – SPX3200SR – Optional Riser Base (aligns With Pentair" WhisperFlo" pump*)
- #22 – SPX3200Q2 – Motor Support Adapter
- #23A – SPX3200SA – Shaft Seal Assembly
Please confirm your model number matches your existing equipment before ordering.
