Hayward TigerShark QC Robotic Pool Cleaner W3RC9990CUB Parts & Diagram

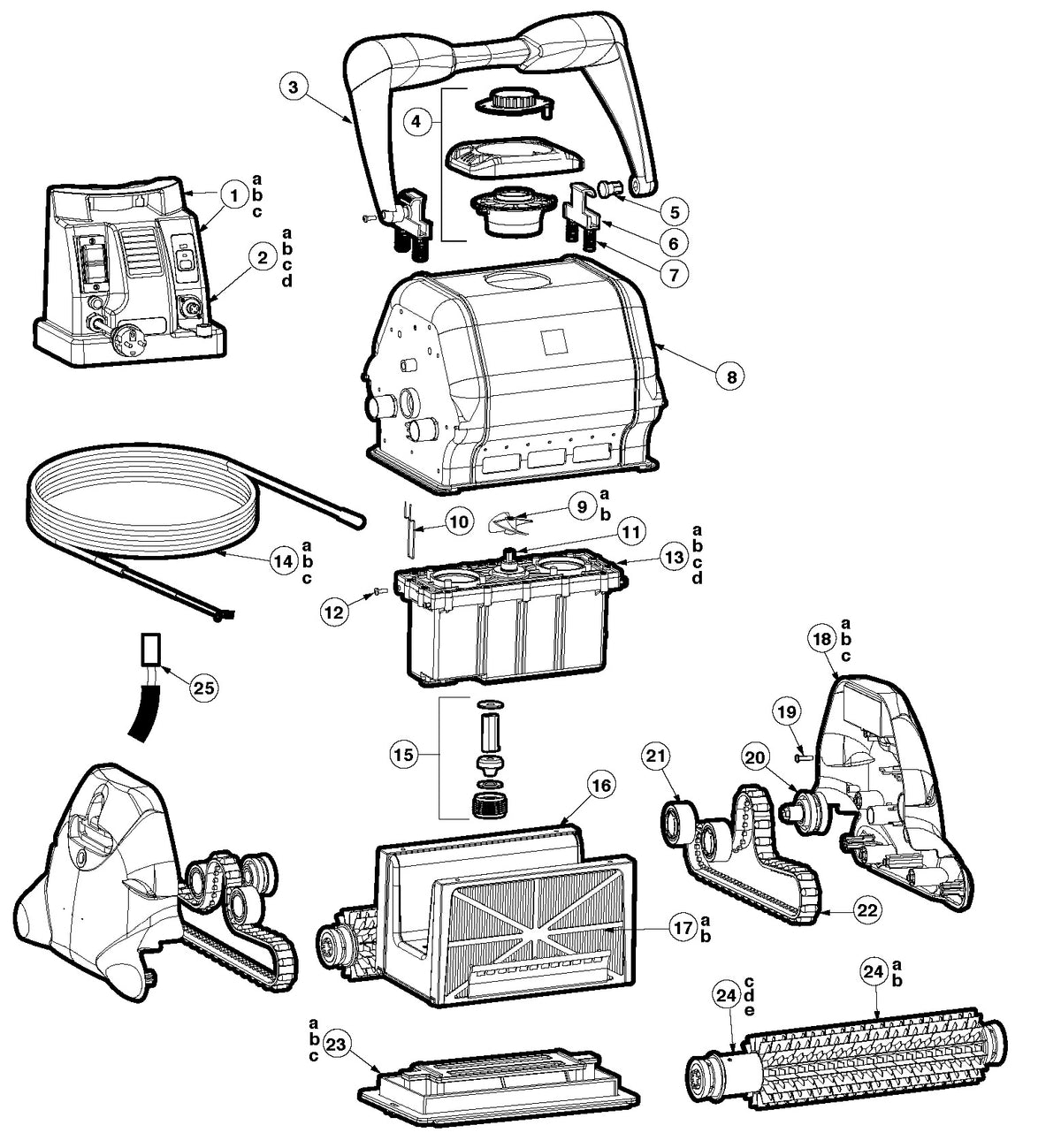

Replacement parts and exploded parts diagram for the Hayward TigerShark QC Robotic Pool Cleaner (model W3RC9990CUB). Find the part on the diagram, then look for the same number (#) next to each part in the Available Parts list and add the parts you need to your cart.
Parts marked Alternate are compatible replacements from other manufacturers.
Other Parts on This Diagram
These parts are not listed for online purchase. Contact us with the diagram number and part number to order.
- #1b – RCX30000RC – 110V Tigershark Power Supply (110 VAC; TigerShark Plus )
- #2a – RCX31013A – Circuit Breaker 3A PS
- #2b – RCX31012 – Switch 16A Power Supply
- #4 – RCX11208BK – Tigershark Black Venturi Assy (Black )
- #5 – RCX14000 – 10/CS Tigershark Handle ARM Slide
- #6 – RCX14100 – Tigershark Handle Latch
- #7 – RCX12100 – 10/CS Tigershark Spring Handle Latch
- #9a – RCX11000 – Tigershark Impeller
- #9b – RCX12002 – M4X2 Tigershark Screw (5 included in pack )
- #12 – RCX12001 – 5/SET M5X12 T-20 Torx PAN Head Screw (5 included in pack )
- #13a – RCX40000D – Motorbox 110VAC Upgrade Kit 4H (Upgrade Kit for TigerShark AC )
- #13d – RCX40000RC – Comm Robt Clnr Motor Unit 4HR Assy Remote (4 hr. for TigerShark Plus DC )
- #14b – RCX50110 – 100' TIGERSHARK2 Floating CD Assy 100' Cord (100 ft.; TS2 )
- #14c – RCX50070 – Tigershark Plus 55' Floating Cord Assy (55 ft.; TS Plus )
- #18a – RCX13220TS-237 – 2/SET R+L Tigershark Side Cover (TS; Right and Left )
- #18b – RCX13220TSP-237 – 2/SET R+L Tigershark Plus Side Cover (TS Plus; Right and Left )
- #18c – RCX13220TSQC237 – GRY TS/ QC Side Cover SET (TSQC; Right and Left )
- #19 – RCX12011 – M5X12 T-20 Torx PAN Head Screw
- #22 – RCX23002 – Tiger Shark Drive Track
- #22 – RCX23002 – Tigershark Soft Tread Drive Track
- #24a – RCX26008 – Tigershark Roller Brush
- #24e – RCX3406 – Tigershark Wheel Tube Screws (10 included in pack )
- - – RCX97500GR – Kit-Upgrade SV Drive System
- - – RCX17000 – Tigershark High Velocity Inlet
- - – RCX11206 – 10/CS Tigershark Restrictor Plate Kit TS EX
- - – RCX11207 – 5/CS Tigershark NEW Style Restrictor Plate
- - – RCX40209 – Tigershark Hand-Held Wireless Remote (2007 and Prior; 418 MHz )
- - – RCX40215 – 10/CS Tigershark Hand-Held Wireless Remote (2008 - present; 433 MHz )
- - – RCX42000 – Tigershark Plus Remote Solenoid Assy (TS Plus )
Please confirm your model number matches your existing equipment before ordering.
